GTX1 3 Inch High Compression Super Bullet
Tweeter with 1 Inch Titanium VC and Neodymium Magnet
Owner’s Manual
GTX1 3 Inch High Compression Super Bullet Tweeter with 1 Inch Titanium VC and Neodymium Magnet
GTX1
 |  |
SPECIFICATIONS
Nominal Diameter …………………………………………… 3”
Nominal Impedance…………………………………. 4 ohm
AES Power Handling ……………………………………..60W
Program Power Handling ………………………………..120W
Peak Power Handling ……………………………………240W
Sensitivity (1w/1m) ………………………………..98dB

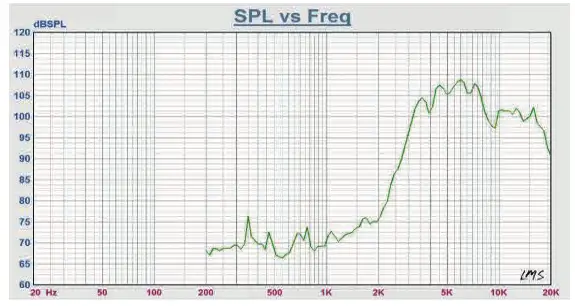

Frequency Response ……………………… 3K -20KHz
Recommended Hi Pass Crossover ……………………..3KHz
MOTOR
Voice Coil Diameter……………………………………1″ / 25.4mm
VC Former Material …………………………………… Kapton
Winding Material ……………………………………KSV
Diaphragm Material ………………….. Titanium
Magnet Material …………………………………Neodymium
Body Material ………………………………… Aluminum

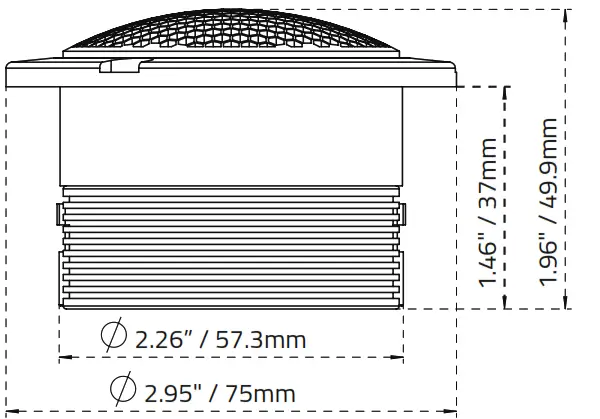

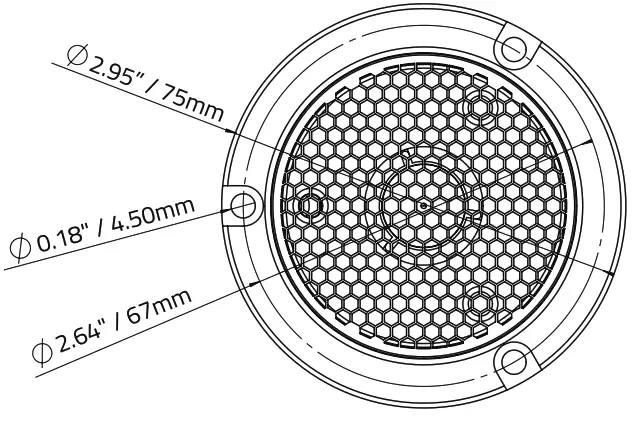

MEASUREMENTS
Overall Diameter ………………………………………2.95” / 75 mm
Overall Depth……………………………. 1.96” / 49.9 mm
Front Mount Baffle Cutout…………………………….. 2.26″ / 57.3 mm
Mounting Depth ……………………………………….1.46″ / 37 mm
FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
