OWNER’S MANUAL
TX1
2” DIAMETER 0.5” VC

AVAILABLE IN RED (TX1R) OR SILVER (TX1S)

TX1

Specifications

Nominal Diameter………………………………………………………….2″
Nominal Impedance ……………………………………………4 ohms
AES Power Handling ……………………………………25 Watts
Program Power Handling ……………………50 Watts
Peak Power Handling………………………………200 Watts
Sensitivity (1w/1m) ………………………………………….88dB
Frequency Response ………………………….2KHz-20KHz
Recommended Hi Pass Crossover
Paso Alto Recomendado………………………………………………..3KHz

Motor:

VC Diameter ……………………………………………0.5″
VC Former Material ……………………………KSV
Diaphragm Material……………………..PEI Dome
Magnet Material …………………………………..Ferrite
Body Material ……………………………………….Plastic

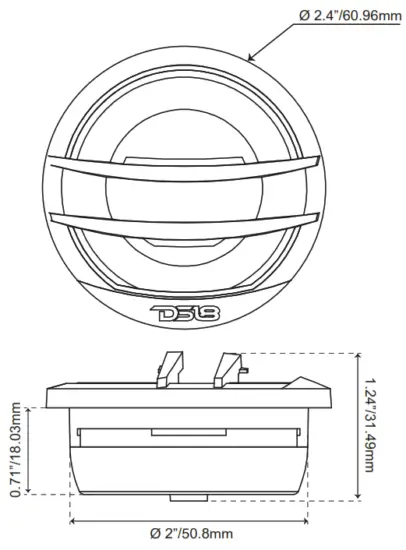

Measurements

Overall Diameter …………………………………………….2.4”/60.96mm
Overall Depth …………………………………………1.24”/31.49mm
Front Mount Baffle Cutout ……………………..2”/50.8mm
Mouting Depth ……………………………..0.71”/18.03mm

FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
