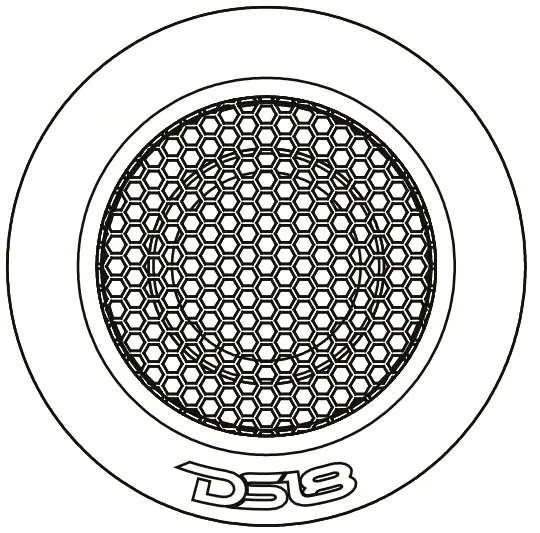

DTX
2.2″ SOUND QUALITY TITANIUM DOME TWEETER
WITH ALUMINUM BODY
OWNER’S MANUAL
 |  |
SPECIFICATIONS
Nominal Diameter …………………………………………………………………2.2” / 58 mm
Nominal Impedance ………………………………………………………………4 OHMS
AES Power Handling ……………………………………………………………15 Watts
Program Power Handling …………………………………………………….30 Watts
Peak Power Handling …………………………………………………………..60 Watts
Sensitivity (1w/1m) ……………………………………………………………. 95.2 dB

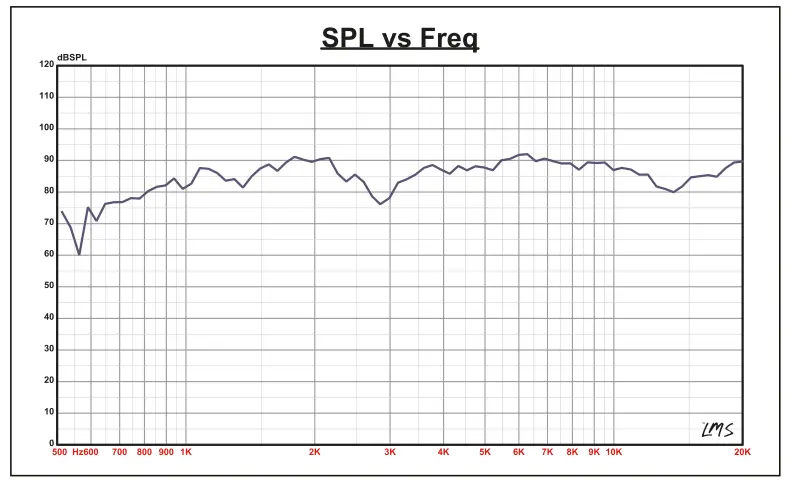

Frequency Response …………………………………………………………. 900 Hz – 20 kHz
Recommended Hi Pass Crossover …………………………………….. 3.8 kHz
BODY | FEATURES
Pair or Single…………………………………………………………………………………….Pair / Par
Body Material o……………………………………………………………………………. Aluminum / Aluminio
Body Color …………………………………………………………………………………..Silver / Plata
MOTOR
Voice Coil Diameter …………………………………………………………………. 1” / 25.4 mm
Voice Coil Former Material ………………………………………………………KVC
Winding Material ……………………………………………………………………… CCA
Diaphragm Material ………………………………………………………………..Titanium / Titanio
Magnet Material ……………………………………………………………………… Neodymium / Neodimio

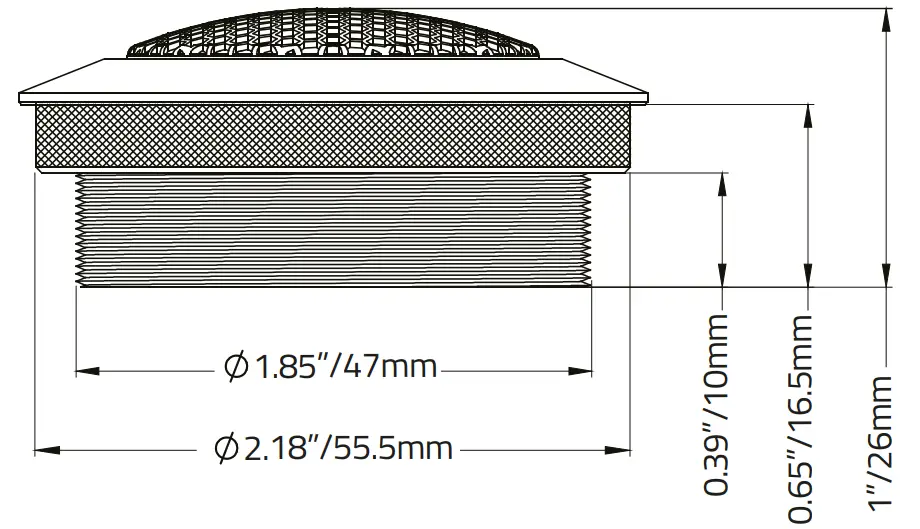

MEASUREMENTS

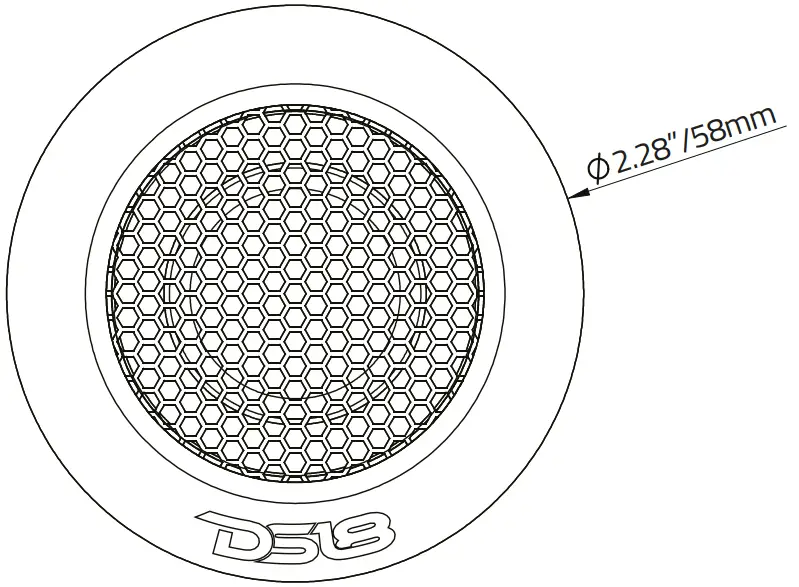

Overall Diameter ……………………………………………………………………2.28”/ 58 mm
Overall Depth ………………………………………………………………………… 1”/ 26 mm
Front Mount Baffle Cutout …………………………………………………….1.85” / 47 mm
Mounting Depth ……………………………………………………………………. 0.65” / 16.5 mm
FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
