Esb Audio 3.25 Soft Dome Tweeter Owner's Manual

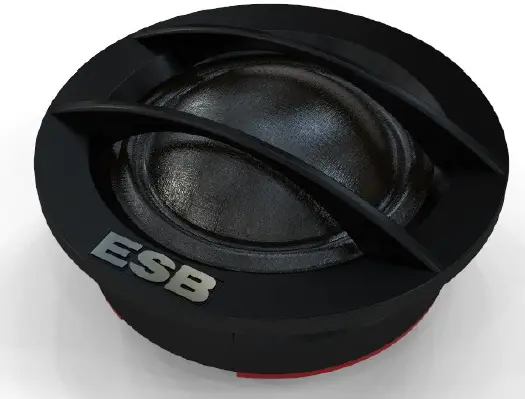

ESB AUDIO 3.25 soft dome tweeter

WHAT IN THE BOX

• 25 mm voice coil
• Nominal diameter 32.8 mm
• N42 Neodymium magnet
• Light vented aluminum former
• High module silk dome
• ABS housing with self-damping system
• Ferrofluid cooling and damping
• Computer optimized design
• Motor metal parts CNC machined
• Under dome dB Cloth® damping material
• Multi-angle dash mounting cup
• Flush or free mounting system

The tweeter has a silk-impregnated thin fabric dome diaphragm for a smooth sound, with an outer suspension covered with a high-loss damping material to eliminate edge vibration and resonance. The dome is of extremely low mass and is much less susceptible to mechanical deformation than other models, yet it provides a smooth, linear and very extended response.
The 25 mm voice coil has aluminum support and very light copper-coated aluminum wire. The coil is ventilated and damped with iron-fluid oil. The special SVS ventilation design provides two benefits: optimal cooling of voice coil and avoiding compressing the air at the back of the dome. Neodymium N42 magnet, a type of magnet with significantly higher performance than the classic “standard” ones, is optimized with computer simulations to get better efficiency and improve linearity.

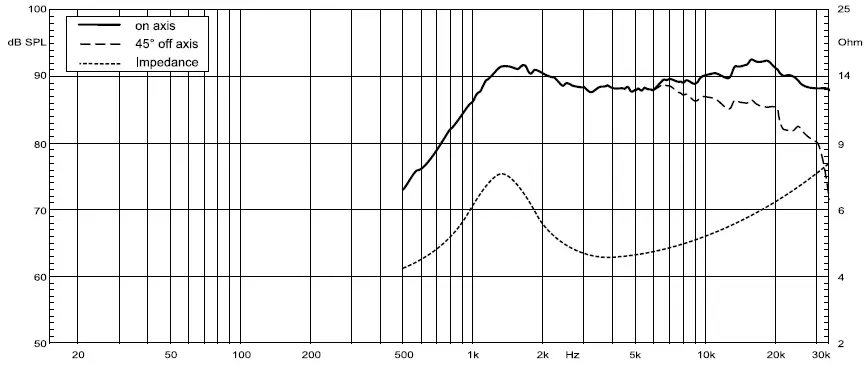

SPECIFICATION
