CXT
1.92″ SILK DOME TWEETER WITH
1″ VOICE COIL AND NEODYMIUM MAGNET
4Ω
OWNER’S MANUAL

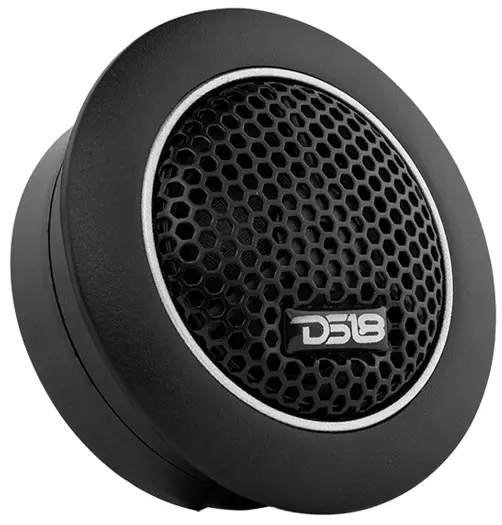

CXT 1.92 Inch Silk Dome Car Audio Tweeter
 |  |
 |  |
SPECIFICATIONS
Nominal Diameter …………………………………………..1.92″ / 49mm
Nominal Impedance ………………………………………..4 OHMS
AES Power Handling ………………………………………30W
Program Power Handling ……………………………… 60W
Peak Power Handling …………………………………….120W
Sensitivity (1w/1m) ………………………………………..87 dB
Frequency Response ………………………………………1.5K-20KHz
Recommended Hi Pass Crossover …………………3KHz
Pair ………………………………………………………………..Yes
MOTOR:
Voice Coil Diameter …………………………………… 1” / 25.4mm
Voice Coil Former Material ………………………….Aluminum.
Winding Material …………………………………………. SV
Diaphragm Material …………………………………….Silk.
Magnet Material …………………………………………..Neodymium.
Magnet Weight ……………………………………………0.33 oz / 9.6g
Body Material …………………………………………….ABS
Body Color …………………………………………………Black

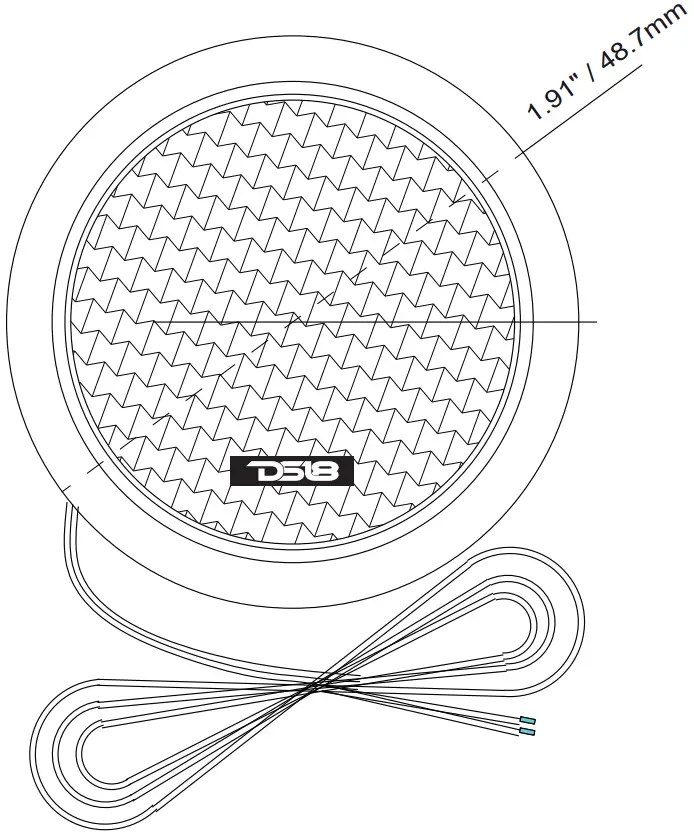

MEASUREMENTS
Overall Diameter ……………………………………….1.69″ / 43mm
Overall Depth ……………………………………………0.74″ / 19mm
Front Mount Baffle Cutout ……………………….1.92″ / 49mm
Mounting Depth ……………………………………….0.7″ / 18mm
FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
