SILGRANIT Kitchen Sink Material
Instruction Manual
SILGRANIT Kitchen Sink Material
 |  |
 |  |
OK
not OK

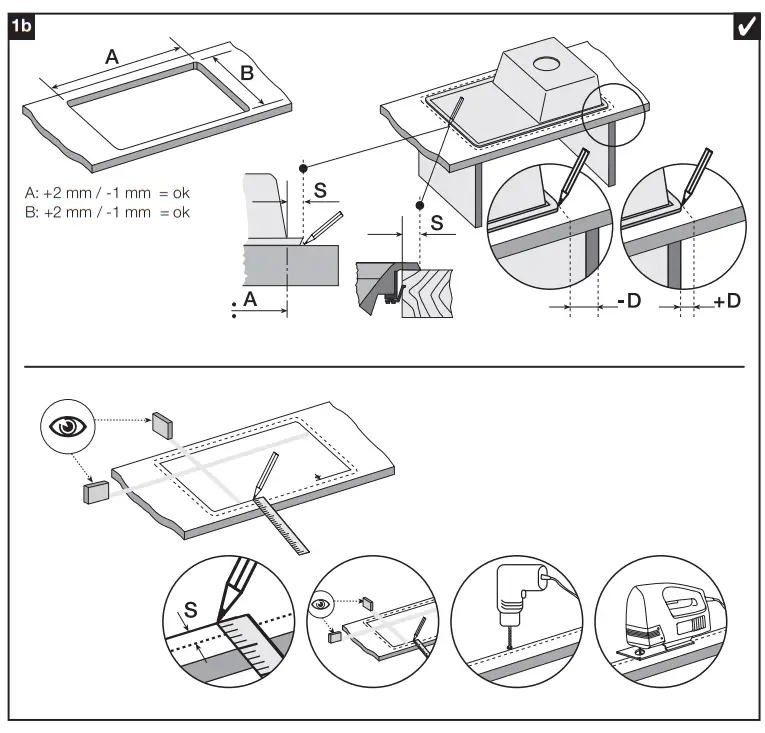

A: +2 mm / -1 mm = OK
B: +2 mm / -1 mm = OK

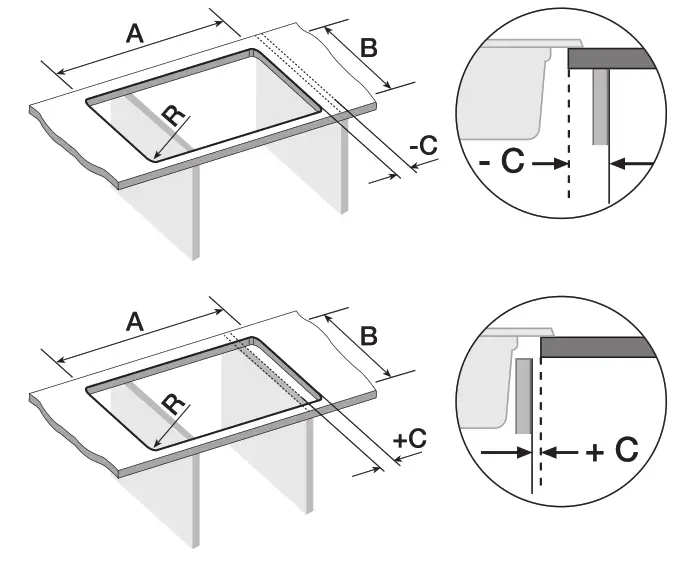

| C | D | S | +2 mm / -1 mm | R | ||
| A | B | |||||
| BLANCO RIONA 45 | +16 mm | +25 mm | 9 mm | ø 482 mm | – | – |
| BLANCO RONDO | -10 mm | +0 mm | 10 mm | ø 430 mm | – | – |
| BLANCO YOVA XL 6 S | +6 mm | +16 mm | 10 mm | 980 mm | 480 mm | 70 mm |
 |  |
BLANCO GmbH + Co KG
Technischer Kundendienst
Tel.: +49 7045 44-81 419
www.blanco-germany.com
