OWNER’S MANUAL
MANUAL DE USUARIO

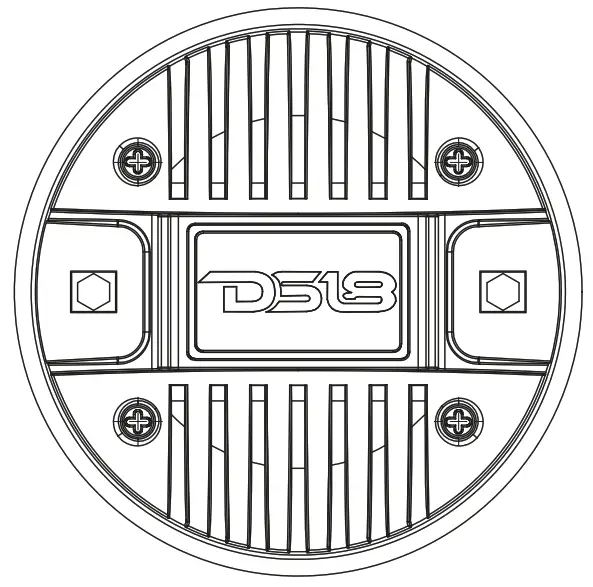

PRO-D2PH
3″ PHENOLIC VOICE COIL BOLT-ON COMPRESSION DRIVER
DRIVER DE COMPRESION PARA ATORNILLAR CON BOBINA FENOLICA DE 3″
PRO-D2PH
SPECIFICATIONS :
Throat Diameter ……………………………………………………….2″ / 50.8mm Installation
Type …..………………………………………….Bolt-On
Nominal Impedance .……………………………………………………….8 OHMS
AES Power Handling .………………………………………………….200W
Program Power Handling ..…………………………..400W
Peak Power Handling ……………………………………………800W
Sensitivity (1w/1m)………………………………………………………109 dB

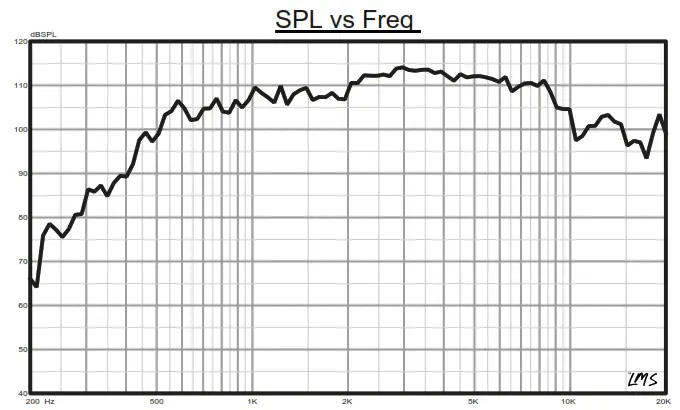

Frequency Response .………………………………….500Hz – 10KHz
Recommended Hi Pass Crossover …………………..800 Hz
MOTOR
Voice Coil Diameter ………………………………….3″ / 76.2mm
Voice Coil Former Material …………………………..Kapton
Winding Material ..……………………………………Aluminum
Diaphragm Material.…………………………………Phenolic
Magnet Material ………………………………………………………Ferrite
Magnet Weight ……………………………………………………………………………65 oz
Body Material ….…………………………………………..Aluminum
Body ColorColor de Carcasa..……………….Black Aluminum / Machined

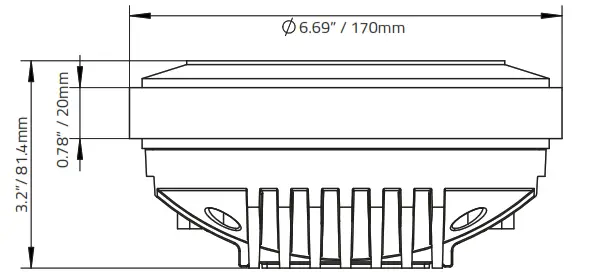

MEASUREMENTS :
Overall Diameter …………………………………………………………6.69″ / 170mm
Overall Depth ……………………………………………………………..3.2″ / 81.4mm

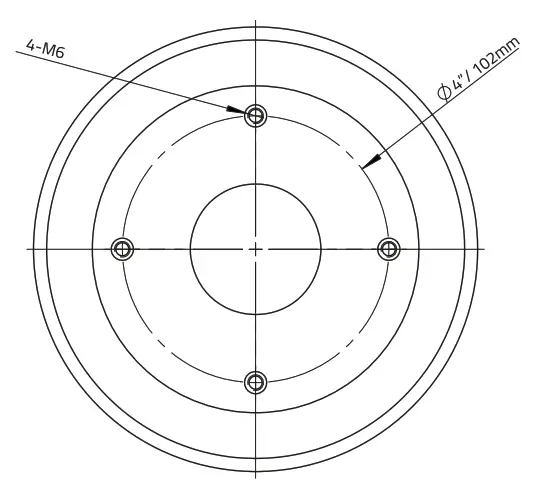

Bolt Pattern Type ………………………………………………………….4*M6
FOR MORE INFORMATION
PLEASE VISIT DS18.COM
