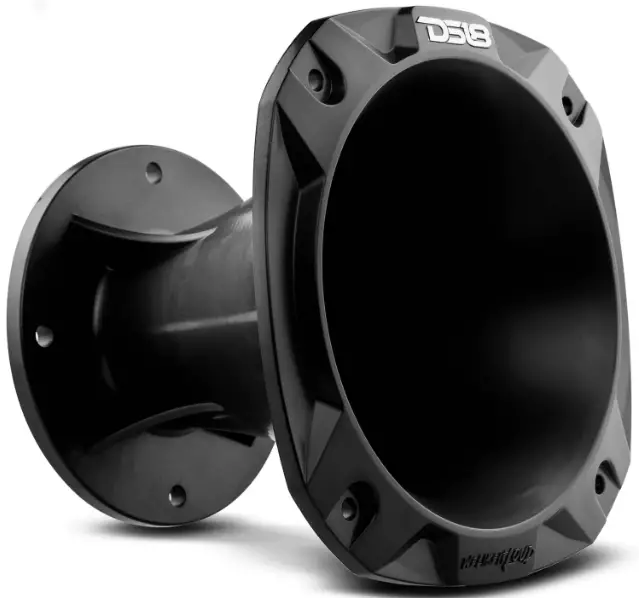

DS18 PRO-HP102 ABS Horn for Compression Driver Owner’s Manual

SPECIFICATIONS

FEATURES

• Nominal Diameter: 6.5” /165 mm
• Throad Diameter: 2″ / 50.8mm
• Installation Type: Bolt-On
• Sound Coverage: 35° Rounded
• Body Material: Plastic ABS

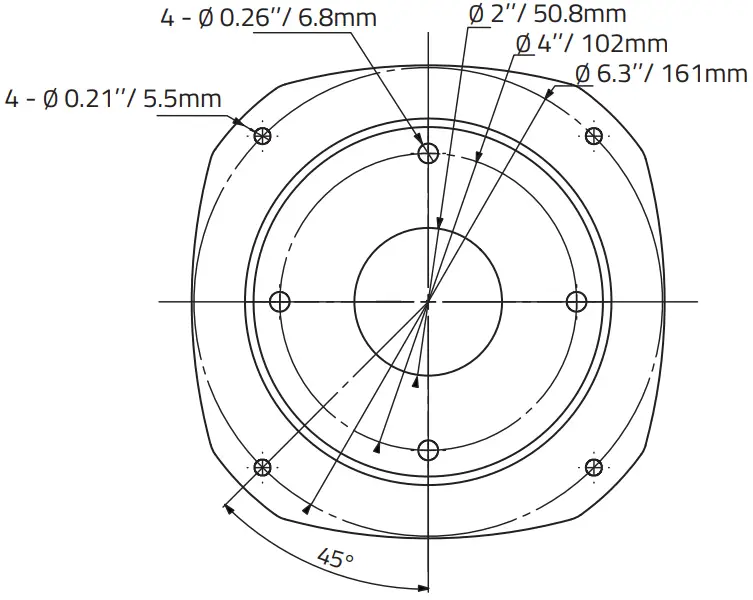

MEASUREMENT

• Overall Diameter: 6.4″ / 162.5 mm
• Overall Depth: 5.17″ / 131.5 mm
• Mounting Depth: 4.8″ / 122 mm
• Mounting Hole Diameter: 5.43” / 138 mm
• Bolt Pattern (Horn): 6.33” / 161 mm x 4-0.21” / 5.5 mm
• Bolt Pattern (Driver): 4” / 102 mm x 4-0.26” / 6.8 mm

COLOR AVAILABLE

• Chrome Blue Color: PRO-HP102/CBL
• Chrome Red Color: PRO-HP102/CRD
• Chrome Gold Color: PRO-HP102/CGD
• Chrome Red Color with White Inside: PRO-HP102/CRDWH

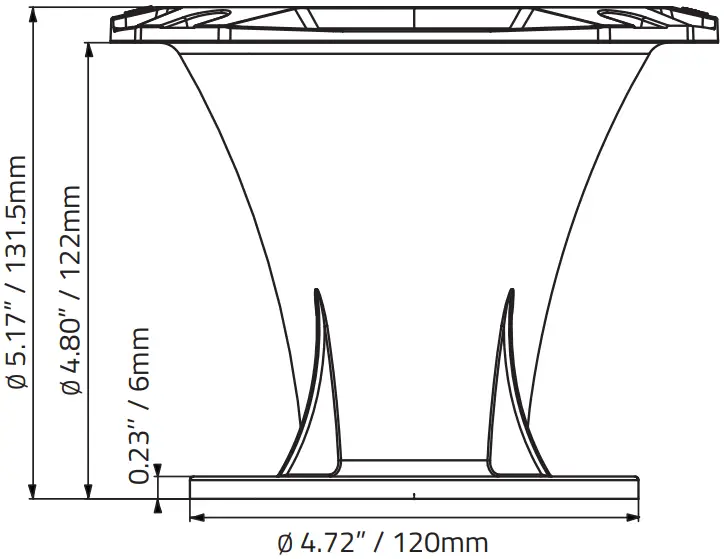

MEASUREMENT

WARRANTY

Please visit our website DS18.com for more information on our warranty policy.

We reserve the right to change products and specifications at any time without notice.
Images may or may not included optional equipment.

WARNING:
Cancer and Reproductive Harm.
www.P65Warning.ca.gov

SUPPORT

FOR MORE INFORMATION PLEASE VISIT:
DS18.COM
