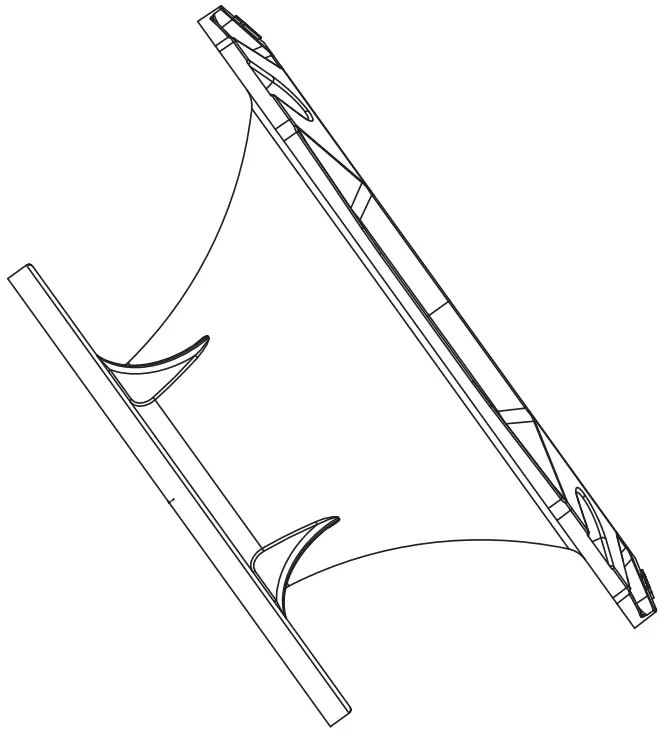

OWNER’S MANUAL
ABS SHORT HORN FOR
COMPRESSION DRIVER
WITH 2″ THROAT
SPECIFICATIONS
FEATURES
Nominal Horn Diameter ………………………………..6.5” /165 mm
Throat Diameter ……………………………………………………………… 2″ / 50.8mm
Installation Type………………………………………………………………………..Bolt-On
Sound Coverage…………………………………………………………….57° Rounded
Body Material…………………………………………………………………….Plastic ABS

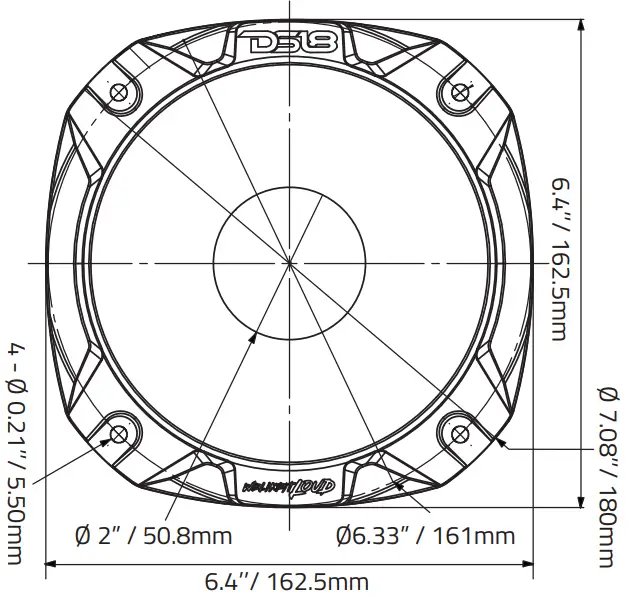

MEASUREMENT
Overall Diameter ……………………………………………………………… 6.4″ / 162.5 mm
Overall Depth……………………………………………………………… 2.96″ / 75.2 mm
Mounting Depth …………………………………………………. 2.61″ / 66.3 mm
Mounting Hole Diameter……………………………………….. 5.43” / 138 mm
Bolt Pattern (Horn) ……………………………………………… 6.33” / 161 mm x 4-0.21” / 5.5 mm
Bolt Pattern (Driver)…………………………………………………….. 4” / 102 mm x 4-0.26” / 6.8 mm
COLORS AVAILABLE
Chrome Blue…………………………………………………………………..PRO-HP52/CBL
Chrome Red…………………………………………………………………..PRO-HP52/CRD
Chrome Gold ……………………………………………………………..PRO-HP52/CGD
Chrome Red with White Inside……………………………………… PRO-HP52/CRDWH

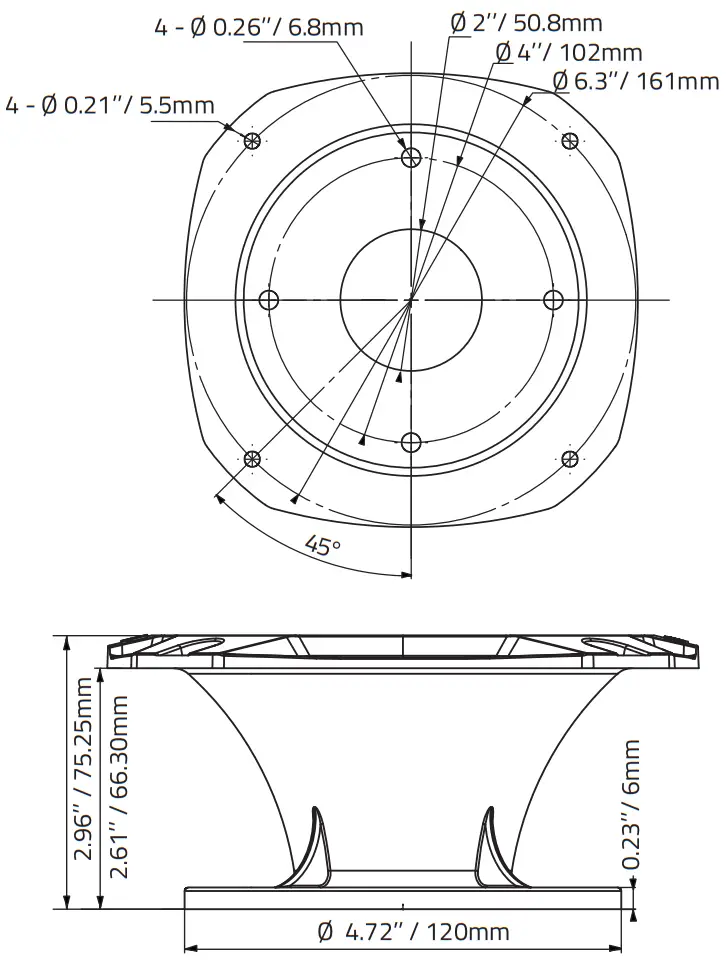

MEASUREMENTS
WARRANTY
Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice.
Images may or may not include optional equipment.
WARNING:
Cancer and Reproductive Harm. www.P65Warning.ca.gov
