DS18 PRO-HY6 6.5 HYBRID SLIM LOUDSPEAKER COMPRESSION DRIVER HORN

PRO-HY6.4MSL

SPECIFICATIONS

• Nominal Diameter
  6.5″ / 165.1mm
• Nominal Impedance
  4 ohms
• RMS Power Handling
  150 Watts
• MAX Power Handling
  300 Watts
• Sensitivity (1w/1m)
  93dB
• Frequency Response
  120Hz-20KHz
• Recommended Hi Pass Crossover
  140 Hz
• Number of Ways
  2
• Pair or Single
  Single
• Grill Included
  Yes

WOOFER SPECIFICATIONS

• Voice Coil Diameter
  1.5” / 38.6 mm
• Voice Coil Former Material
  KSV
• Winding Material
  CCAW
• Cone Material
  Paper / Papel
• Surround Material
  Cloth / Tela
• Basket Material
  Steel / Hierro
• Basket Color
  Glossy Red
• Magnet Material
  Ferrite
• Magnet Weight
  17.5 Oz

THIELE & SMALL PARAMETERS

• Equivalent Volume
  3.21L / 0.11ft3
• Excursion (one way)
  2mm
• Free Air Resonance
  160Hz
• Mechanical Factor
  8.12
• Electrical Factor
  1.245
• Total Factor
  1.086
• Mechanical Mass
  7.452g
• Mechanical Compliance
  182.236 mm/N
• BL Factor
  4.705
  Voice Coil Inductance
  16.78mH
• Cone Area
  136.848 Cm2
• DC Resistance
  3.2 ohms
• Mechanical Mass w/o Air
  8.60g

DRIVER SPECIFICATIONS

• Voice Coil Diameter
  1” / 25.4 mm
• Voice Coil Former Material
  Kapton
• Winding Material
  CCAW
• Diaphragm Material
  Titanium
• Magnet Material
  Neodymium
• Horn Diameter
  3″ / 76.2mm

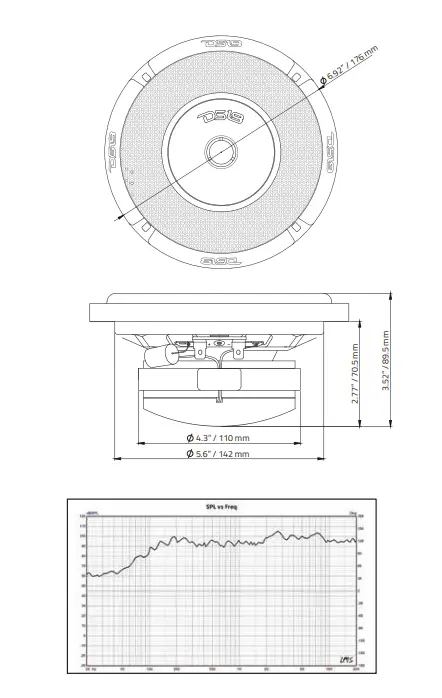

SPEAKER MEASUREMENTS

• Overall Diameter
  .6.92″ / 176mm
• Overall Depth
  3.52″ / 89.5mm
• Front Mount Baffle Cutout
  5.6″ / 142mm
• Mounting Depth
  2.77″ / 70.5mm
• Motor Diameter
  4.33″ / 110mm
