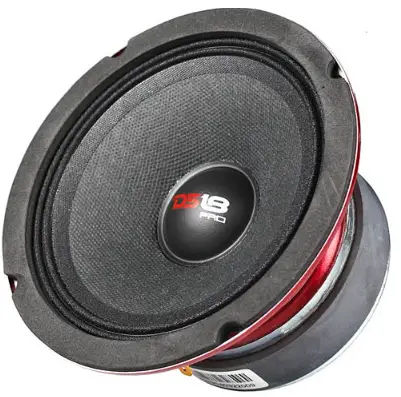

DS18 PRO-HY6MSL HYBRID SLIM LOUDSPEAKER COMPRESSION DRIVER HORN

PRO-HY6MSL

SPECIFICATIONS

• Nominal Diameter
  6.5″ / 165.1mm
• Nominal Impedance
  8 ohms
• RMS Power Handling
  150 Watts
• MAX Power Handling
  300 Watts
• Sensitivity (1w/1m)
  93dB
• Frequency Response
  120Hz-20KHz
• Recommended Hi Pass Crossover
  140 Hz
• Number of Ways
  2 Way
• Pair or Single
  Single
• Grill Included
  Yes

WOOFER SPECIFICATIONS

• Voice Coil Diameter
  1.5” / 38.6 mm
• Voice Coil Former Material
  KSV
• Winding Material
  CCAW
• Cone Material
  Paper
• Surround Material
  Cloth
• Basket Material
  Steel
• Basket Color
  Glossy Red
• Magnet Material
  Ferrite
• Magnet Weight
  17.5 Oz

THIELE & SMALL PARAMETERS

• Equivalent Volume
  3.45L / 0.121ft3
• Excursion (one way)
  Xmax
  2mm
• Free Air Resonance
  161Hz
• Mechanical Factor
  7.653
• Electrical Factor
  1.496
• Total Factor / Factor Total
  1.252
• Mechanical Mass
  6.875g
• Mechanical Compliance
  129.952 mm/N
• BL Factor
  5.621
• Voice Coil Inductance
  10.78mH
• Cone Area
  136.848 Cm2
• DC Resistance
  6.5 ohm
• Mechanical Mass w/o Air
  5.955g

DRIVER SPECIFICATIONS

• Voice Coil Diameter
  1” / 25.4 mm
• Voice Coil Former Material
  Kapton
• Winding Material
  CCAW
• Diaphragm Material
  Titanium
• Magnet Material
  Neodymium
• Horn Diameter
  3″ / 76.2mm

SPEAKER MEASUREMENTS

• Overall Diameter
  6.92″ / 176mm
• Overall Depth
  3.52″ / 89.5mm
• Front Mount Baffle Cutout
  5.6″ / 142mm
• Mounting Depth
  2.77″ / 70.5mm
• Motor Diameter
  4.33″ / 110mm
