OWNER’S MANUAL
MANUAL DEL USUARIO
PRO-68XA
6.5″ 10TH ANNIVERSARY
MID-BASS LOUDSPEAKER
ALTAVOZ DE MEDIO BAJOS
DE 6.5″ DEL
DÉCIMO ANIVERSARIO
8Ω

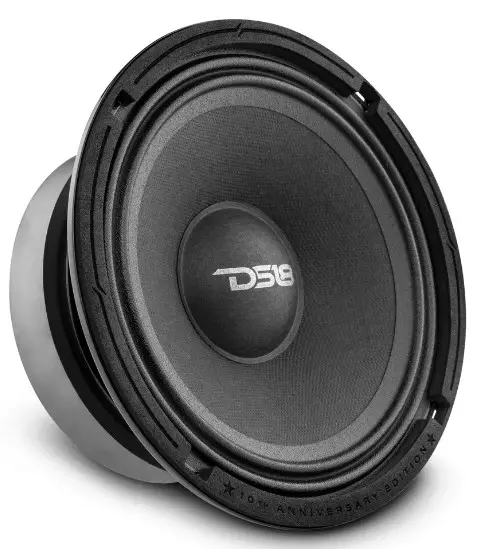

PRO-68XA 6.5 Inch 10th Anniversary Mid-Bass Loudspeaker
SPECIFICATIONS
Nominal Diameter ……………………………………………………….6.5″ / 165mm
Nominal Impedance ……………………………………………………… 8 Ohms
RMS Power Handling …………………………………………………….250W
MAX Power Handling …………………………………………………….500W
Sensitivity (1w/1m) …………………………………………………………. 96dB

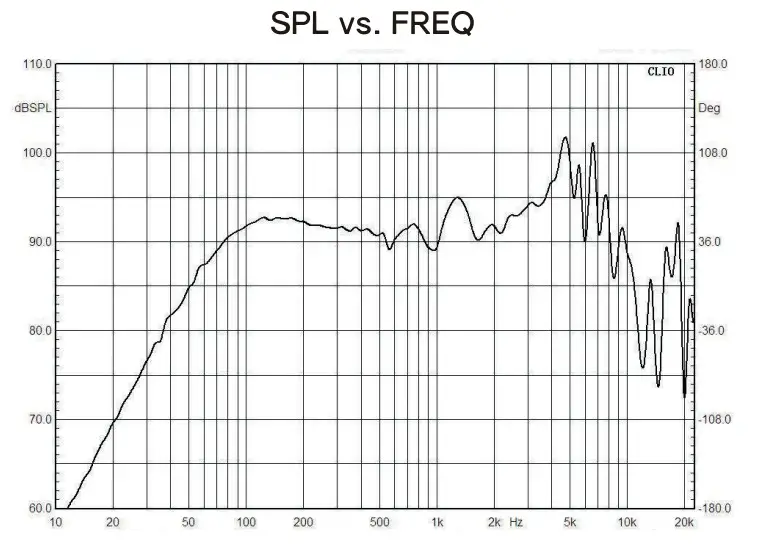

Frequency Response …………………………………………..80Hz-6.3KHz
Recommended HI Pass Crossover ……………………………. 100Hz
Pair or Single ………………………………………………………………….Single
MOTOR
Voice Coil Diameter ……………………………………… 1.5″ / 38mm
Voice Coil Former Material ……………………………… Kapton
Winding Material …………………………………………………..CCAW
Cone Material ………………………………………………… Paper
Dustcap Material ……………………………………….Paper
Surround Material ……………………………………….Cloth
Basket Material ……………………………………………. Steel
Basket Color …………………………………….. Glossy Black
Magnet Material …………………………………………..Ferrite
Magnet Weight ……………………………………………. 33 oz
THIELE & SMALL PARAMETERS
Equivalent Volume …………………………. Vas ……….3.29L / 0.11ft3
Excursion (one way) ……………………….. Xmax………………… 2.5mm
Free Air Resonance …………………….. Fs ……………………… 130Hz
Mechanical Factor …………………………. Qms ………………………7.75
Electrical Factor …………………………….. Qes………………………..1.04
Total Factor …………………………………. Qts ………………………..0.92
Mechanical Mass ………………………… Mms…………………….7.82g
Mechanical Compliance …………….Cms……………. 0.12mm/N
BL Factor ………………………………. BL ………………………….6.81
Voice Coil Inductance …………….. Le …………………. 0.853mH
Cone Area …………………………………Sd ……………… 138.93cm2
DC Resistance …………………………… Re…………………6.07ohms

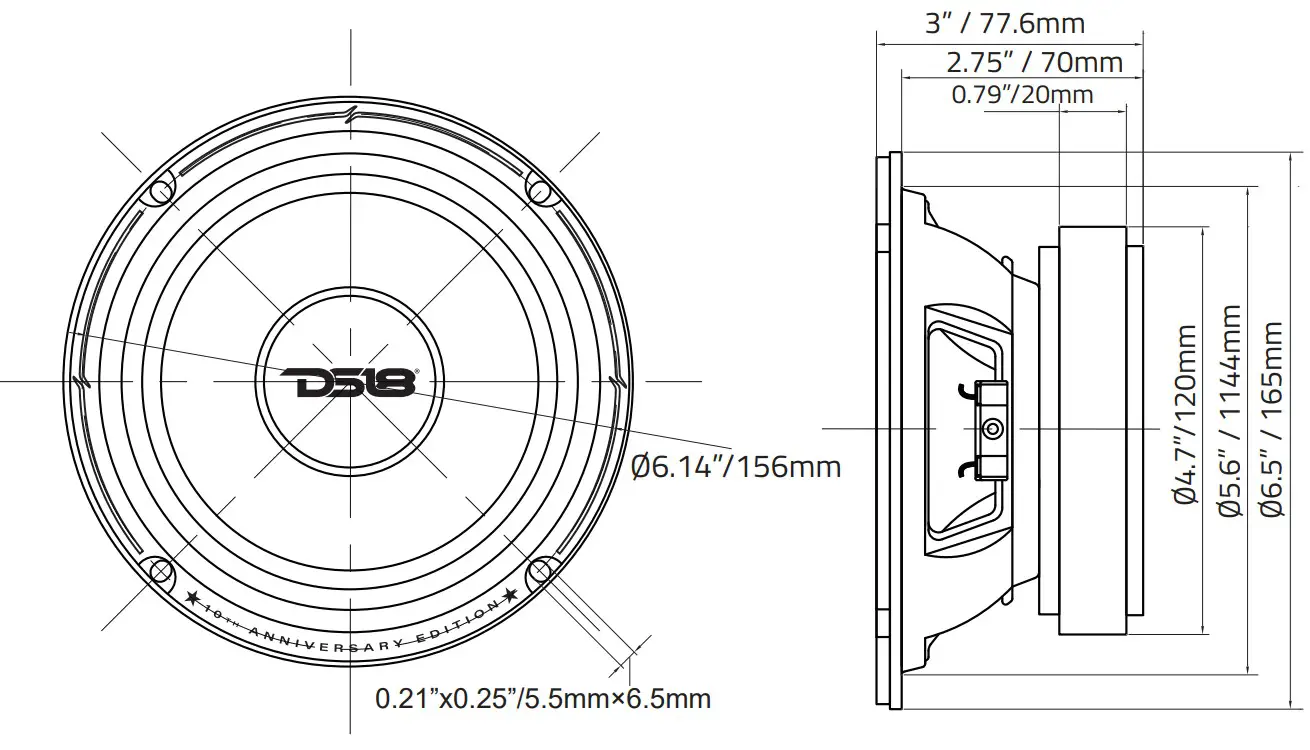

MEASUREMENTS
Overall Diameter …………………………………………… 6.5″ / 165.5mm
Overall Depth ……………………………………………….. 3″ / 77.6mm
Front Mount Baffle Cutout …………………………..5.6″ / 144mm
Mounting Depth …………………………………………….2.75″ / 70mm
Motor Diameter ……………………………………………….4.7″ / 120mm
WARRANTY
Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice. Images may or may not included optional equipment.
WARNING:
Cancer and Reproductive Harm.
www.P65Warning.ca.gov
We LIKE IT LOUD
FOR MORE INFORMATION
PLEASE VISIT DS18.COM
