OWNER’S MANUAL
MANUAL DEL USUARIO
PRO-NS6
6.5” MID-RANGE LOUDSPEAKER WITH
ULTRA SLIM NEODYMIUM MAGNET
PRO-NS6
SPECIFICATIONS
Nominal Diameter ……………………………………………………………..6.5″ / 167mm
Nominal Impedance …………………………………………………………. 8 Ohms
RMS Power Handling ………………………………………………………..150W
MAX Power Handling …………………………………………………………………….300W
Sensitivity (1w/1m)………………………………………………………………………94 dB

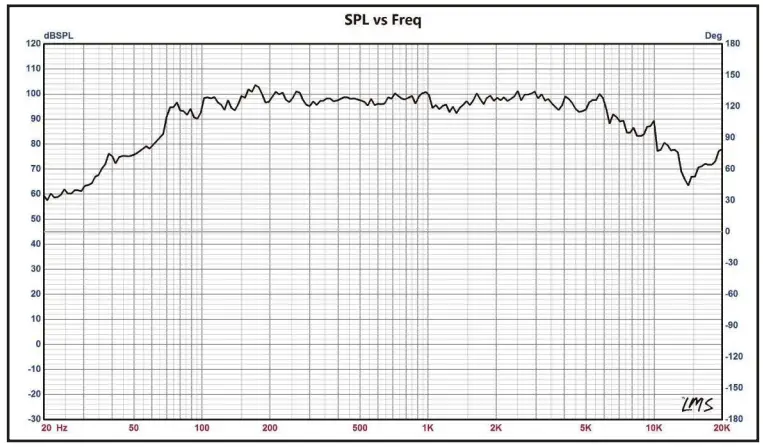

Frequency Response ……………………………………………… 100Hz – 12KHz
Recommended Hi Pass Crossover ……………………………………..180Hz
Pair or Single ………………………………………………………………………………..Single
MOTOR
Voice Coil Diameter……………………………………………………….1.5”/38.6 mm
Voice Coil Former Material ……………………………………………………. KSV
Winding Material …………………………………………………………………..Copper
Cone Material ………………………………………………………………………………… Paper
Dust Cap Material …………………………………………………… Paper
Surround Material ………………………………………………………………….. Cloth
Basket Material ……………………………………………………………………….Steel
Basket Color ………………………………………………..Glossy Red
Magnet Material …………………………………………………..Neodymium
Magnet Weight ………………………………………………………… 1.79 Oz
THIELE & SMALL PARAMETERS
Equivalent Volume ………………………………………..Vas ………………. 4.8L / 0.169ft3
Excursion (one way) …………………………………………..Xmax ……………………………. 2 mm
Free Air Resonance …………………………………….Fs ………………………………. 139 Hz
Mechanical Factor ………………………………………………….Qms ……………………………..5.781
Electrical Factor …………………………………………………….Qes………………………………..1.245
Total Factor ………………………………………………………Qts…………………………………1.025
Mechanical Mass ………………………………………..MMS ………………………….. 6.498g
Mechanical Compliance ………………………………Cms…………….192.236m cm/N
BL Factor …………………………………………BL …………………………………….5.38
Voice Coil Inductance ……………………….Le…………………………. 5.1455mH
Cone Area ………………………………………………………….Sd …………………….132.732 Cm3
DC Resistance ………………………………………………..Re …………………………… 6.5 ohms
Mechanical Mass w/o air…………………………..Mmd ………………………………..8.9g

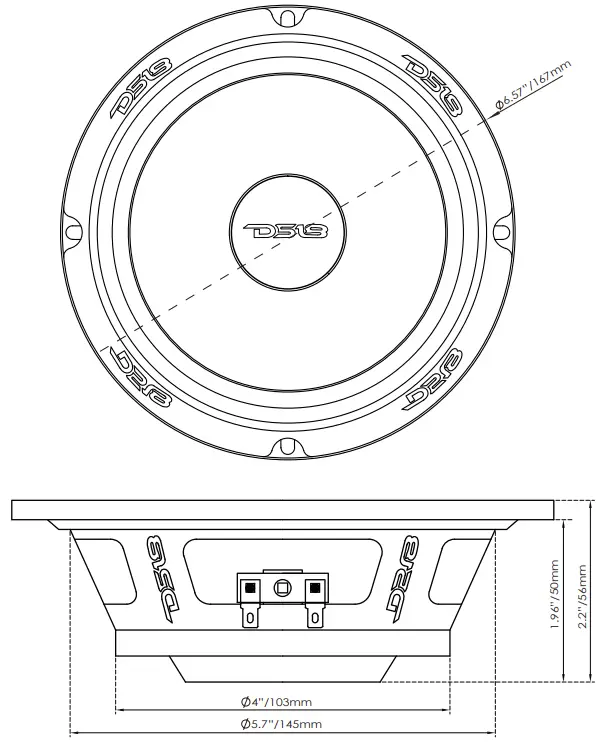

MEASUREMENTS
Overall Diameter …………………………………………………………………6.57” / 167mm
Overall Depth …………………………………………………………………. 2.2” / 56mm
Front Mount Baffle Cutout …………………………………………5.7” / 145mm
Mounting Depth ………………………………………………………………1.96” / 50mm
Motor Diameter …………………………………………………………………. 4” / 103mm
