6.5 Inch Midrange Loudspeakers
PRO-X6.4M
User Manual
500W MAX
250W RMS
4 OHMS
PRO-X6.4M 6.5 Inch Midrange Loudspeakers
Data Sheet
Specifications:
Nominal Diameter………………………………. 6.5″ (165.1 mm)
Nominal Impedance …………………………… 4 OMS
RMS Power Handling……………………………. 250 WATTS
Maximum Power Handing …………………. 500 WATTS
Sensitivity (WATM) ……………………………. G20B

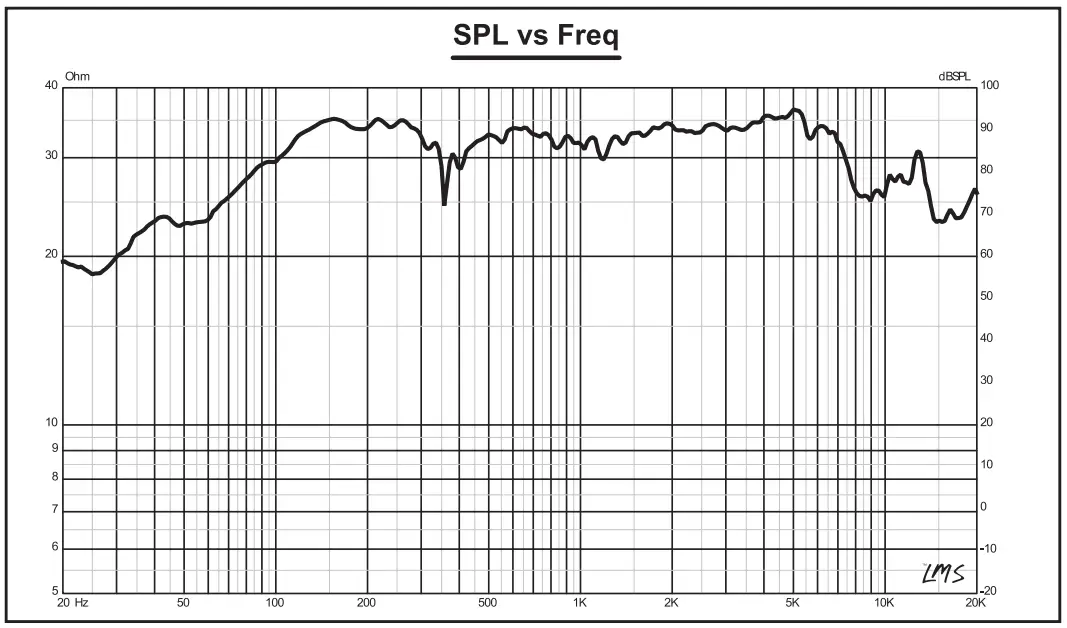

Frequency Response …………………………. 9OHZ-15KHZ
Recommended Hi Pass Crossover …….. 140 Hz
Midrange:
Voice Coil Diameter ………………………….. 1.5″ (38.1 mm)
Voice Coil Former Material ………………… Kapton
Winding Material ………………………………… CCAW
Basket Material ………………………………….. Steel
Magnet Weight …………………………………… 30 oz
Thiele & Small Parameters:
| Equivalent Volume Excursion Free Air Resonance Mechanical Factor Electrical Factor Total Factor Dc Resistance | Vas ………………………. 2.654 LTR Xmax …………………… 8.2 mm Fs………………………….. 115 Hz Qms …………………….. 9.856 Qes ……………………… 0.781 Qts ………………………. 0.678 Re ……………………….. 5.2 ohms |
Measurements:

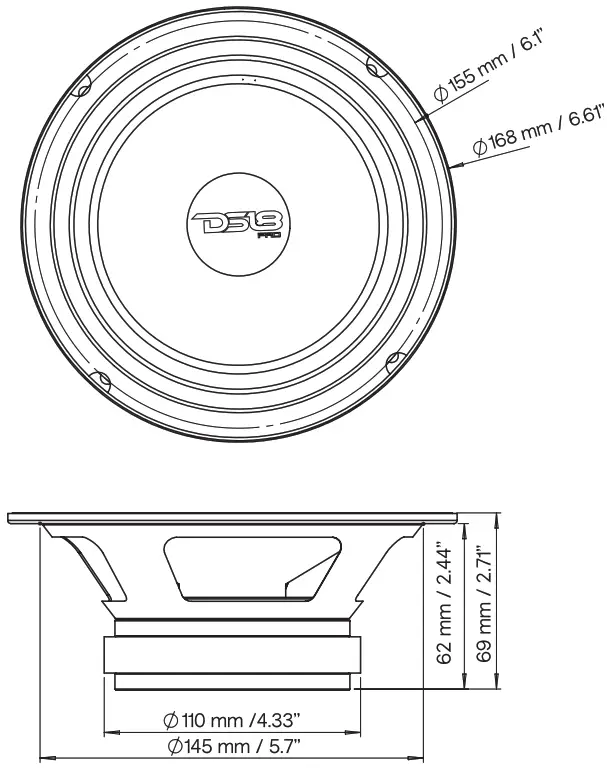

Overall Diameter …………………………………………………………. 16B MM (6.61″)
Front Mount Baffle Cutout …………………………………………. 145mm (5.70″)
Mounting depth …………………………………………………………… 62 IM 2.44″)
Overall Depth ……………………………………………………………. 69 mm (2.72”)

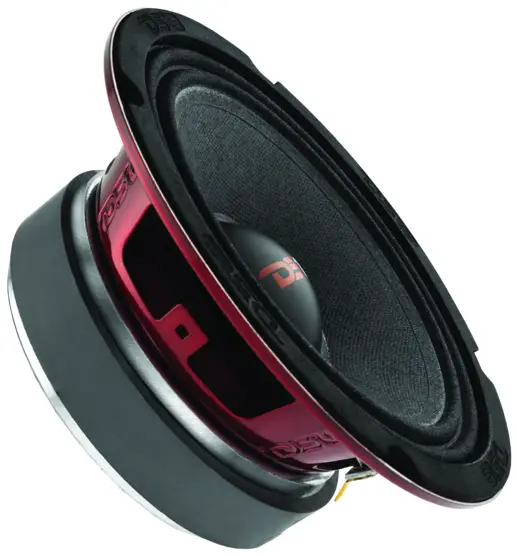

PRO-X6.4M
6.5 Inch Midrange Loudspeakers
RMS Power Handling: 250 Watts
MAX Power Handling: 500 Watts
Frequency Response: 90Hz-15KHz
Voice Coil Diameter: 1.5” (38.1 mm)
Voice Coil Material: Kapton
Nominal Impedance: 4 OHM
Sensitivity (1W/1M): 92dB
Magnet Weight: 30 oz
Magnet Material: Ferrite
Mounting Depth: 62 mm / 2.44″
