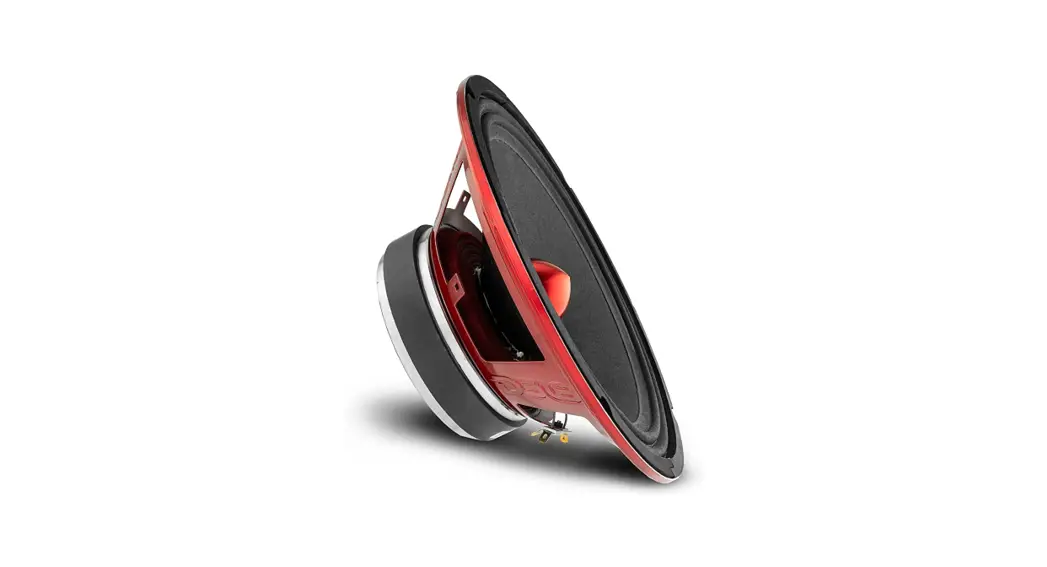

PRO-X10.4M 10-Inch Midrange Speaker
Owner’s Manual
WE LIKE IT LOUD
www.DS18.com
PRO-X10.4M 10-Inch Midrange Speaker

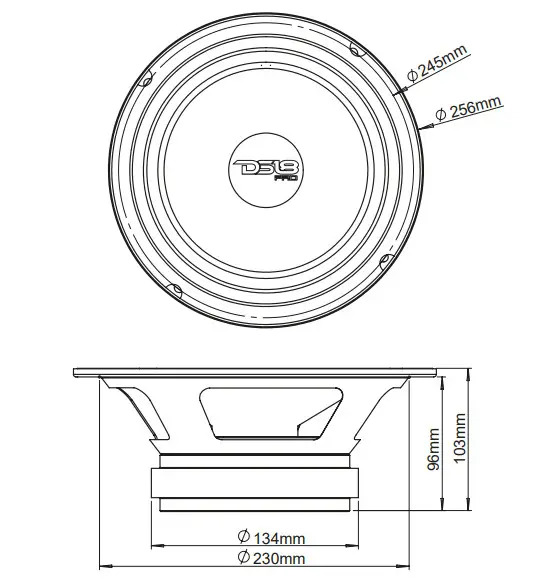

| Overall Diameter | 256mm(10.08″) |
| Baffle Cutout Diameter | 230mm(9.05″) |
| Overall Depth | 103mm(4.06″) |
| Nominal Impedance | 4Ω |
| Rms Power Handing | 300 W |
| Maximum Power Handing | 600 W |
| Sensitivity (1w/1m) | 100.2 dB |

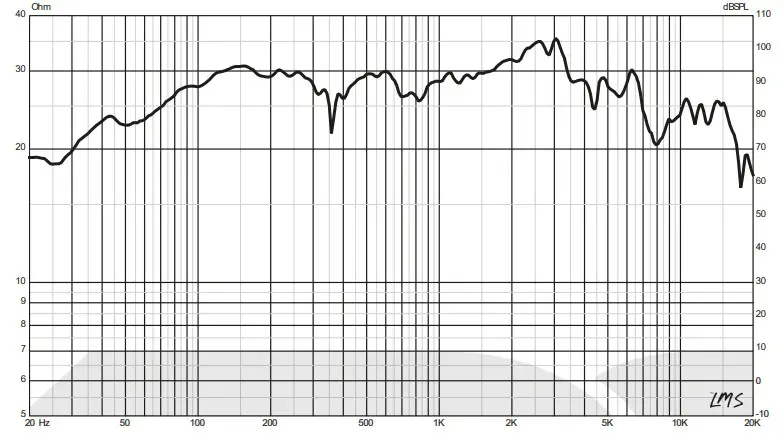

| Frequency Response | 76-6.8 kHz |
| Voice Coil Diameter | 50.8mm(2.0in) |
| Winding Material | CCAW |
| Magnet Weight | Ferrite 40 oz |
| Basket Material | Steel |
THIELE SMALL PARAMETERS
| Fs | 76.3 Hz |
| Re | 3.2Ω |
| Qes | 0.886 |
| Qms | 15. |
| Qts | 0.841 |
| Vas | 84.93dm3(0.51ft3) |
SHIPPING PACKING
| Shipping Box | 570*295*260mm/4pcs |
| Shipping Weight | 15kg |
10″ MIDRRMGE LOUDSPEAKER
RED COLOR STEEL BASKET
40 OZ HIGH STRENGTH FERRITE MIRGMET CLOTH EDGERMD M❑M-PRESSED PAPER
2.0 HIGH TEMPERATURE
600 VOICE COIL SOD WATTS MRX POWER
300 WATTS RMS POWER
IMPEDRMCE H OHMS SENSITIVITY 100.2.08
FREQUENCY RESPONSE is -6.8 kHz
WE LIKE IT LOUD
www.DS18.com
