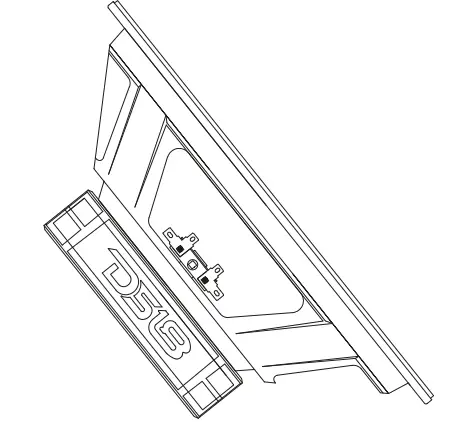

DS18 PRO-GM10 10 Inch Midrange Loudspeaker
SPECIFICATIONS
- Nominal Diameter………………………………………………………………………..10
- Nominal Impedance………………………………………………………………………..8 OHMS
- RMS Power Handling………………………………………………………………………..220 Watts
- MAX Power Handling………………………………………………………………………..660 Watts
- Sensitivity ……………………………………………………………………….. 95dB
- Frequency Response ………………………………………………………………………..4OHz-6.3KHz
- Recommended Hi Pass Crossover………………………………………………………………………..90Hz
- Pair or single ………………………………………………………………………….SIngle / Unidad
MOTOR
- Voice Coil Diameter………………………………………………………………………..2” / 50.8mm
- Voice Coil Former Material Winding Material………………………………………………………………………..Kapton
- Cone Materials………………………………………………………………………..Paper
- Dustcap Material………………………………………………………………………..Paper
- Surround Material ………………………………………………………………………..Cloth
- Basket Material………………………………………………………………………..Steel
- Basket Color………………………………………………………………………..Matte Black
- Magnet Material………………………………………………………………………..Ferrite
- Magnet Weight………………………………………………………………………..300z
THIELE & SMALL PARAMETERS
- Equivalent Volume ……………………………… Vas ……………………. 75.76L / 2.67ft3
- Free Air Resonance ………………………… Fs …………………………………………67Hz
- Mechanical Factor ……………………………………… Qms …………………………………..11.409
- Electrical Factor …………………………………………… Qes…………………………………………1.13
- Total Factor……………………………………………………… Qts ……………………………………… 1.028
- Mechanical Mass ……………………………………Mms………………………………..12.66g
- Mechanical Compliance ………………. Cms……………………….. 0.441mm/N
- BL Factor …………………………………………………………. BL ………………………………………. 5.43
- Voice Coil Inductance……………………………………………………….. Le…………………………………0.962mH
- Cone Area ………………………………………………….. Sd …………………………….349.67cm2
- DC Resistance…………………………………………….. Re…………………………………….6.2 ohm

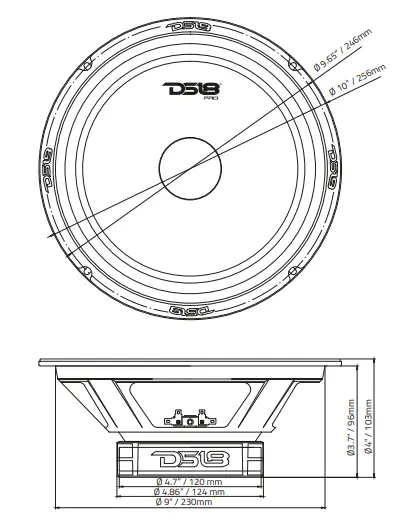

MEASUREMENTS
- Overall Diameter ………………………………………………………………………….10.1”/ 256 mm
- Overall Depth …………………………………………………………………………… 4”/103 mm
- Front Mount Baffle Cutout ……………………………………………. 9”/230 mm
- Mounting Depth …………………………………………………………………..3.7”/ 96mm
- Motor Diameter …………………………………………………………………4.72″ / 120mm
FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
