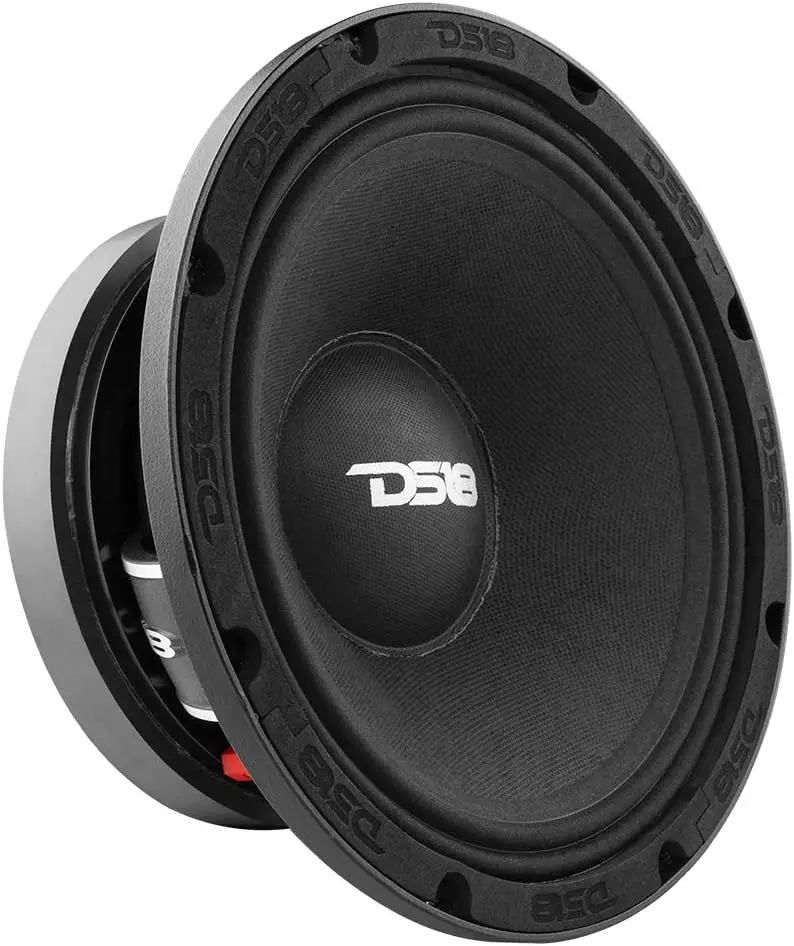

DS18 PRO-FU10.4 10 Inch Mid Range Loudspeaker Instruction Manual

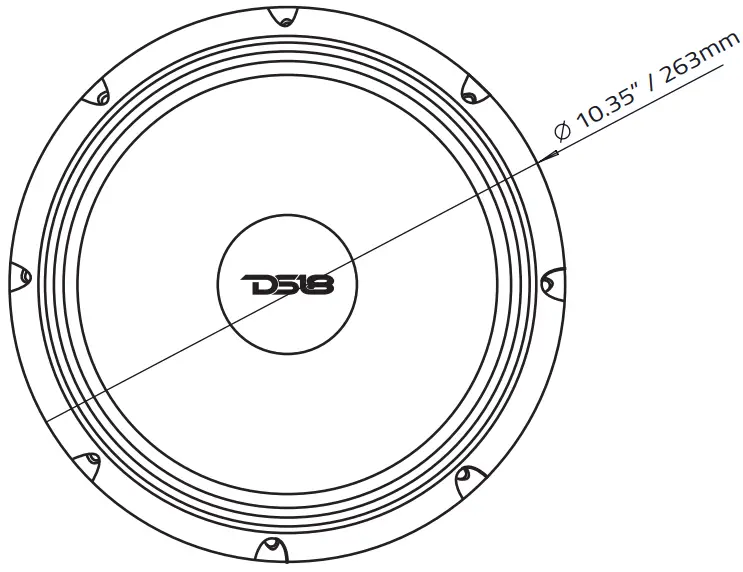

Dimension
SPECIFICATIONS
Nominal Diameter: Nominal: 10″
Nominal Impedance: 4 Ohms
RMS Power Handling: 400W
MAX Power Handling: 800W
Sensitivity (1w/1m): 96dB

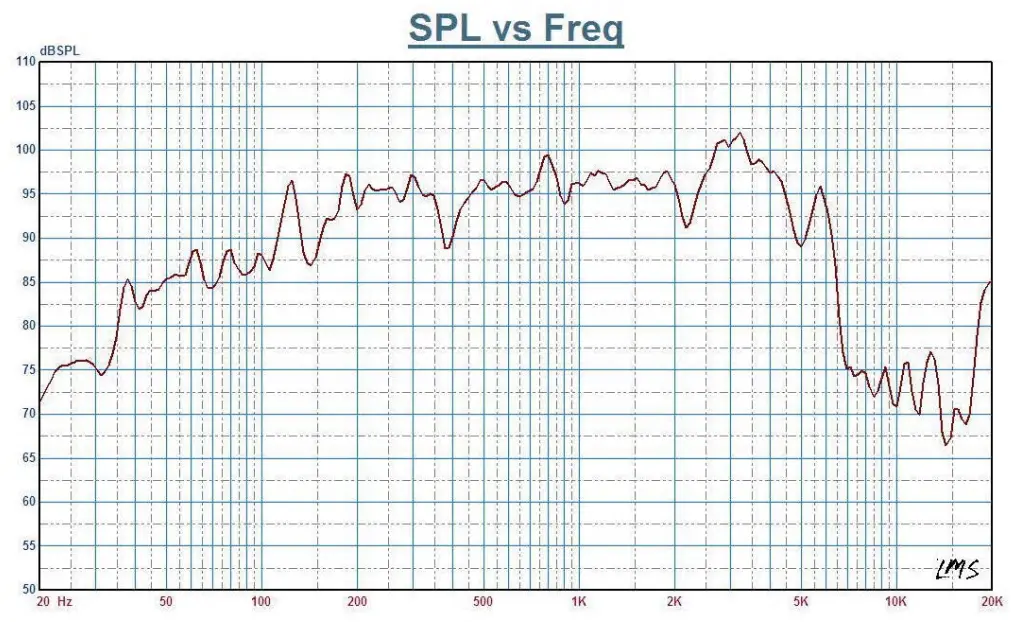

Frequency Response: 88Hz-6KHz
Recommended Hi Pass Crossover: 120Hz
Pair or Single: Single / Unidad
MOTOR
Voice Coil Diameter: 3” / 76.2mm
Voice Coil Former Material: Fiber Glass
Winding Material: CCA
Cone Material: Non-Pressed Paper
Dust Cap Material: Paper
Surround Material: Cloth
Basket Material: Aluminum
Basket Color: Matte Black
Magnet Material: Ferrite
Magnet Weight: 82 oz
THIELE & SMALL PARAMETERS
Equivalent Volume: Vas 21.936L
Excursion (one way): Xmax 5 mm
Free Air Resonance: Fs 82.954Hz
Mechanical Factor: Qms 3.21
Electrical Factor: Qes 0.473
Total Factor: Qts 0.412
Mechanical Mass: Mms 33.93g
Mechanical Compliance: Cms 110.88mm/N
BL Factor: BL 10.175
Voice Coil Inductance: Le 0.1164mH
Cone Area: Sd 373.256 cm2
DC Resistance: Re 2.8 ohm
Mechanical Mass w/o air/: Mmd 15.471g
Efficiency Bandwidth Product: Ebp 173.3

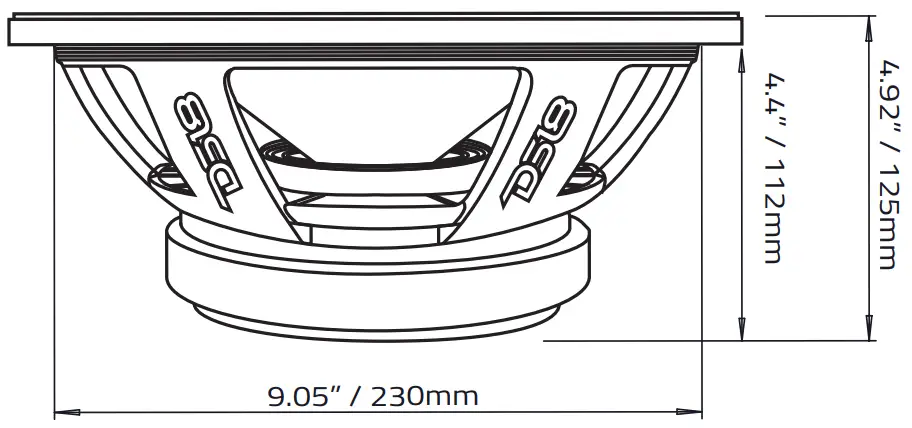

MEASUREMENTS
Overall Diameter: 10.35” / 263mm
Overall Depth: 4.92” / 125mm
Front Mount Baffle Cutout: 9.05” / 230mm
Mounting Depth: 4.4” / 112mm
Motor Diameter: 7.4” / 190mm
FOR MORE INFORMATION PLEASE VISIT
DS18.COM
