PRO-X10BM
10″ MIDRANGE LOUDSPEAKER
WITH BULLET
600W MAX ,300W RMS, 8 OHMS
USER’S MANUAL

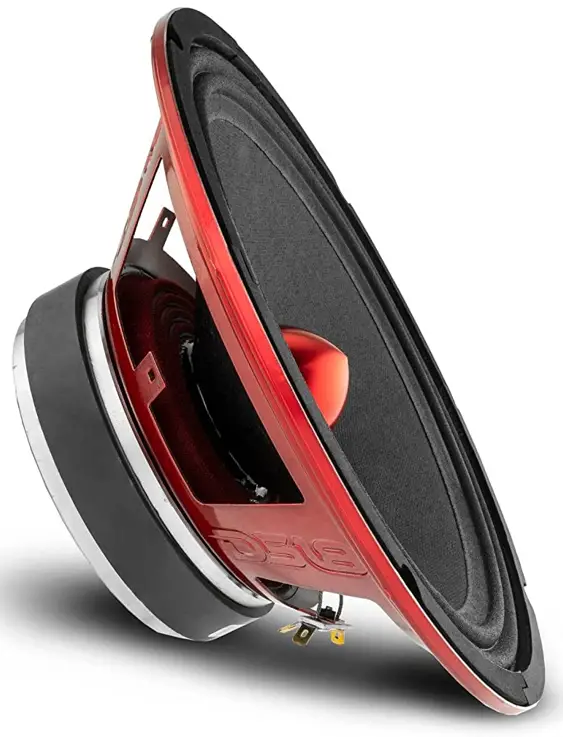

PRO-X10BM 10 Inch Midrange Speaker
PRO-X10BM
Data Sheet
Specifications:
| Nominal Diameter | 10″ / 254mm |
| Nominal Impedance | 8 ohms |
| MAX Power Handling | 600 Watts |
| RMS Power Handling | 300 Watts |
| Sensitivity (1w/1m) | 97 dB |

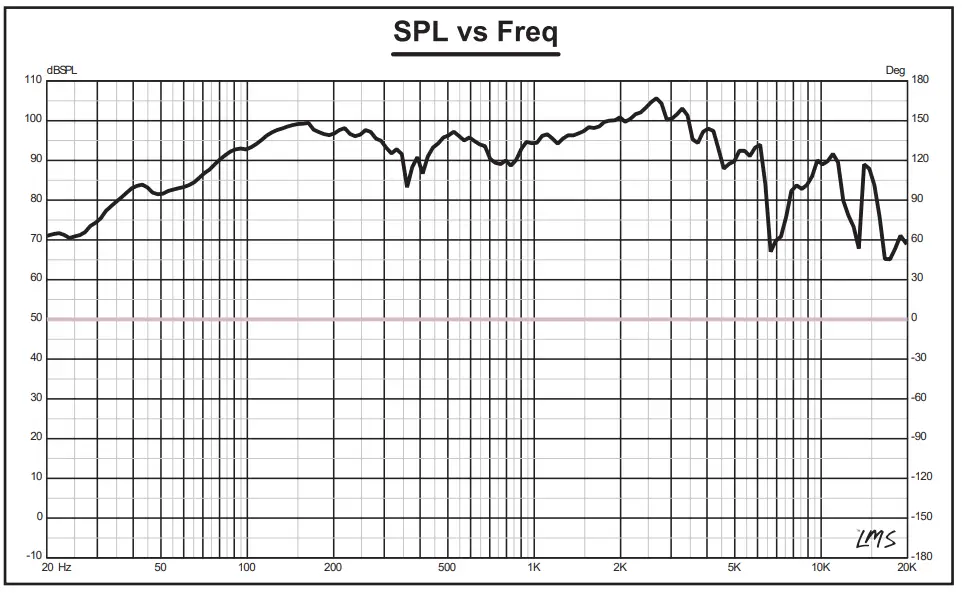

| Frequency Response | 80Hz-5KHz |
| Recommended Hi Pass Crossover | 100 Hz |
Midrange:
| Voice Coil Diameter | 2” / 50.8 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Basket Material | Steel |
| Magnet Weight | 40 oz. |
Thiele & Small Parameters:
| Equivalent Volume | Vas | 28.8L / 1.017ft3 |
| Excursion | Amax | 9.8 mm |
| Free Air Resonance | Fs | 93 Hz |
| Mechanical Factor | MS | 8,379 |
| Electrical Factor | Qis | 0.86 |
| Total Factor | Qtrs. | 0.78 |
| Dc Resistance | Re | 4.8 ohms |

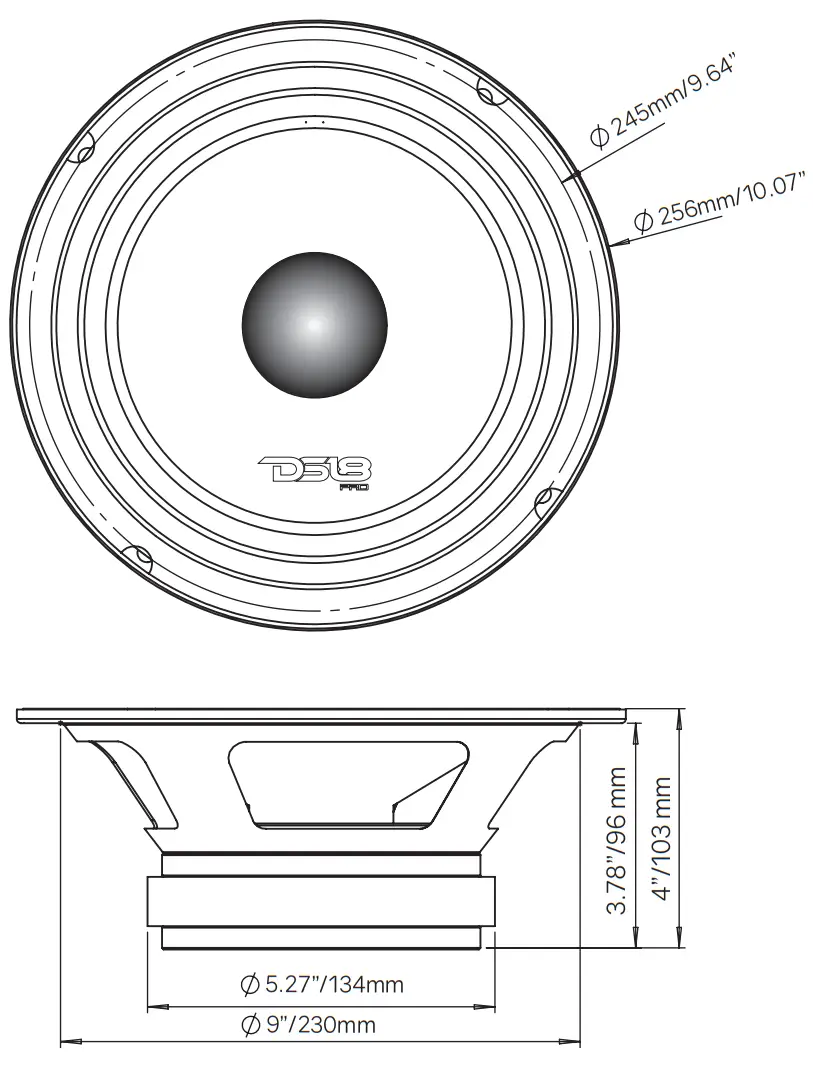

Measurements:
| Overall Diameter | 10” / 256 mm |
| Front Mount Baffle Cutout | 9” / 230 mm |
| Mounting Depth | 3.78” / 96 mm |
| Overall Depth | 4” / 103 mm |
10″ MIDRANGE LOUDSPEAKER WITH BULLET
MAX Power Handling: 600 Watts
RMS Power Handling: 300 Watts
Frequency Response: 80Hz-5KHz
Voice Coil Material: Kapton
Voice Coil Diameter: 2” / 50.8 mm
Nominal Impedance: 8 ohms
Mounting Depth: 3.78” / 96 mm
Sensitivity (1W/1M): 97 dB
Magnet Material: Ferrite
Magnet Weight:40oz
