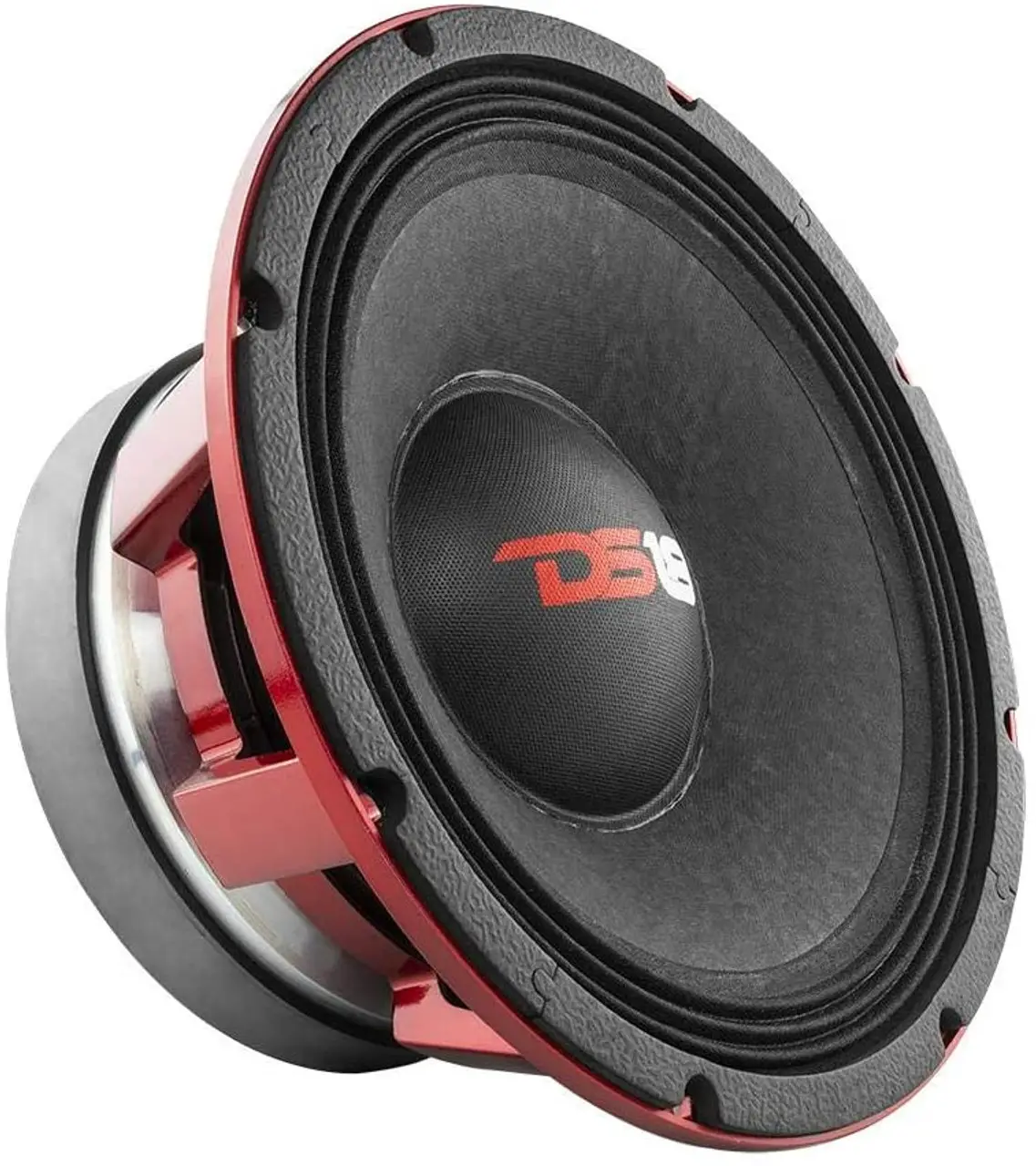

DS18 PRO-1.5KP10.4 10 Inch Competition Mid-Bass-Woofer Loudspeaker Owner’s Manual

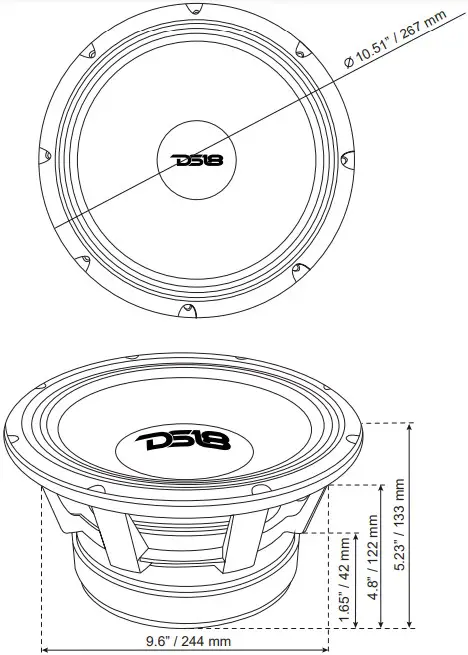

Dimension

Graph

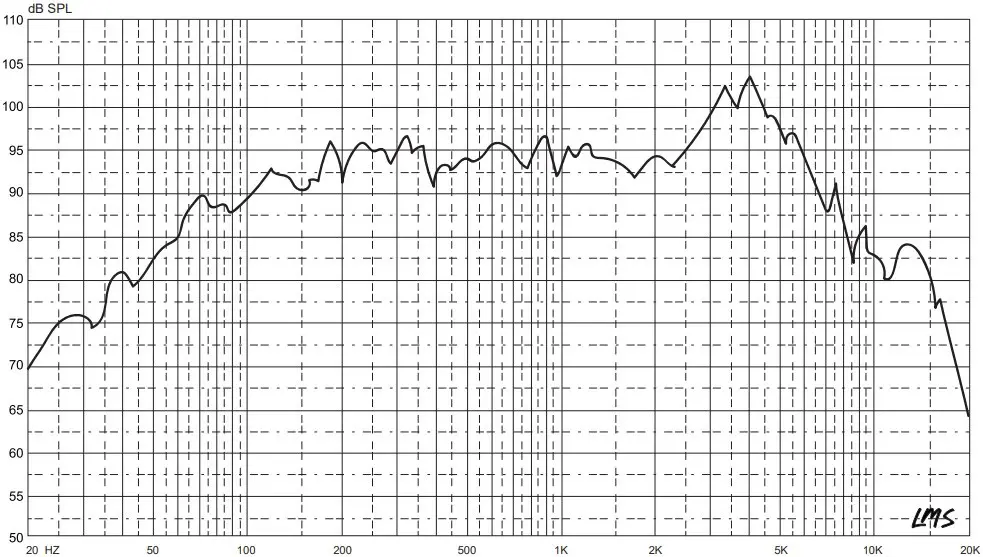

SPL vs Freq

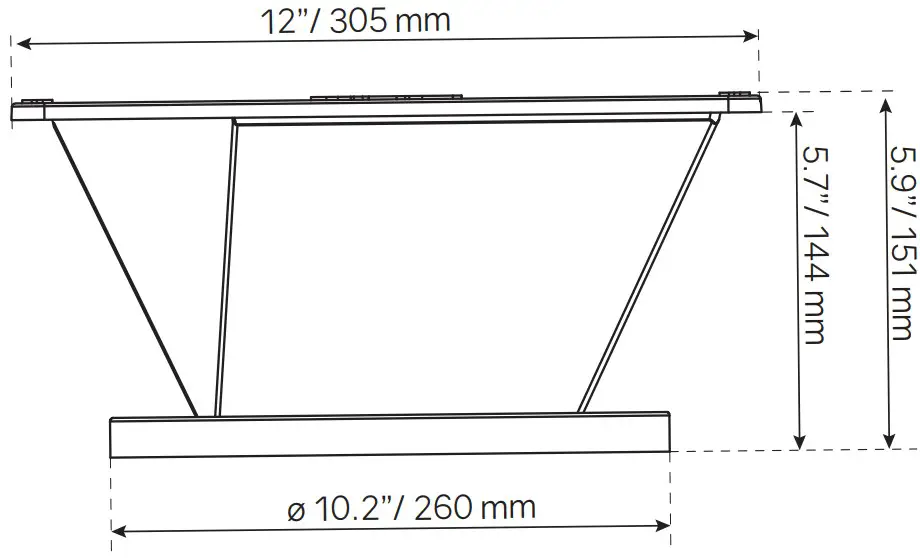

RECOMMENDED DIFFUSER

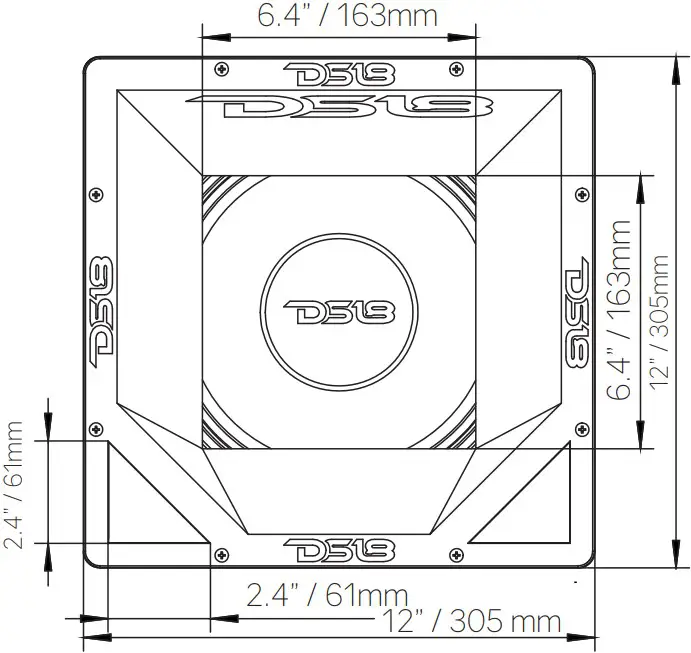

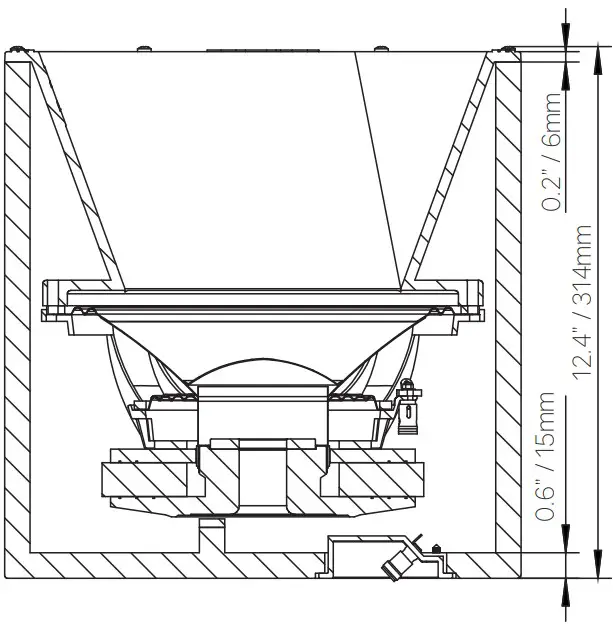

RECOMMENDED BOX

MOTOR

• Voice Coil Diameter ……………………………………………………………………………….3”
• Voice Coil Former Material …………………. Fiber Glass
• Winding Material  ……………………………………………………………………………………….. CCAW
• Cone Material ……………………………………………………………………………………….. Paper
• Dust Cap Material  ……………………………………………………………. Paper
• Surround Material  ……………………………………………………………………….Cloth
• Basket Material  ………………………………………………………………..Aluminum
• BasketColor ………………………………………………………………. Black
• Magnet Material …………………………………………………………………………………Ferrite
• Magnet Weight  ………………………………………………………………………………………………………..90 Oz

THIELE & SMALL PARAMETERS

• Equivalent Volume  ………………………………………………Vas …………………………..13.935 L
• Free Air Resonance …………………………………………Fs ………………………………….81 Hz
• Mechanical Factor ……………………………………………………….Qms ……………………………..5.622
• Electrical Factor …………………………………………………………….Qes………………………………..0.409
• Total Factor ………………………………………………………………………….Qts…………………………………0.382
• Mechanical …………………………………………………………Mms …………………………52.232g
• Mechanical Compliance ………………………………….Cms…………………..74.45 mm/N
• BL Factor ………………………………………………………………………………….BL ………………………………. 13.459
• Voice Coil Inductance  …………………………….Le……………………………….. 13.459
• Cone Area ………………………………………………………………………….Sd …………………………….363 cm2
• DC Resistance  ………………………………………………………………..Re ……………………………2.08 ohm
• Efficiency Bandwitch Product  ……………………………………………..Ebp……………………………………198

MEASUREMENTS

• Overall Diameter ……………………………………………………………………………….. 10.51” / 267 mm
• Overall Depth  ……………………………………………………………………………………5.23” / 133 mm
• Front Mount Baffle Cutout ……………………………………………..9.25″ / 235mm
• Mounting Depth  ……………………………………………………………………… 4.8” / 122 mm
• Motor Diameter …………………………………………………………………………….7.87” / 200 mm

SPECIFICATIONS

• Nominal Diameter  ………………………………………………………………………………………………10″
• Nominal Impedance ………………………………………………………………………………. 4 OHMS
• RMS Power Handling  ………………………………………………………………………..1500W
• MAX Power Handling  …………………………………………………………………………3000W
• Sensitivity (1w/1m)  ……………………………………………………………………………….. 94.4 dB
• Frequency Response  …………………………………………………………………80Hz-10kHz
• Recommended Hi Pass Crossover  …………………………………………80Hz
• Pair or Single ………………………………………………………………………………………………Single

FOR MORE INFORMATION PLEASE VISIT DS18.COM
