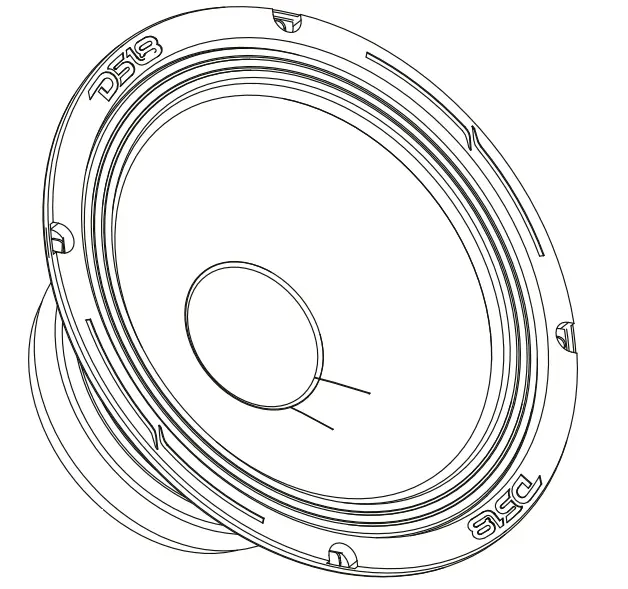

8PRO300MB-8 8 Inch Professional Mid-Bass Loudspeaker
Owner’s Manual
SPECIFICATIONS
| Nominal Diameter | 8″/ 203 mm |
| Nominal Impedance | 8 OHMS |
| RMS Power Handling | 150 Watts |
| MAX Power Handling | 300 Watts |
| Sensitivity (1w/1m) | 97 dB |

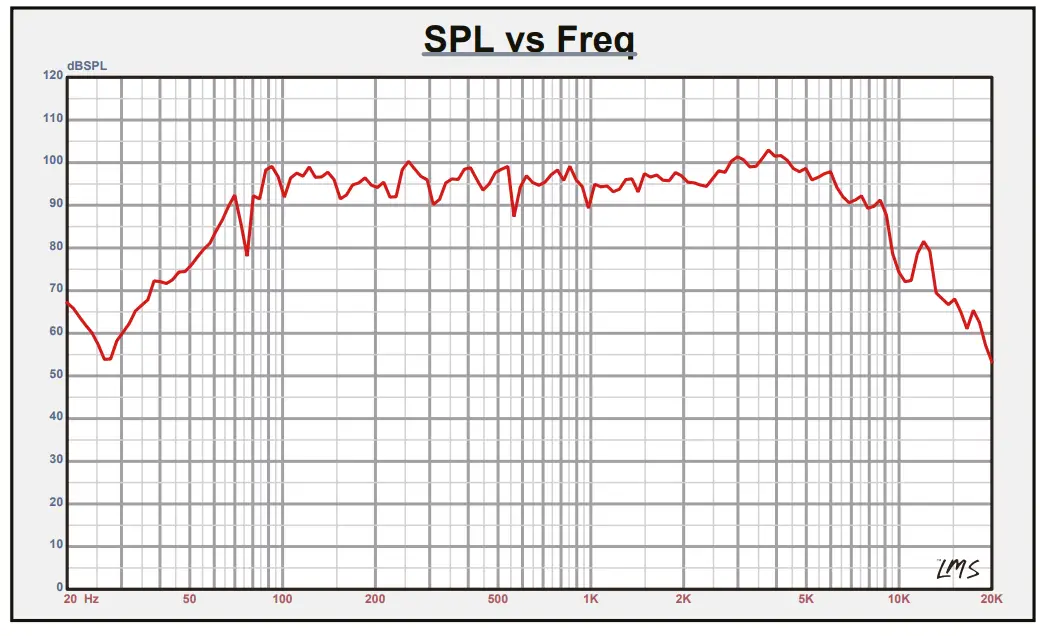

| Frequency Response | 60Hz-5KHz |
| Recommended Hi Pass Crossover | 80 Hz |
| Sold as Pair or Single | Single / Unidad |
MOTOR
| Voice Coil Diameter | 1.5″ / 38.1 mm |
| VC Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Cloth |
| Basket Material | Steel |
| Basket Color | Satin Black |
| Magnet Material | Ferrite |
| Magnet Weight | 20 Oz |
| Displacement Volume | 0.48L |
THIELE & SMALL PARAMETERS
| Equivalent Volume | Vas. | 18.18L / 0.64ft3 |
| Excursion | Xmax | 9.8 mm |
| Free Air Resonance | Fs | 80 Hz |
| Mechanical Factor | Qms | 1.92 |
| Electrical Factor | Qes | 0.53 |
| Total Factor | Qts | 0.42 |
| Mechanical Mass | Mms | 13.78 g |
| Mechanical Compliance | Cms | 0.28 mm/N |
| BL Factor | Bl. | 8.74 |
| Voice Coil Inductance | Le | 0.19 mH |
| Cone Area | Sd. | 213.82 cm² |
| DC Resistance | Re. | 5.8 ohm |

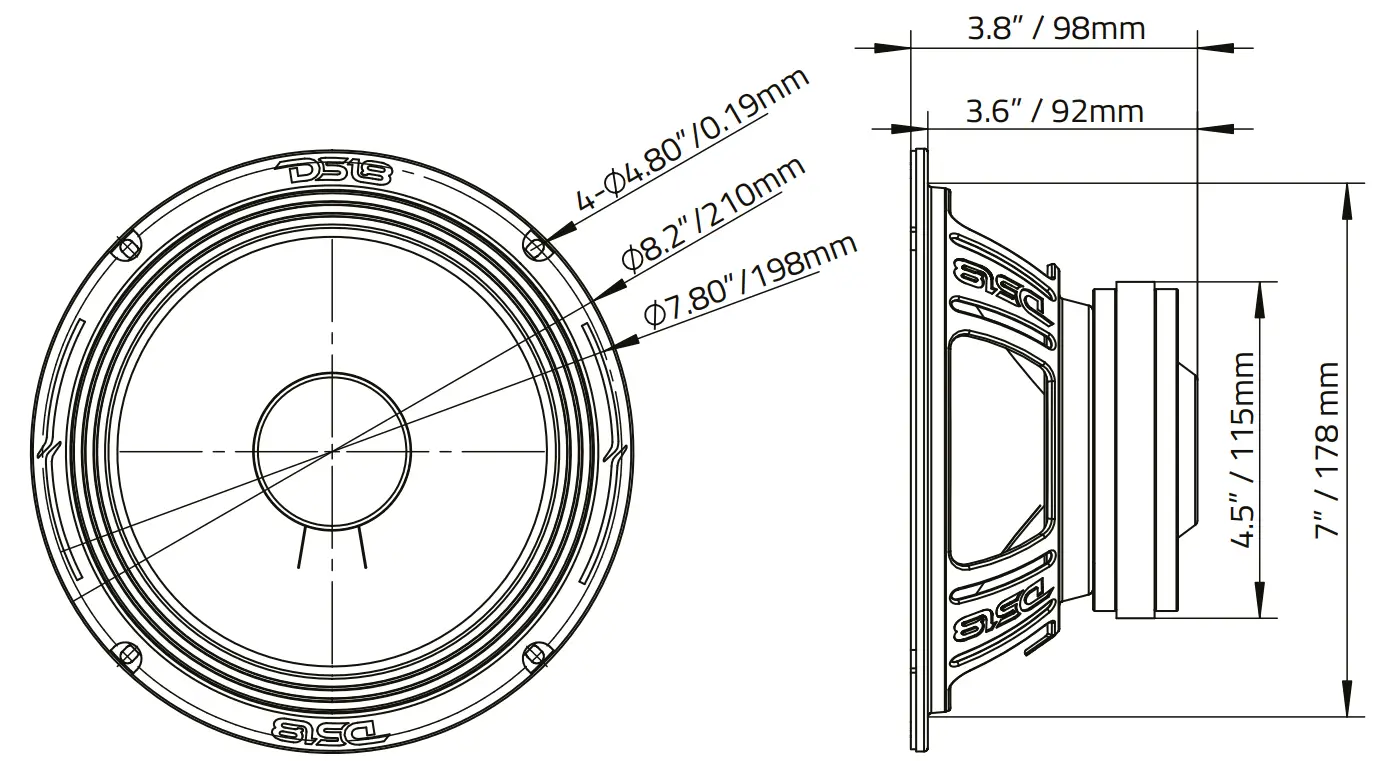

MEASUREMENT
| Overall Diameter | 8.2″ / 210 mm |
| Overall Depth | 3.8″ / 98 mm |
| Front Mount Baffle Cutout | 7″ / 178 mm |
| Mounting Depth | 3.6″ / 92 mm |
| Motor Diameter | 4.5″ / 115 mm |
MEASUREMENTS
WARRANTY
WARRANTY Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice.
Images may or may not include optional equipment.
