OWNER’S MANUAL
PANCADAO
3000W MAX
PRO-1.5KP10.4
10” MID BASS 4 OHMS
# WeLikeltLoud

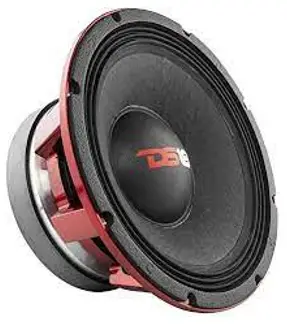

PRO-1.5KP10.4 10” MID BASS
SPECIFICATIONS:
| Nominal Diameter | 10″ |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 1500 W |
| MAX Power Handling | 3000 W |
| Sensitivity (1w/1m) | 94.4 dB |

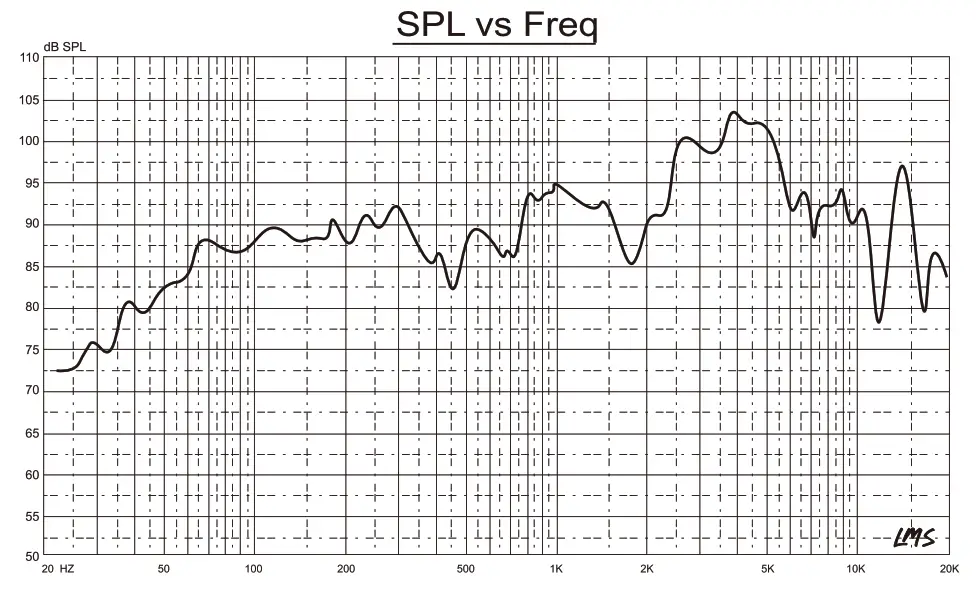

| Frequency Response | 80Hz-10kHz |
| Recommended Hi-Pass Crossover | 80 Hz |
MOTOR
| Voice Coil Diameter | 3″ |
| Voice Coil Former Material | Fiber Glass |
| Winding Material | CCAW |
| Cone Material | Paper |
| Dust Cap Material | Paper |
| Surround Material | Ferrite |
| Basket Material | Aluminum |
| Magnet Material | Ferrite |
| Magnet Weight | 91 Oz |
THIELE & SMALL PARAMETERS
Equivalent Volume………………………………………………….. Vas…. 13.935 L
Free Air Resonance ………………………………………………. Fs ………. 81 Hz
Mechanical Factor………………………………………………………………. Qms ……… 5.622
Electrical Factor……………………………………………………… Qes……… 0.409
Total Factor………………………………………………………………………….. Qts …….. 0.382
Dc Resistance……………………………………………………….. Re… 2.8 OHMS
Force Factor …………………………………………………………. BI …….. 13.459
Moving Mass………………………………………………………….. Mms……. 52.232
Compliance …………………………………………………… Cms….74.45 mm/N
Voice Coil Inductance ……………………………………………. Le…… 0.827 MH
Diaphragm Area ……………………………………………………. Sd 363cm2
Efficiency Bandwidth Product………………………………….. EBP……. 198

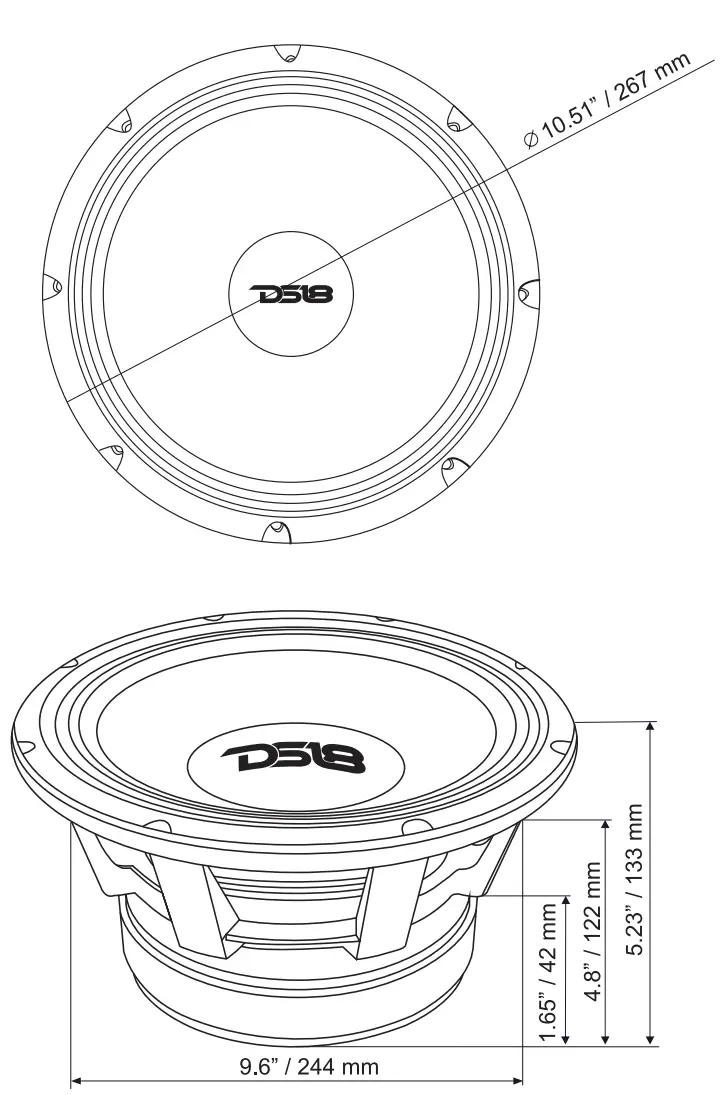

MEASUREMENTS
| Overall Diameter | 10.51″ | / | 267 mm |
| Overall Depth | 5.23″ | / | 133 mm |
| Front Mount Baffle Cutout | 9.6″ | / | 244 mm |
| Mounting Depth | 4.8″ | / | 122 mm |
| Motor Diameter | 7.87″ | / | 200 mm |
Nominal Impedance: 4 ohms
RMS Power Handling: 1500 Watts
MAX Power Handling: 3000 Watts
Sensitivity (1w/1m): 94.4 dB
Frequency Response 80 Hz – 10 kHz
Voice Coil Diameter: 3″
Basket Material: Aluminum
Magnet Weight: 91 Oz
DS18.COM
#WeLikeltLoud
