DS18 PRO-X12M 12 Inch Midrange Speaker
POWER OUTPUT
- RMS Power Handling: 450 Watts
- RMS Power Handling: 450 Watts
- MAX Power Handling: 900 Watts
- Frequency Response: 63.5Hz-11.3KHz
- Nominal Impedance: 8 ohms
- Mounting Depth:126 mm (4.96″)
- Sensitivity (1W/1M): 97.5dB
- Magnet Material: Ferrite
- Magnet Weight: 6002
- Voice Coil Material: Kapton
- Voice Coil Diameter: 2.5″ (65.5 mm)

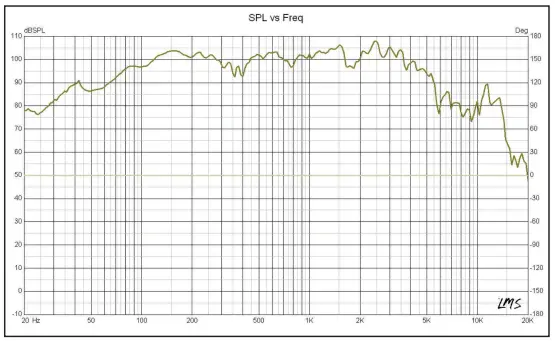

SPL vs Freq
Specifications:
- Nominal Diameter: 12″ (308 mm)
- Nominal Impedance: 8ohms
- RMS Power Handling: 450 Watts
- MAX Power Handling: 900 Watts
- Sensitivity (1w/1m): 97.5dB
- Frequency Response: 63.5Hz-11.3KHz
- Recommended Hi Pass Crossover: 100 Hz
- Midrange
- Voice Coil Diameter: 2.5″ (65.5 mm)
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Basket Material: Steel
- Magnet Weight: 60 oz
- Thiele & Small Parameters:
- Equivalent Volume: Vas: 23.78 LTR
- Excursion: Xmax: 10.5 mm
- Free Air Resonance: F: 64.6 Hz
- Mechanical Factor: Oms: 2.2
- Electrical Factor: Qes: 0.485
- Electrical Factor: Qes: 0.392
- De Resistance: Re: 5.2 ohms
- Measurements:
- Overall Diameter: 308 mm (12.12″)
- Front Mount Baffle Cutout: 285 mm (11.22″)
- Mounting Depth: 126 mm (4.96″)
- Overall Depth: 136 mm (5.35″)

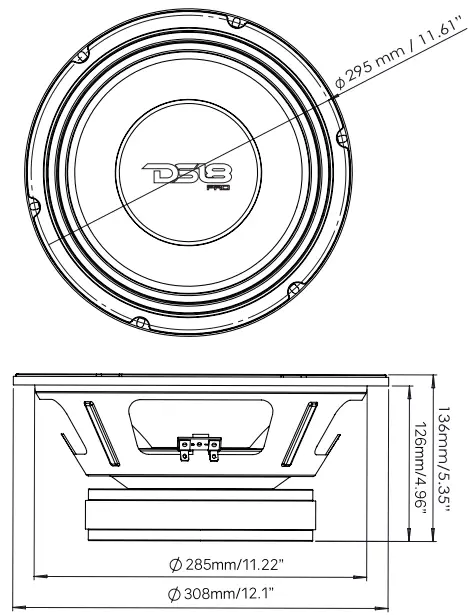

DIMENSION
