Ds18 Pro-x6mse 6.5-inch Sealed Back Midrange Loudspeaker Owner's Manual

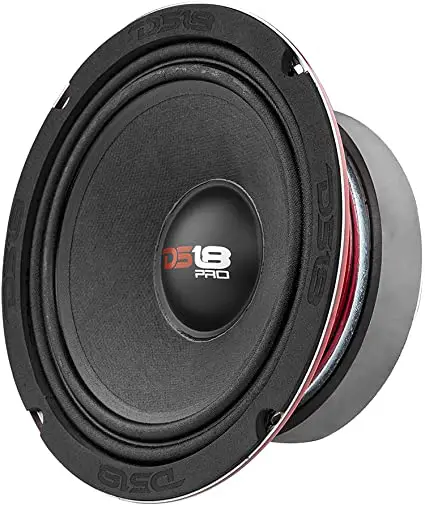

DS18 PRO-X6MSE 6.5-Inch Sealed Back Midrange Loudspeaker

PRO-x 6MSE

B.511 SEALED BACK MIDRANGE LOUDSPEAKER

Specifications

• Nominal Diameter …………………………………………………………………………. 6.5″
• Nominal Impedance …………………………………………………………………… 8 ohm
• MAX Power Handling ………………………………………………………………….. 450W
• RMS Power Handling ………………………………………………………………….. 225W
• Sensitivity (1w/1m) ………………………………………………………………………. 95 dB
• Frequency Response ………………………………………………………… 315Hz-8KHz
• Recommended Hi Pass Crossover ……………………………………………… 550 Hz

Motor

• Voice Coil Diameter …………………………………………………………… 1.5″/38.6 mm
• Voice Coil Former Material ………………………………………………………. KAPTON
• Winding Material …………………………………………………………………………… CCA
• Cone Material ………………………………………………………….. Non-Pressed Paper
• Dust Cap Material ………………………………………………………………………… Paper
• Surround Material …………………………………………………………………………. Cloth
• Basket Material ……………………………………………………………………………. Steel
• Magnet Material ………………………………………………………………………….. Ferrite
• Magnet Weight ……………………………………………………………………………. 33 oz

Thiele & Small Parameters

• Equivilant Volume …………………………………………………. Vas ……………… 1.82 L
• Excursion …………………………………………………………….. Xmax ……………. 9 mm
• Free Air Resonance ……………………………………………… Fs ……………… 511 Hz
• Mechanical Factor ………………………………………………… Qms …………… 10.782
• Electrical Factor ……………………………………………………. Qes ………………. 3.249
• Total Factor ………………………………………………………….. Qts ……………….. 2.427
• De Resistance ……………………………………………………… Re …………… 5.1 ohms

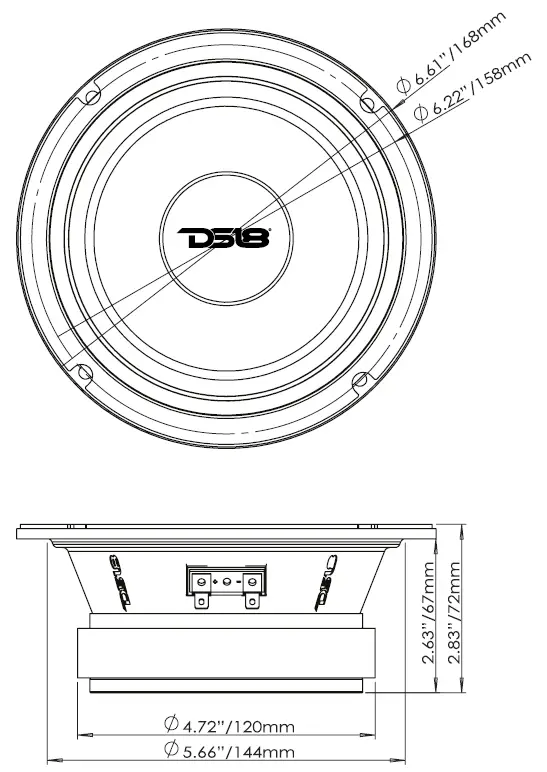

Measurements

• Overall Diameter ……………………………………………………………….. 6.6″/168 mm
• Front Mount Baffle Cutout …………………………………………………… 5.7″/144 mm
• Mounting Depth …………………………………………………………………. 2.63″/67 mm
• Overall Depth ……………………………………………………………………. 2.83″ 172mm
• Motor Diameter …………………………………………………………………. 4.27″/120mm

Features

• MAX Power Handling: 450 Watts
• RMS Power Handling: 225 Watts
• Frequency Response: 315Hz-8KHz
• Voice Coil Diameter: 1.5″ / 38.6 mm
• Voice Coil Material: Kapton
• Nominal Impedance: 8 ohm
• Sensitivity (1W/1 M): 95dB
• Magnet Weight: 33 oz
• Magnet Material: Ferrite
• Mounting Depth: 2.63″ / 67 mm

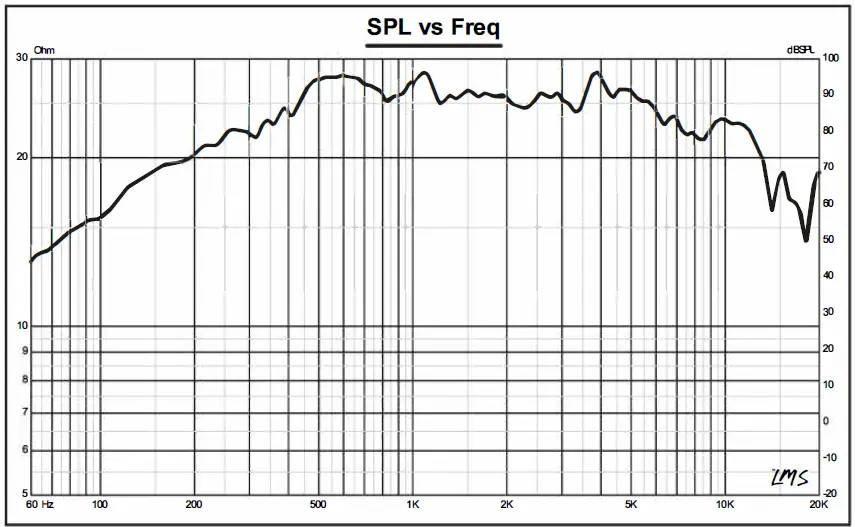

SPL vs Freq
