PRO-GM8SE 8” SEALED BACK MID-RANGE
LOUDSPEAKER
OWNER’S MANUAL
PRO-GM8SE
SPECIFICATIONS
Nominal Diameter……………………………………………………………….. 8”
Nominal Impedance………………………………………………………………. 8 OHMS
RMS Power Handling……………………………………………………….190 Watts
MAX Power Handling ………………………………………………………580 Watts
Sensitivity…………………………………………………………………………………….96dB

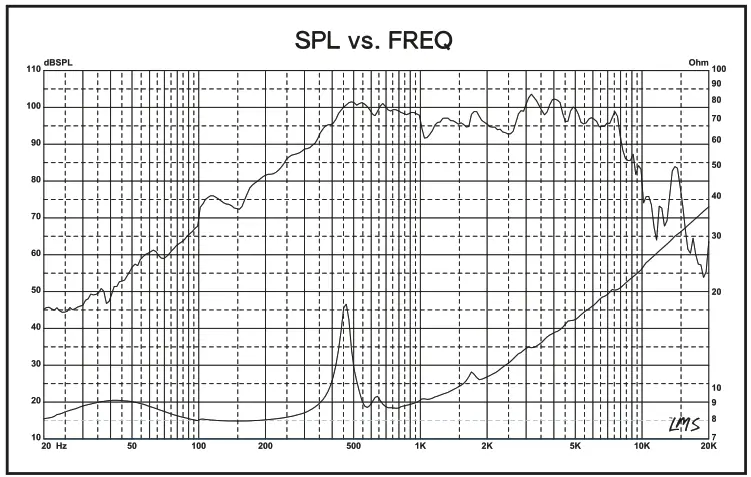

Frequency Response …………………………………………………. 250Hz-10KHz
Recommended Hi-Pass Crossover ………………………350 Hz
Pair or single ……………………………………………………………………………..Single
MOTOR
Voice Coil Diameter …………………………………………………..1.5”
Voice Coil Former Material ……………………………………………… Kapton
Winding Material ……………………………………………………………………………… CCAW
Cone Material …………………………………………………………………………….. Paper
Surround Material ………………………………………………………………. Cloth
basket material ……………………………………………………………………….Steel
Basket Color …………………………………………………………….. Matte Black
Magnet Material ……………………………………………………………………….. Ferrite
Magnet Weight………………………………………………………………………………………….. 30 oz
PARAMETERS
Equivalent Volume …………………Vas……………………………. 1.25L / 0.44ft3
Free Air Resonance………………….. Fs…………………………448Hz
Mechanical Factor……………………….Qms ……………………8.336
Electrical Factor ……………………….. Qes …………………..4.402
Total Factor……………………………….Qts……………………… 2.88
Mechanical Mass ……………………..Mms……………………. 6.922g
Mechanical Compliance ……………………. Cms …………………….0.018mm/N
BL Factor………………………………………….. Cms ……………………….0.018mm/N
Voice Coil Inductance ………………………………..Le ………………………0.736mH
Cone Area …………………………………….Sd…………………………………. 221.67cm2
DC Resistance………………………………… Re …………………………………6.3 ohm
MEASUREMENTS
Overall Diameter……………………….8.26″ / 210mm
Overall Depth…………………… 3.46″ / 88mm
Front Mount Baffle Cutout …………………………… 7.2″ / 183 mm
Mounting Depth……………………………………..3.22″ / 82mm
Motor Diameter………………………………………… 4.72″ / 120mm
FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
