Ds18 Pro-gm6se 6.5 Inch Sealed Back Mid-range Loudspeaker 480 Watts 8-ohms Owner's Manual

Ds18 Pro-gm6se 6.5 Inch Sealed Back Mid-range Loudspeaker 480 Watts 8-ohms Owner's Manual

Contents hide
1 DS18 PRO-GM6SE 6.5 Inch Sealed Back Mid-Range Loudspeaker 480 Watts 8-Ohms
2 Dimensions
3 SPL vs. FREQ
4 SPECIFICATIONS
5 Documents / Resources
5.1 References
6 Related Posts

DS18-logo

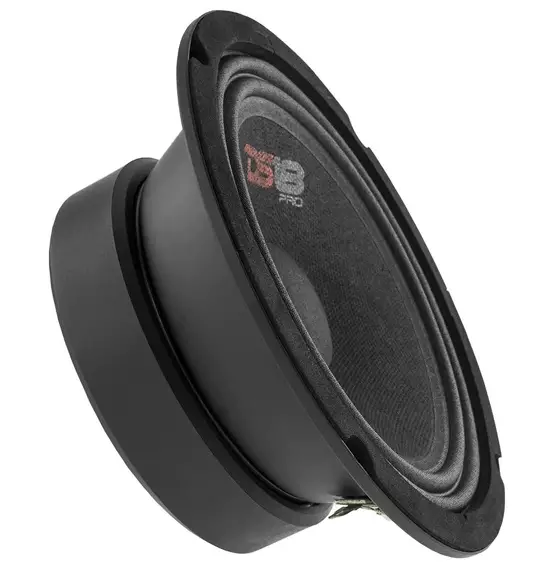

DS18 PRO-GM6SE 6.5 Inch Sealed Back Mid-Range Loudspeaker 480 Watts 8-Ohms

DS18-PRO-GM6SE-6.5-Inch-Sealed-Back-Mid-Range-Loudspeaker-480-Watts-8-Ohms-product

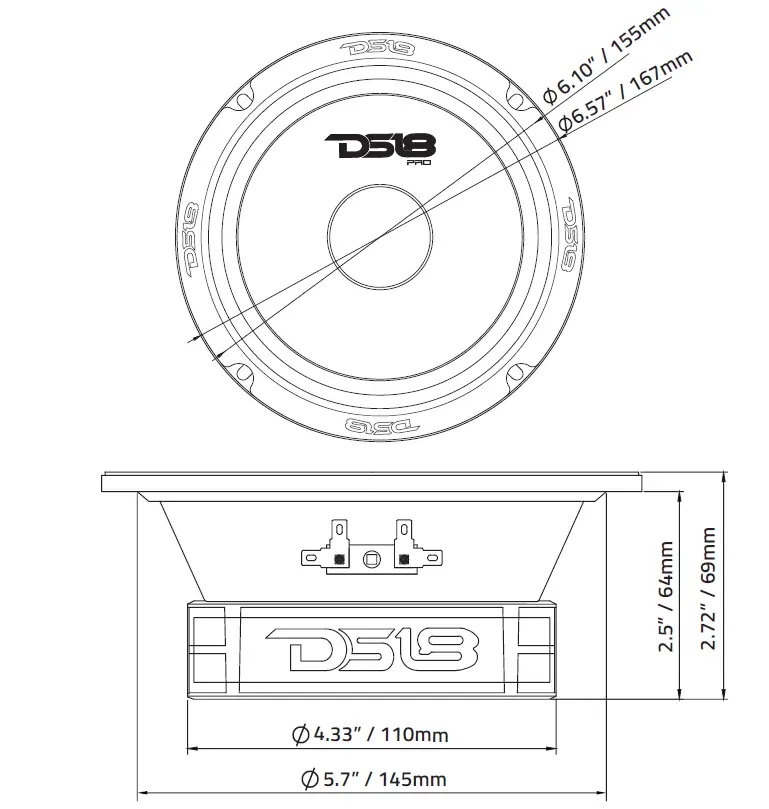

Dimensions

DS18-PRO-GM6SE-6.5-Inch-Sealed-Back-Mid-Range-Loudspeaker-480-Watts-8-Ohms-fog-2

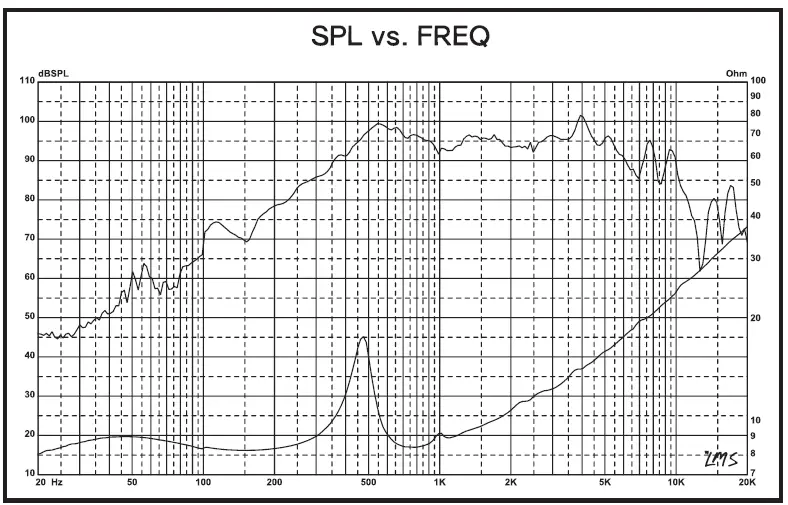

SPL vs. FREQDS18-PRO-GM6SE-6.5-Inch-Sealed-Back-Mid-Range-Loudspeaker-480-Watts-8-Ohms-fog-1

SPECIFICATIONS

  • Nominal Diameter:
    • 6.5” / 165.1mm
  • Nominal Impedance:
    • 8 OHMS
  • RMS Power Handling:
    • 140 Watts
  • MAX Power Handling:
    • 480 Watts
  • Sensitivity:
    • 93dB
  • Frequency Response:
    • 315Hz-10KHz
  • Recommended Hi Pass Crossover:
    • 400 Hz
  • Pair or single:
    • Single

FOR MORE INFORMATION PLEASE VISIT DS18.COM

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
