DS18 PRO- X6.4BM 6.5 Inch Mid Range Loudspeaker with Bullet Owner’s Manual
PRO-X6.4BM
Specifications:
Nominal Diameter 6.5″ (165.1 mm)
Nominal Impedance 4 ohms
MAX Power Handling 500W
RMS Power Handling 250W
Sensitivity (1w/1m) 94dB

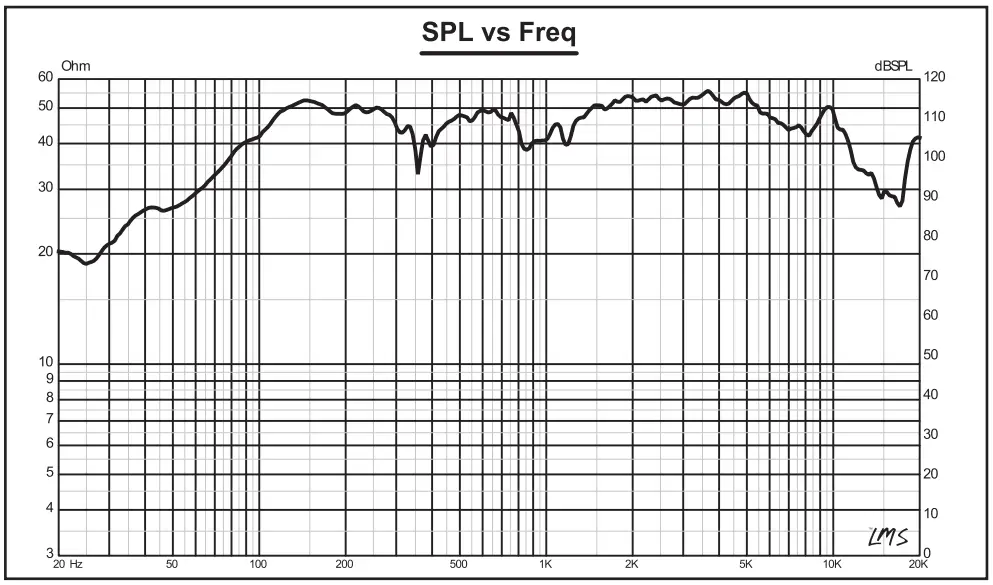

Frequency Response 125Hz-12KHz
Recommended Hi Pass Crossover. 120 Hz
Midrange:
Voice Coil Diameter. (38.1 mm)
Voice Coil Former Material. Kapton
Winding Material. CCAW
Basket Material. Steel
Magnet Weight 30 oz
Thiele & Small Parameters:
Equivalent Volume. Vas 3.810 LTR
Excursion . Xmax 8.2mm
Free Air Resonance Fs. 106 Hz
Mechanical Factor Qms._ 8.027
Electrical Factor Qes 0.471
Total Factor Qts. 0.445
Dc Resistance.. 3.2 ohms

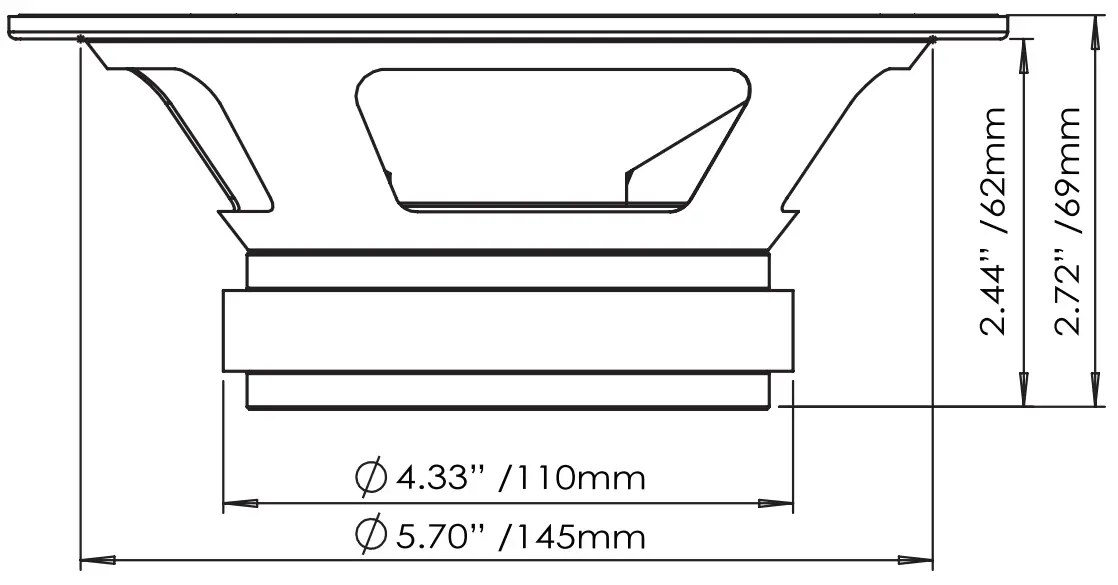

Measurements:

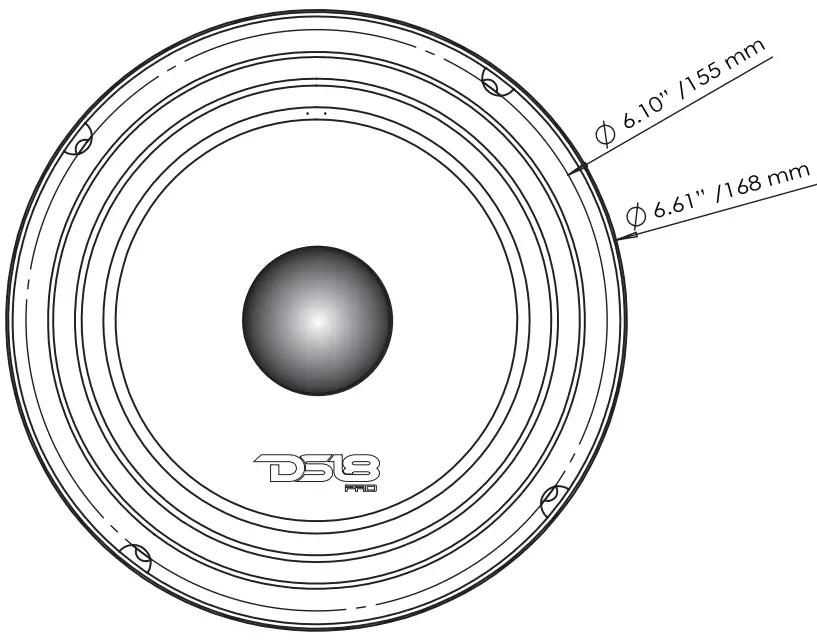

Overall Diameter… 168 mm (6.61″)
Front Mount Baffle Cutout. 145 mm (5.70″)
Mounting Depth 62 mm (2.44″)
Overall Depth 69 mm (2.72″)
6.5″ MIDRANGE LOUDSPEAKER . WITH BULLET
MAX Power Handling: 500 Watts
RMS Power Handling: 250 Watts
Frequency Response: 125Hz-12KHz Voice Coil Diameter: 1.5″ / 38.1 mm Voice Coil Material: Kapton Nominal
Impedance: 4 ohm
Sensitivity (1W/1M): 94dB
Magnet Weight: 30 oz
Magnet Material: Ferrite
Mounting Depth: 2.44″ / 62 mm
