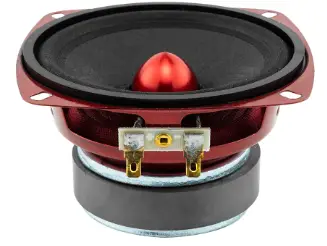

DS18 PRO-X4.4BMSL 4 Inch Mid-Range Slim Loudspeaker with Bullet
SPECIFICATIONS
- Nominal Diameter: 4″ / 101.6mm
- Nominal Impedance: 4 OHMS
- RMS Power Handling: 100 Watts
- MAX Power Handling: 200 Watts
- Sensitivity (1w/1m): 89 dB

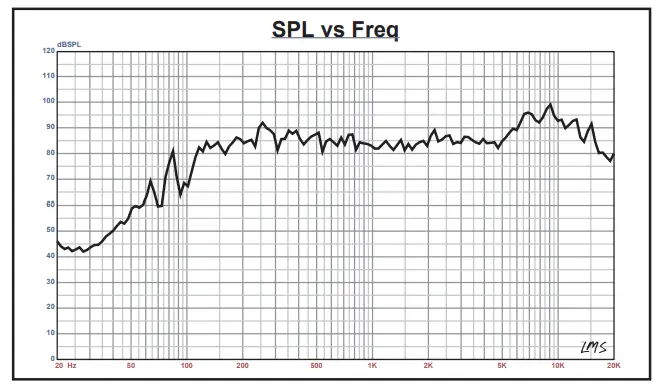

- Frequency Response: 260Hz-11.5KHz
- Recommended HI Pass Crossover: 280Hz
- Sold in pair or Single: Single / Unidad
MOTOR
- Voice Coil Diameter: 1” / 25.4mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW
- Cone Material: Paper
- Bullet Material: Aluminum
- Bullet Color: Red
- Surround Material: Cloth
- Basket Material: Steel
- Basket Color: Glossy Red
- Magnet Material: Ferrite / Ferrita
- Magnet Weight: 6 Oz
- Displacement Volume: 0.524L / 0.0185ft3

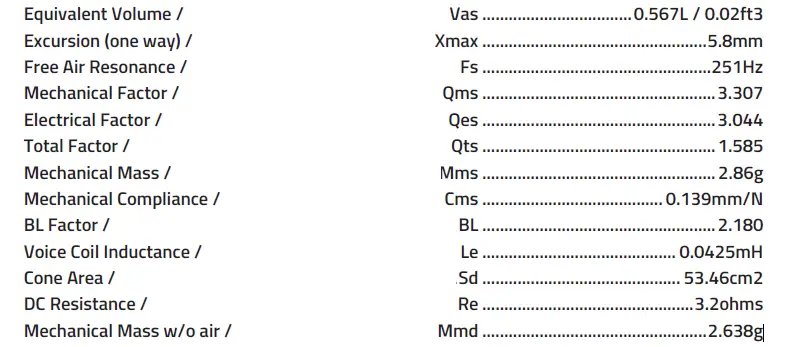

THIELE & SMALL PARAMETERS

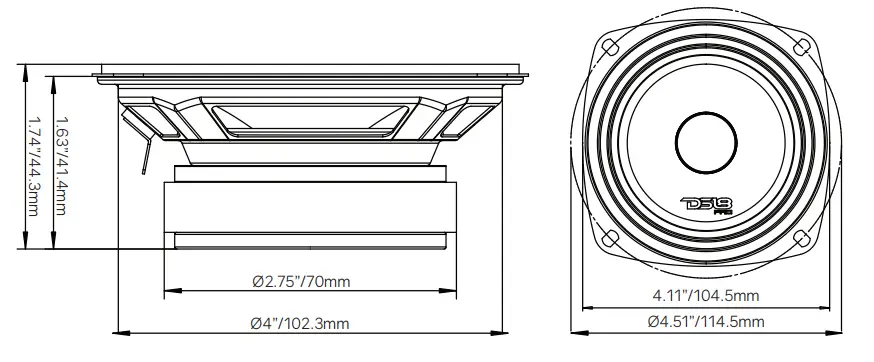

MEASUREMENT
- Overall Diameter: 4.11″ / 104.5mm
- Overall Depth: 1.74″ / 44.3mm
- Front Mount Baffle Cutout: 4″ / 102.3mm
- Mounting Depth :1.63″ / 41.4mm
- Motor Diameter: 2.75″ / 70mm
WARRANTY
Please visit our website DS18.com for more information on our warranty policy We reserve the right to change products and specifications at any time without notice. Images may or may not included optional equipment.
