OWNER’S MANUAL

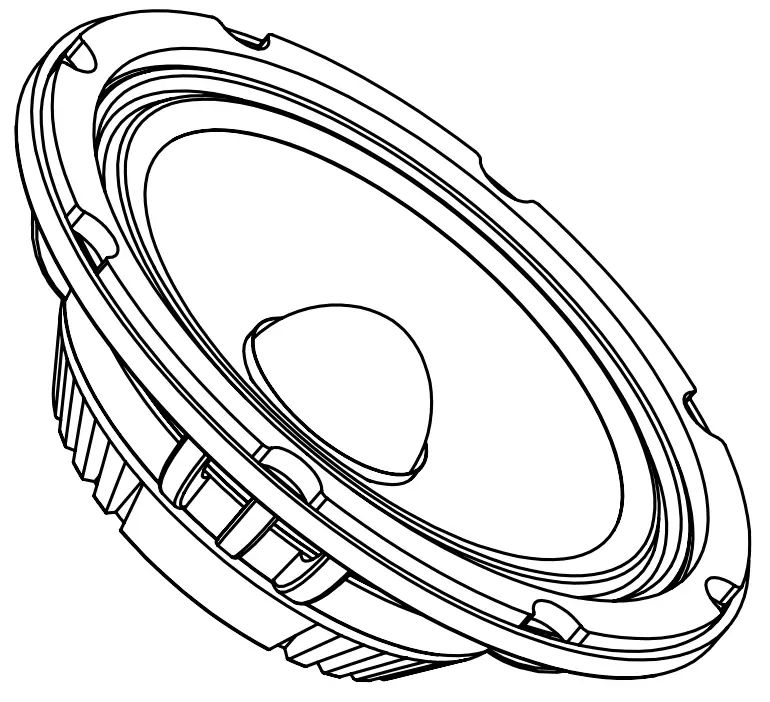

PRO-NEO8SLIM
8″ SLIM MID-RANGE LOUDSPEAKER WITH BULLET AND NEODYMIUM MAGNET
ALTAVOZ DELGADO DE RANGO MEDIO DE 8 PULGADAS CON PUNTA BALA Y
MAGNETO DE NEODIMIO

PRO-NEO8SLIM 8 Inch Slim Mid-Range Loudspeaker with Bullet and Neodymium Magnet

PRO-NEO8ZSLIM

SPECIFICATIONS

Nominal Diameter. ……………………………………………………………………….8″
Nominal Impedance ……………………………………………………….. 4 ohms
RMS Power Handling  ……………………………………………………. 250W
MAX Power Handling ……………………………………………. 500W
Sensitivity (1w/1m)………………………………………………………….. 95 dB
Frequency Response ………………………………………….120Hz-12KHz
Recommended Hi Pass Crossover
Paso Alto Recomendado ……………………………………………………..150 Hz
Pair or Single …………………………………………………..3……. Single
Grill Included …………………………………………………………………………No

MOTOR

Voice Coil Diameter …………………………………………….. 2”/50.8 mm
Voice Coil Former Material ………………………………………….KAPTON
Winding Material …………………………………………………………..CCA
Cone Material  ……………………………………………………………. Paper
Bullet Material ………………………………………….. Aluminum
Surround Material ……………………………………………. Cloth
Basket Material ……………………………………………..CNC Aluminum
Basket Color/Finish ………………………………………..Matte Black
Magnet Material ………………………………………………………. Neodymium
Magnet Weight ………………………………………………………………… 4 oz

THIELE & SMALL PARAMETERS

Equivalent Volume ………………………………………Vas…………………………5.6237 L
Excursion (one way) ……………………………………….. Xmax ……………………….8.0 mm
Free Air Resonance ………………………………… Fs …………………………….126 Hz
Mechanical Factor ………………………………………… Qms ………………………….. 1.252
Electrical Factor …………………………………… Qes ……………………………. 0.693
Total Factor ………………………………….. Qts …………………………….. 0.446
Mechanical Mass …………………………………. MMS…………………….. 16.229 g
Mechanical Compliance ……………………………… Cms ………………..0.098 mm/N
BL Factor ……………………………………….. BL ……………………………… 7.885
Voice Coil Inductance ………………………….. Le ……………………….. 0.051 mH
Cone Area  ………………………………………. Sd……………………. 201.06 cm2
CD Resistance ……………………………….. Re………………………….3.2 ohms
Mechanical Mass w/o Air …………………………. Mmd…………………….. 13.007 g

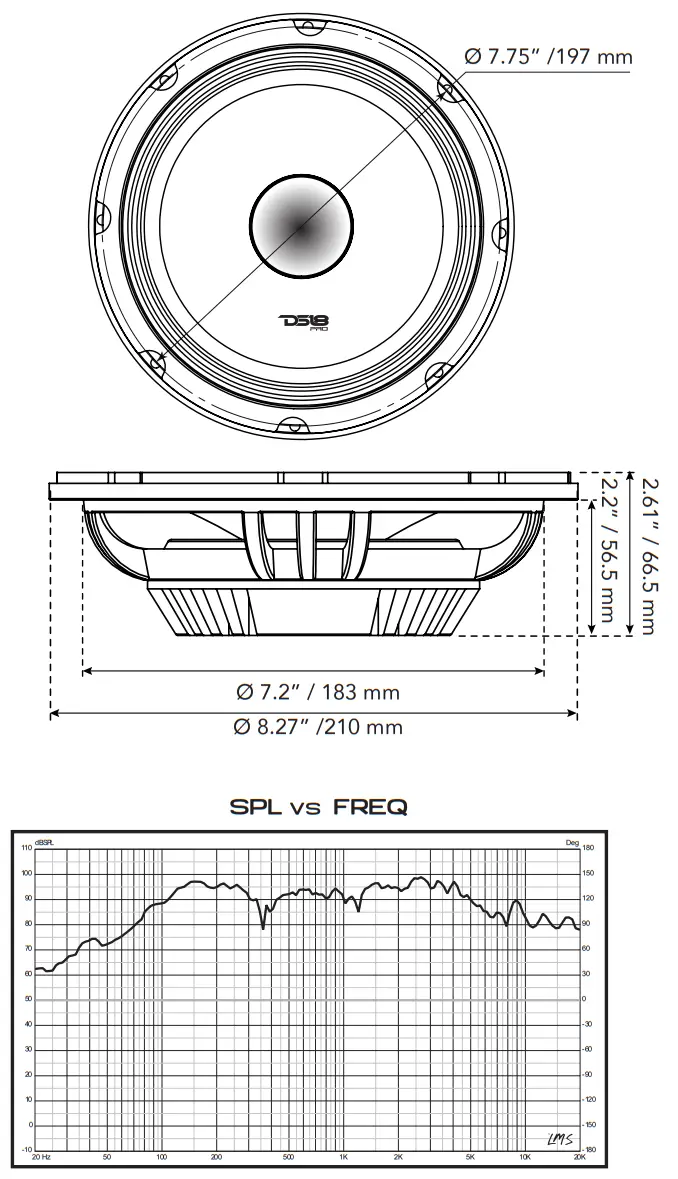

MEASUREMENTS

Overall Diameter ………………………………………………….8.27″ / 210 mm
Overall Depth …………………………………………………..2.61″ / 66.5 mm
Front Mount Baffle Cutout ………………………….. 7.2″ / 183 mm
Mounting Depth ……………………………………………2.22″ / 56.5 mm
Motor Diameter …………………………………………………………..3.3″ / 84 mm

FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
We LIKE IT LOUD
