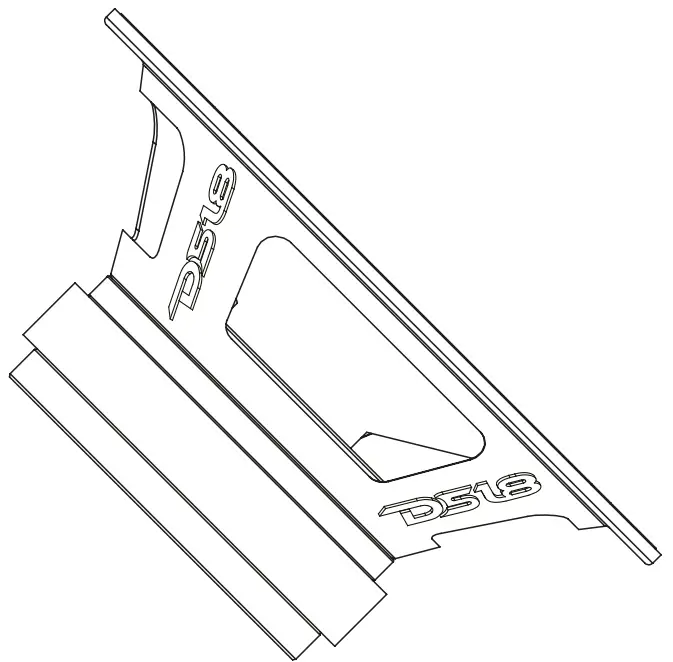

PRO-X8BM 8″ MID-RANGE
LOUDSPEAKER WITH BULLET
OWNER’S MANUAL
PRO-X8BM
SPECIFICATIONS
Nominal Diameter …………………………………….. 8″ / 203mm
Nominal Impedance……………………………………….. 8 Ohms
RMS Power Handling …………………………………….275W
MAX Power Handling ……………………………………550W
Sensitivity (1w/1m) ……………………………….. 96dB
Frequency Response …………………………… 115Hz-16KHz
Recommended HI Pass Crossover ………………… 120Hz
Pair or Single ……………………………….Single
MOTOR
Voice Coil Diameter ………………………………….1.5”/38.6 mm
Voice Coil Former Material …………………………… Kapton
Winding Material …………………………………………CCAW
Cone Material …………………..Non-Pressed Paper
Bullet Material …………………………………….. Aluminum
Bullet Color…………………………………..Glossy Red
Surround Material ………………………………….Cloth
Basket Material………………………………… Steel
Basket Color ……………………………Glossy Red
Magnet Material ……………………………………….Ferrite
Magnet Weight ……………………………………. 30 oz
THIELE & SMALL PARAMETERS
Equivalent Volume ………………….. Vas ………. 13.7L / 0.486ft3
Excursion (one way) ……………………. Xmax………………….. 9.3 mm
Free Air Resonance ………………………. Fs…………………….. 122Hz
Mechanical Factor ……………………….. Qms…………………… 9.645
Electrical Factor ………………………… Qes……………………….0.98
Total Factor…………………………… Qts………………………… 0.889
Mechanical Mass……………………. Mms……………………. 8.076g
Mechanical Compliance …………….. Cms ………………. 0.21mm/N
BL Factor ………………………… BL ………………………. 5.751
Voice Coil Inductance ……….. Le…………………….. 0.857mH
Cone Area……………………… Sd …………………216.42Cm2
DC Resistance ……………………….. Re …………………. 5.2 ohm

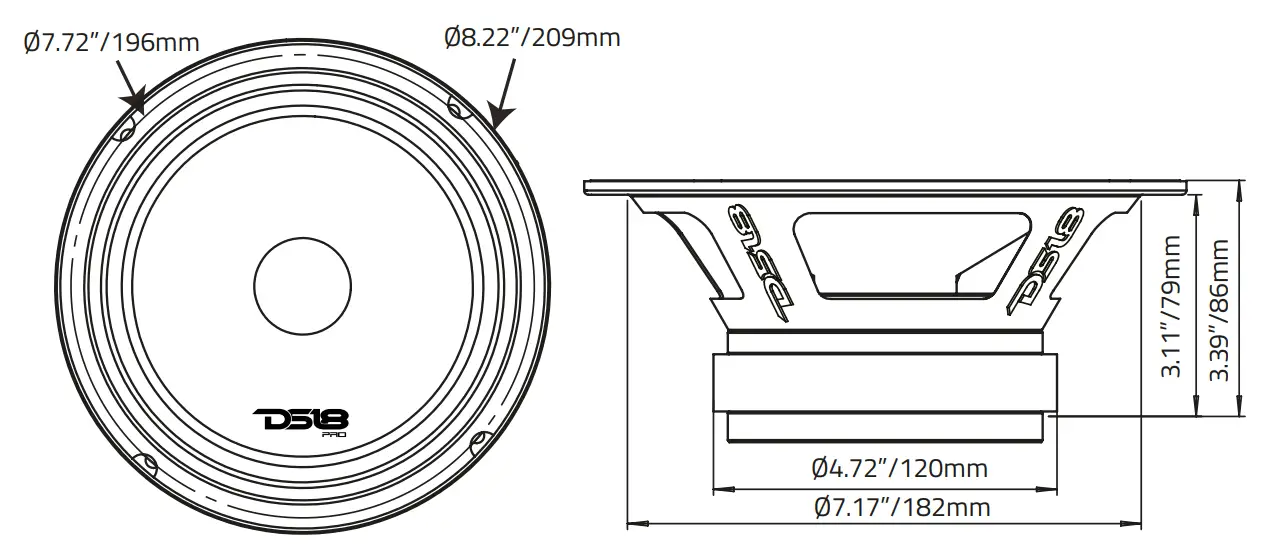

MEASUREMENTS
Overall Diameter ………………………….. 8.22” / 209mm
Overall Depth…………………………..3.39″ / 86 mm
Front Mount Baffle Cutout …………………….. 7.17″ / 182 mm
Mounting Depth……………………………3.11″ / 79 mm
Motor Diameter ……………………… 4.72″ / 120 mm
We LIKE IT LOUD
MEASUREMENTS
WARRANTY
Please visit our website DS18.com for more information on our warranty policy.
We reserve the right to change products and specifications at any time without notice. Images may or may not included optional equipment.
WARNING:
Cancer and Reproductive Harm. www.P65Warning.ca.gov
