DS18 PRO-GM6B 6.5-Inch Mid-Range Loudspeaker with Bullet Owner's Manual
SPECIFICATIONS
Nominal Diameter…………………………………………6.5” / 165.1mm
Nominal Impedance ……………………………………..8 OHMS
RMS Power Handling…………………………………….140 Watts
MAX Power Handling ………………………………….480 Watts
Sensitivity ……………………………………………………..93dB
Frequency Response …………………………………….100Hz-6.3KHz
Recommended Hi Pass Crossover ……………….120 Hz
Pair or single …………………………………………………Single / Unidad
MOTOR
Voice Coil Diameter …………………………………….1.5” / 38.1mm
Voice Coil Former Material …………………………..Kapton
Winding Material …………………………………………CCAW
Cone Material ………………………………………………Paper
Bullet Material ………………………………………….Red Aluminum / Aluminio Rojo
Surround Material ………………………………………..Cloth
Basket Material …………………………………………….Steel / Acero
Basket Color ……………………………………………….Matte Black
Magnet Material ……………………………………………Ferrite
Magnet Weight …………………………………………….23 oz
THIELE & SMALL PARAMETERS
Equivalent Volume………………Vas ……………….. 6.92L / 2.44ft3
Free Air Resonance ……………Fs …………………..105Hz
Mechanical Factor ………………Qms ……………….10.092
Electrical Factor…………………..Qes………………….0.78
Total Factor ………………………..Qts …………………0.724
Mechanical Mass …………………Mms……………….8.219g
Mechanical Compliance ………Cms………………..0.28mm/N
BL Factor …………………………..BL …………………6.49
Voice Coil Inductance ………..Le…………………..0.761mH
Cone Area ………………………….Sd ………………….132.73cm2
DC Resistance………………………Re ………………….6.4 ohm

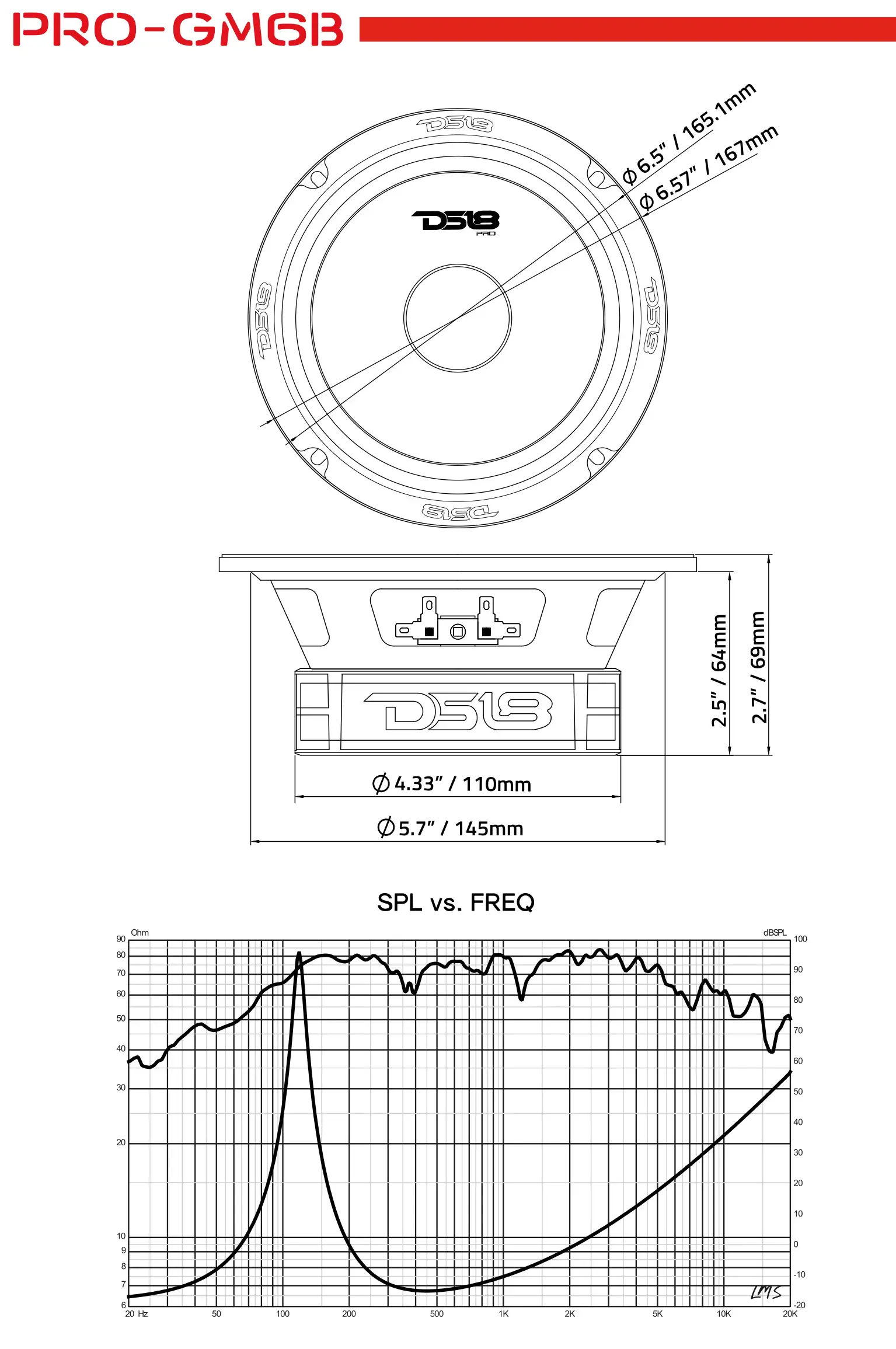

MEASUREMENTS
Overall Diameter …………………………………………6.57″ / 167mm
Overall Depth………………………………………………2.7″ / 69mm
Front Mount Baffle Cutout ………………………..5.7″ / 145 mm
Mounting Depth ………………………………………….2.5” / 64mm
Motor Diameter …………………………………………..4.33″ / 110mm
