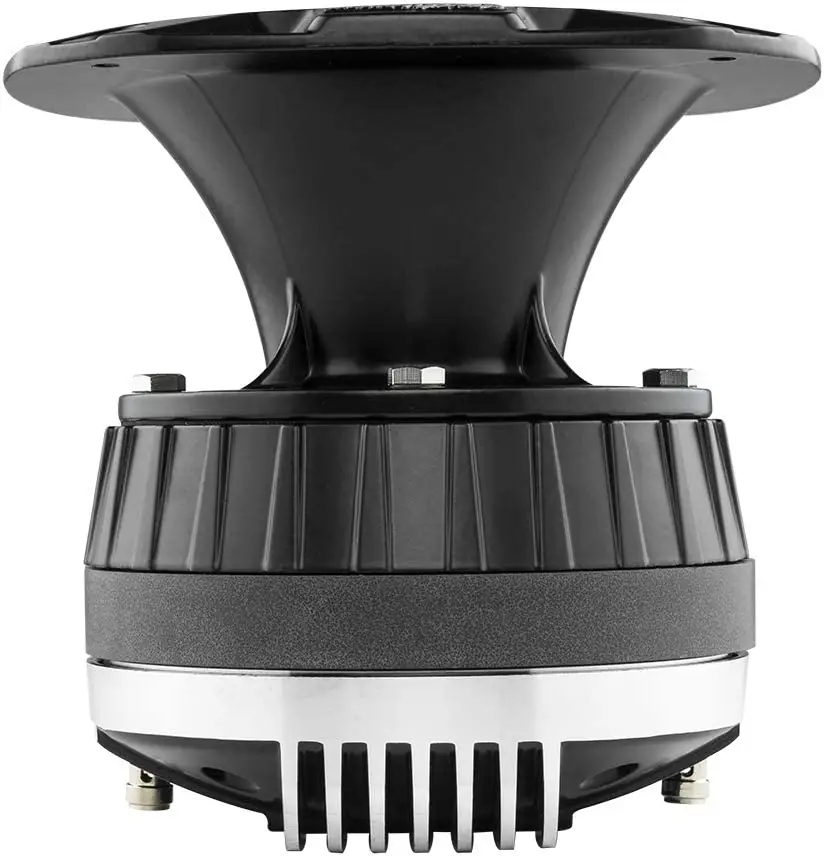

DS18 PRO-DKH1S 2 Inch Throat Aluminum Short Horn and Compression Driver Owner’s Manual

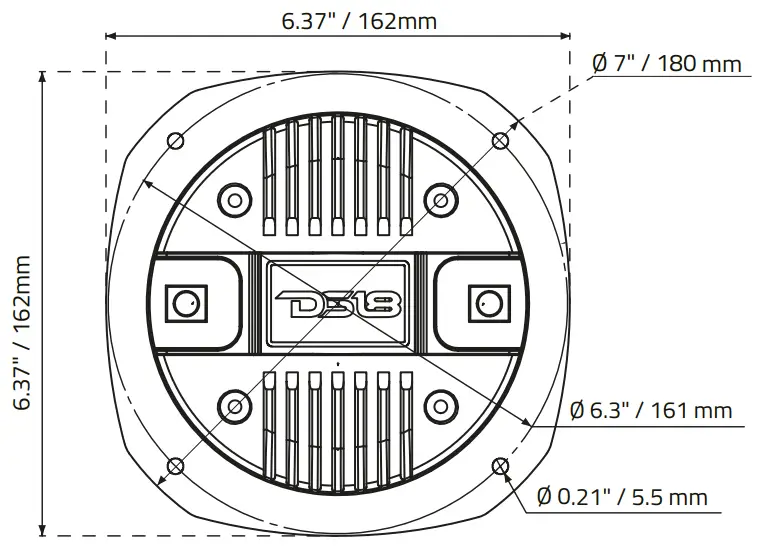

Dimension
SPECIFICATIONS
Nominal Impedance: 8 OHMS
AES Power: 160 Watts
Program Power Handling: 320 Watts
Peak Power Handling: 640 Watts
Sensitivity (1w/1m): 110 dB

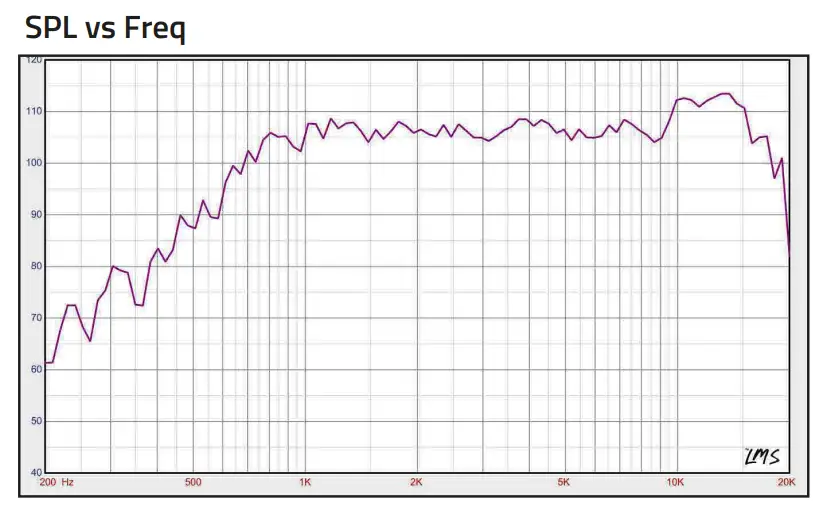

Frequency Response: 630Hz-20KHz
Recommended Hi Pass Crossover: 900 Hz
PRO-D1 – MOTOR
Voice Coil Diameter: 2.03″ / 51.5mm
Voice Coil Former Material: Kapton
Winding Material: CCAW
Diaphragm Material: Titanium
Magnet Material: Ferrite
Magnet Weight: 35
Body Material: Aluminum
PRO-HA52/BK – HORN SPECIFICATIONS
Nominal Diameter: 6.5” / 165mm
Throat Diameter: 2″ / 50.8mm
Sound Coverage: 57° Rounded
Body Material: Aluminum
Color: Black Satin

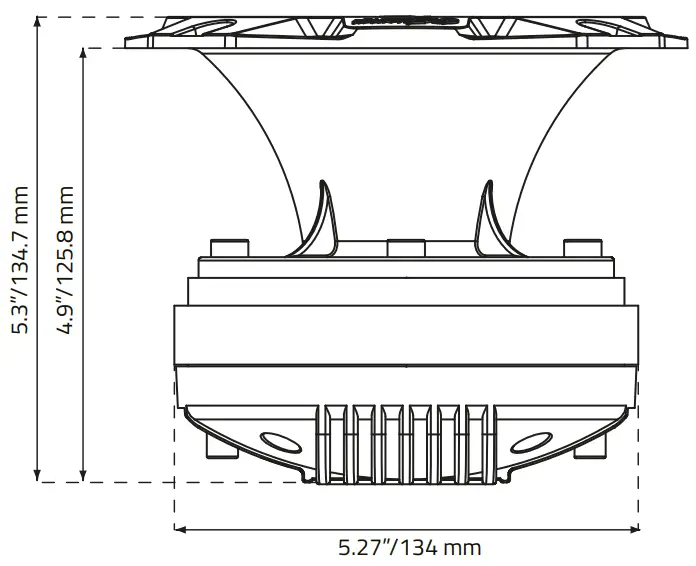

MEASUREMENTS
Overall Diameter: 6.37″ / 162mm
Overall Depth: 5.3″ / 134.7 mm
Mounting Depth: 4.9″ / 125.8 mm
Mounting Hole Diameter: 5.7″ / 145mm
Bolt Pattern / Type / ……………… Ø 6.33” / 161mm x 4 – 0.21” / 5.5mm Hole /
