Ds18 Pro-dkh2 2-inch Throat Aluminum Horn Owner's Manual

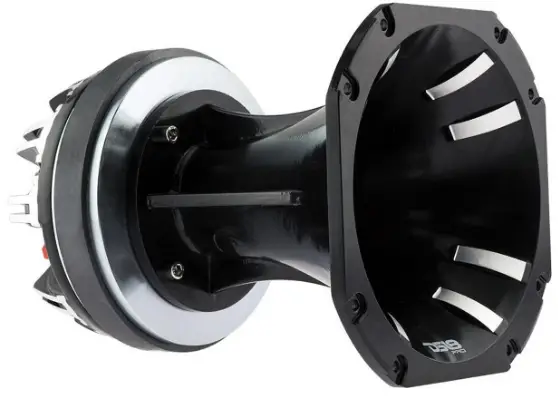

DS18 PRO-DKH2 2-Inch Throat Aluminum Horn

2” THROAT ALUMINUM HORN AND COMPRESSION DRIVER WITH 3” TITANIUM VOICE COIL KIT

PRO-DKH2

SPECIFICATIONS

• Nominal Impedance ………………………………………… 8 OHMS
• AES Power ………………………………………………………………….200 Watts
• Program Power Handling ……..400 Watts
• Peak Power Handling…………………………….800 Watts
• Sensitivity (1w/1m) ………………………………………. 109 dB
• Frequency Response …………………. 500Hz-18.5KHz
• Recommended Hi Pass Crossover  …. 800 Hz

MOTOR

• Voice Coil Diameter ……………………3” / 76.2mm
• Voice Coil Former Material………….. Kapton
• Winding Material…………………….. Aluminium / Aluminio
• Diaphragm Material ……………………..Titanium / Titanio
• Magnet Material…………………………………….. Ferrite / Ferrita
• Magnet Weight…………………………………………………………………. 65 oz
• Body Material……………………………… Aluminum / Aluminio

HORN SPECIFICATIONS

• Nominal Diameter………………………………………… 8″ / 203mm
• Throat Diameter ………………………………………2″ / 50.8mm
• Sound Coverage…………………………………….100° Rounded
• Body Material…………………………………………. Aluminum
• Color/Finish …………………………… Black Satin / Negro Satinado

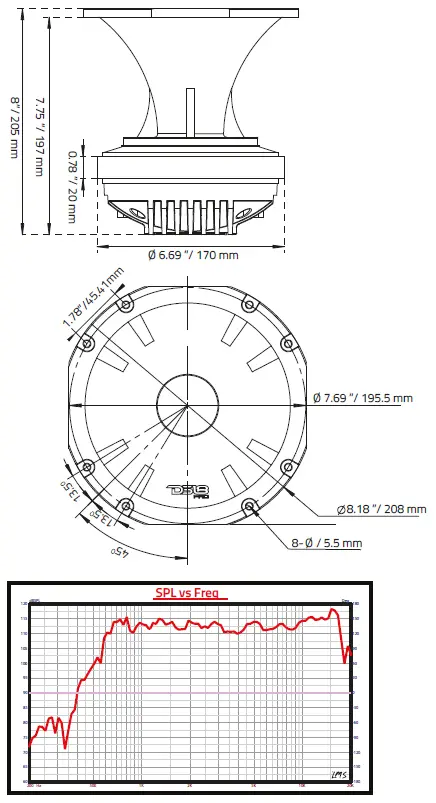

MEASUREMENTS

• Overall Diameter………………………………………… 8.18″ / 208mm
• Overall Depth ……………………………………………….. 8″ / 205mm
• Mounting Depth ……………………………. 7.75″ / 197mm
• Mounting Hole Diameter  …. 6.7″ / 170mm
• Bolt Pattern  ………………..Ø 8.18” / 208mm x 8 – 0.21” / 5.5mm Hole / Agujero Patrón de Tornillos / Tipo
