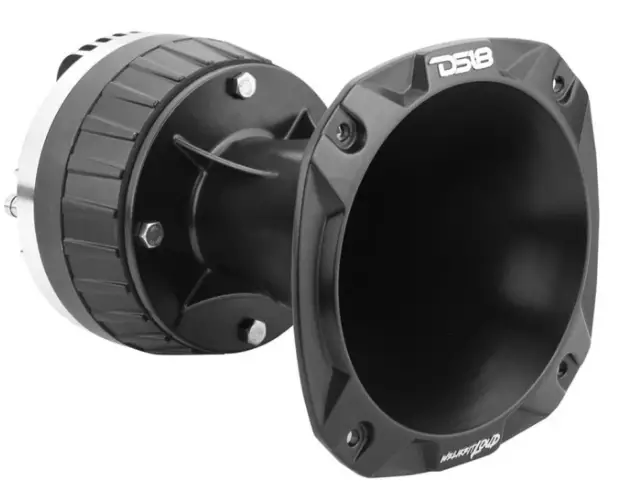

DS18 PRO-DKH1XS 2 Inch Throat Aluminum Short Horn and Driver with Compression Ring and 2 Inch Titanium Voice Coil Kit

2” THROAT ALUMINUM SHORT HORN AND DRIVER WITH COMPRESSION RING AND 2” TITANIUM VOICE COIL KIT

PRO-DKH1XS

SPECIFICATIONS

• Nominal Impedance ………………………………………… 8 OHMS
• AES Power …………………………………………………………………160 Watts
• Program Power Handling ……..320 Watts
• Peak Power Handling …………………………….640 Watts
• Sensitivity (1w/1m) ………………………………………. 114 dB
• Frequency Response …………………….. 630Hz-20KHz
• Recommended Hi Pass Crossover …. 900 Hz

PRO-D1X – MOTOR

• Voice Coil Diameter  ……………. 2.03″ / 51.5mm
• Voice Coil Former Material ………….. Kapton
• Winding Material ……………………………………………….. CCAW
• Diaphragm Material ……………………..Titanium
• Magnet Material ………………………………………. Ferrite
• Magnet Weight ………………………………………………………………… 35 oz
• Body Material …………………………….. Aluminum

PRO-HA52/BK

HORN SPECIFICATIONS

• Nominal Diameter …………………………………….. 6.5″ / 165mm
• Throat Diameter ………………………………………..2″ / 50.8mm
• Sound Coverage ………………………………………….. 57° Rounded
• Body Material ……………………………………………. Aluminum
• Color/Finish ……………………………. Black Satin

MEASUREMENTS

• Overall Diameter  ………………………………………….. 6.37″ / 162mm
• Overall Depth …………………………………………….. 6″ / 154.7mm
• Mounting Depth ………………………… 5.74″ / 145.8mm
• Mounting Hole Diameter …. 5.7″ / 145mm
• Bolt Pattern / Type / ………………..Ø 6.33” / 161mm x 4 – 0.21” / 5.5mm Hole

FOR MORE INFORMATION

PLEASE VISIT: DS18.COM
