OWNER’S MANUAL
PRO-DKH1X
2” THROAT ALUMINUM HORN
AND DRIVER WITH
COMPRESSION RING AND
2” TITANIUM VOICE COIL KIT
PRO-DKH1X
SPECIFICATIONS
Nominal Impedance……………………………………. 8 OHMS
AES Power ………………………………………………..160 Watts
Program Power Handling a ……..320 Watts
Peak Power Handling …………………………..640 Watts
Sensitivity (1w/1m) …………………………………… 115 dB

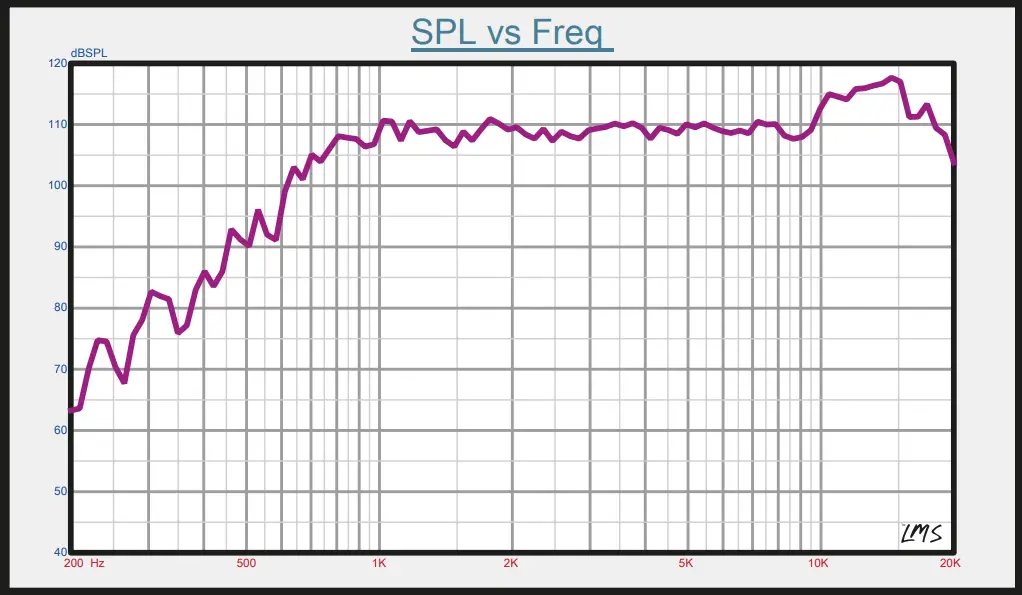

Frequency Response ……………………. 630Hz-20KHz
Recommended Hi Pass Crossover …. 900 Hz
PRO-D1X – MOTOR
Voice Coil Diameter ……………. 2.03″ / 51.5mm
Voice Coil Former Material ………….. Kapton
Winding Material …………………………………………….. CCAW
Diaphragm Material …………………….Titanium
Magnet Material ………………………………………. Ferrite
Magnet Weight ……………………………………………………………… 35 oz
Body Material ……………………………… Aluminum
PRO-HA102/BK –
HORN SPECIFICATIONS
Nominal Diameter………………………………….. 6.5″ / 165mm
Throat Diameter …………………………………….2″ / 50.8mm
Sound Coverage ……………………………………….. 35° Rounded
Body Material…………………………………….. Aluminum
Color ………………………………………………….. Black Satin

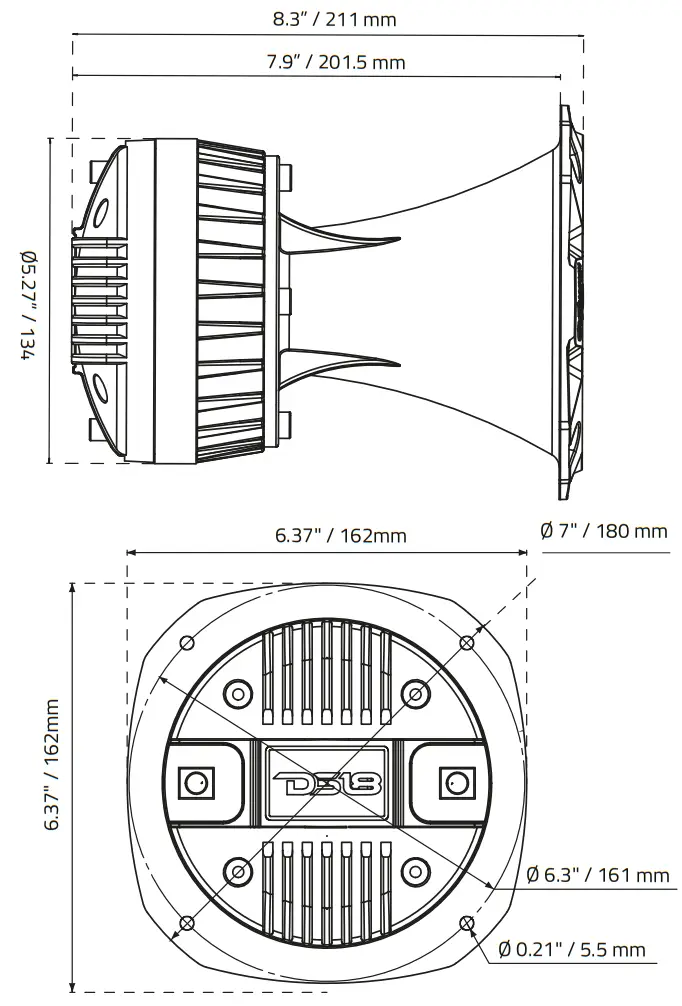

MEASUREMENTS
Overall Diameter ………………………………… 6.37″ / 162mm
Overall Depth ………………………………………….. 8.3″ / 211mm
Mounting Depth ……………………….. 7.9″ / 201.5mm
Mounting Hole Diameter …. 5.7″ / 145mm
Bolt Pattern / Type / ………………..Ø 6.33” / 161mm x 4 – 0.21” / 5.5mm Hole
