Ds18 Pro-d2ph 3 Inch Phenolic Voice Coil Bolt-on Compression Driver Owner's Manual

DS18 PRO-D2PH 3 Inch Phenolic Voice Coil Bolt-On Compression Driver

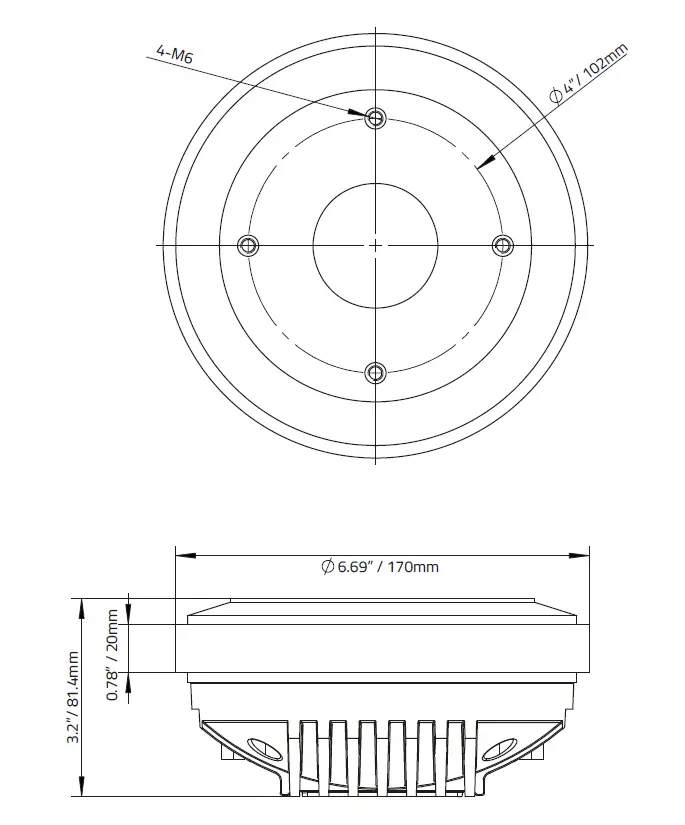

DIMENSION

SPECIFICATION

• Throat Diameter: 2″ / 50.8mm
• Installation Type: Bolt-On / Atornillar
• Nominal Impedance: 8 OHMS
• AES Power Handling: 200W
• Program Power Handling: 400W
• Peak Power Handling: 800W
• Sensitivity (1w/1m): 109 dB
• Frequency Response: 500Hz – 10KHz
• Recommended Hi Pass Crossover: 800 Hz

MOTOR

• Voice Coil Diameter: 3″ / 76.2mm
• Voice Coil Former Material: Kapton
• Winding Material: Aluminum / Aluminio
• Diaphragm Material: Phenolic / Fenólico
• Magnet Material: Ferrite / Ferrita
• Magnet Weight: 65 oz
• Body Material: Aluminum / Aluminio
• Body Color: Black Aluminum / Machined

MEASUREMENTS

• Overall Diameter: 6.69″ / 170mm
• Overall Depth: 3.2″ / 81.4mm
• Bolt Pattern Type: 4*M6

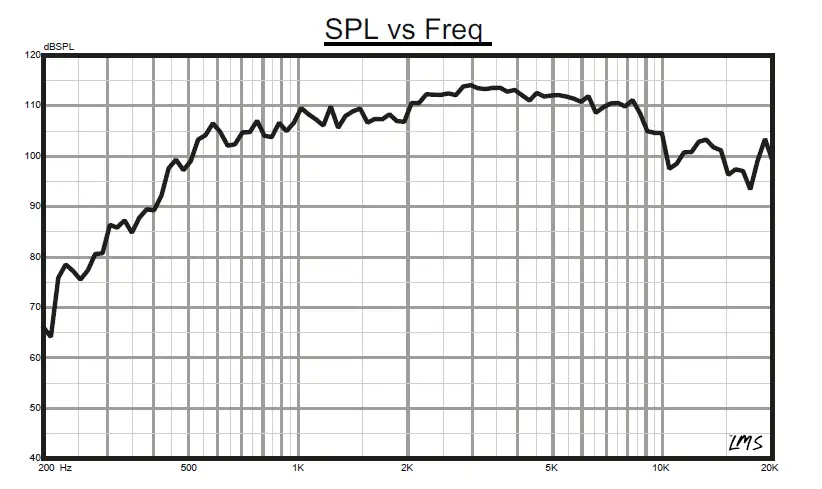

SPL vs Freq

FOR MORE INFORMATION PLEASE VISIT DS18.COM
