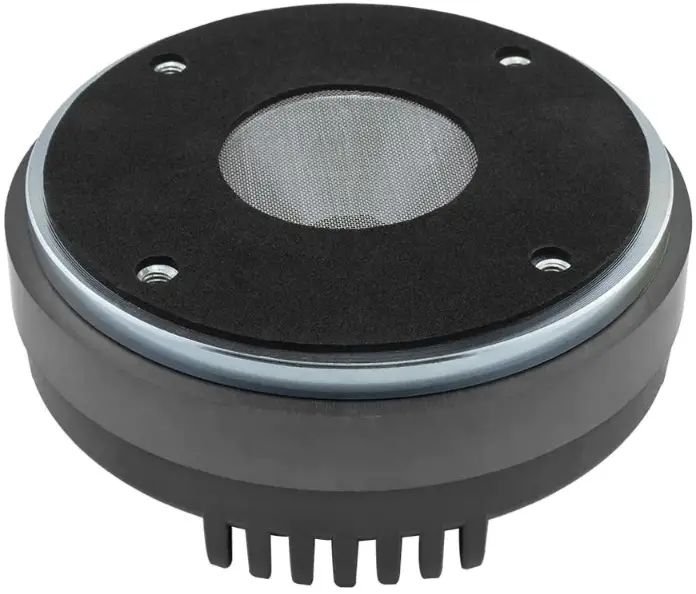

DS18 PRO-DPL1 2 Inch Throat Compression Driver Owner’s Manual

PRO-DPL1 Description

SPL vs Freq

SPECIFICATIONS

• Throat Diameter: 2″ / 50.8 mm
• Installation Type: Bolt on
• Nominal Impedance: 8 OHMS
• AES Power Handling: 160W
• Program Power Handling: 320W
• Peak Power Handling: 640W
• Sensitivity (1w/1m): 109dB
• Frequency Response: 630Hz-20KHz
• Recommended Hi Pass Crossover: 900 Hz

MOTOR

• Voice Coil Diameter: 2.03″ / 51.5mm
• VC Former Material: Kapton
• Winding Material: CCA
• Diaphragm Material: Titanium
• Magnet Material: Ferrite
• Magnet Weith: 35 Oz
• Body Material: Plastic Cover.

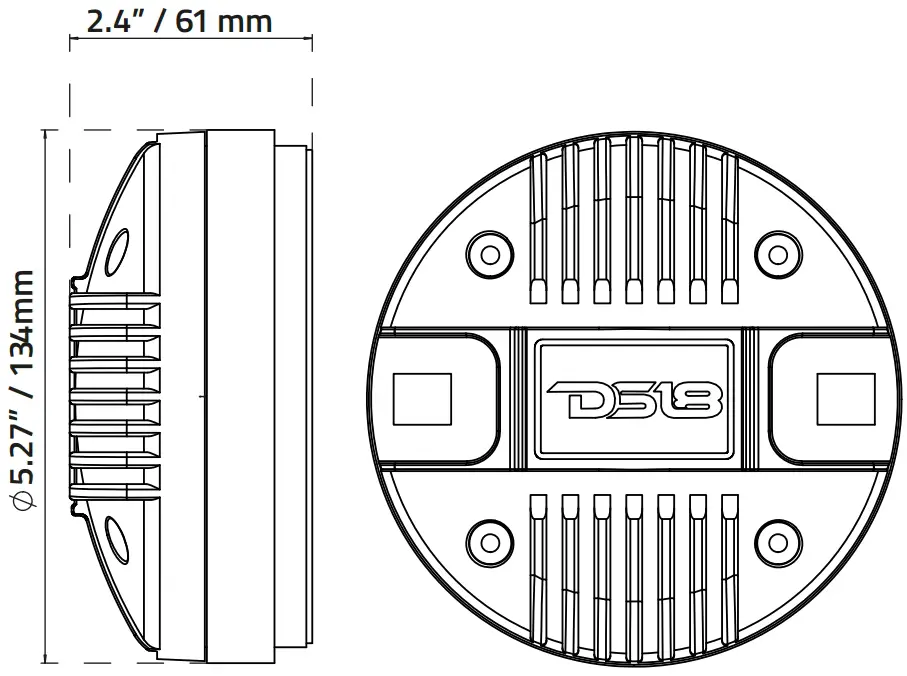

MEASUREMENTS

• Overall Diameter: 5.27″ / 134mm
• Overall Depth: 2.4″ / 61mm

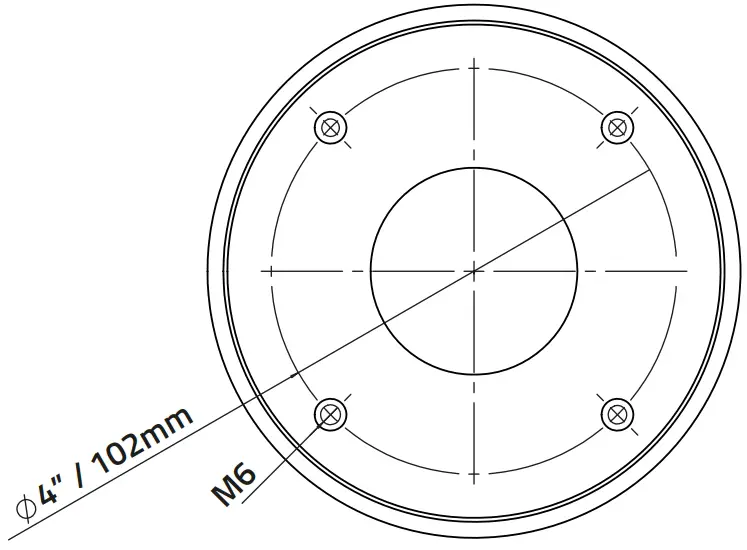

• Bolt Pattern – Type: 4″ / 102mm – M6
