DS18 PRO-DRN1 1.75-Inch Neodymium Driver
PRO-DRN1
1.75 NEODYMIUM DRIVER
Specifications
- Nominal Impedance
8 ohms - RMS Power Handling
150 Watts - MAX Power Handling
300 Watts - Sensitivity (1w/1m)

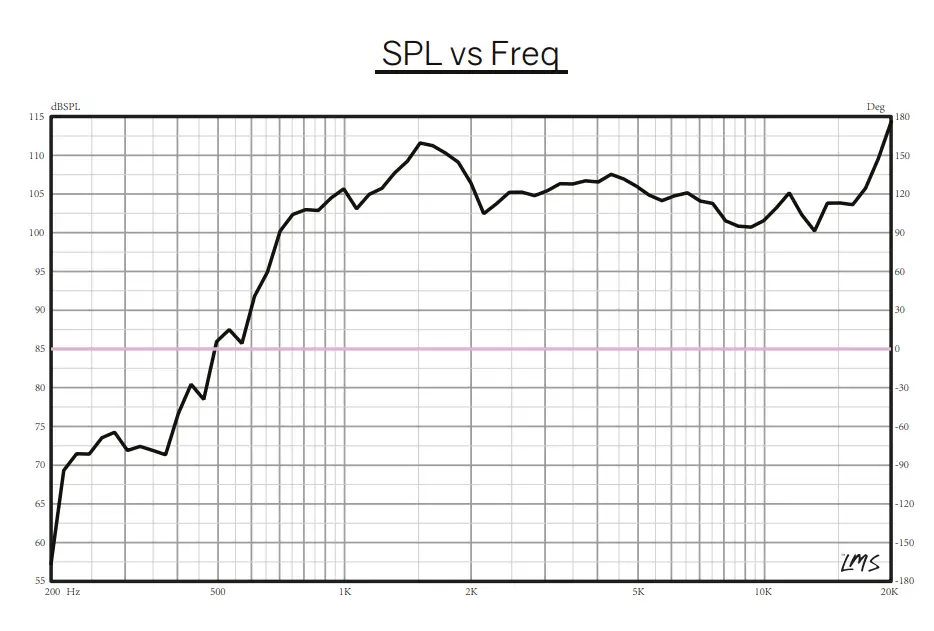

110 dB - Frequency Response
500Hz – 18 KHz - Recommended Hi Pass Crossover
600 Hz - Voice Coil Diameter
1.75’’ (44.5 mm) - Diaphragm Material
Titanium - Frame Material
Aluminum - Basket Material
Aluminum - Magnet Material
Neodymium - Winding Material
Pure Aluminium Ribbon Wire

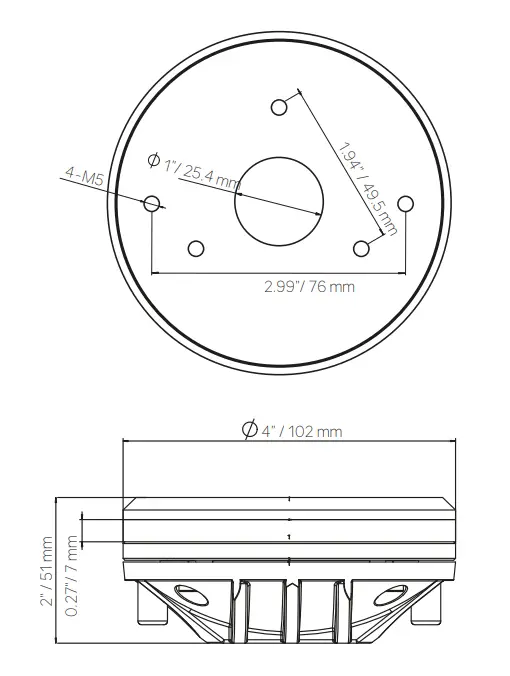

Measurements
- Overall Depth
2” (51 mm) - Overall Width
4” (102 mm)
Shipping Info
- Gross Single Unit Weight
1.47 Kg - Single Unit Box Diamensions W x L x H
12 x 11 x 6.0 cm - Quantity of Units in Master Carton
6 PCS / CTN - Gross Master Carton Weight
10 Kg - Master Carton Dimensions W x L x H
37 x 22.5 x 6.5 cm
PRO-DRN1
- Throat Diameter: 1’’ (25.4mm)
- Mounting Type: Bolt-On
- Nominal Impedance: 8
- RMS Power Handling: 150 Watts
- MAX Power Handling: 300 Watts
- Sensitivity (1W/1M): 110 dB
- Frequency Range: 500 Hz – 18 KHz
- Diaphragm Material: Titanium
- Voice Coil Diameter: 1.75’’ (44.5 mm)
- Voice Coil Material: Pure Aluminum
- Magnet Material: Neodymium
