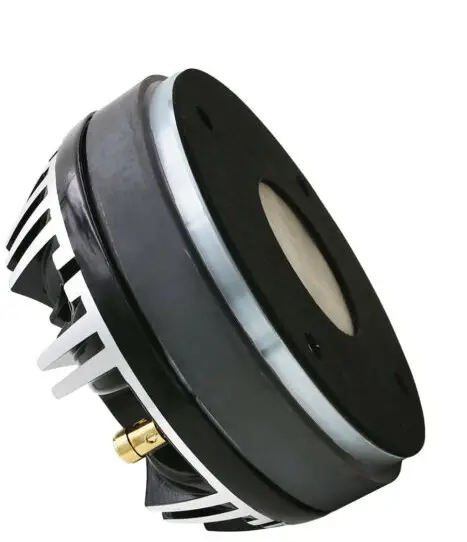

DS18 PRO-D1F Phenolic Compression Driver
PHENOLIC COMPRESSION DRIVER
- Throat Diameter: 2″
- RMS Power Handling: 150 Watts
- MAX Power Handling: 450 Watts
- Frequency Response: 500Hz-18KHz
- Voice Coil Diameter: 2.03″
- Diaphragm Material: PHENOLIC
- Nominal Impedance: 8 ohms
- Sensitivity (1W/1M): 110dB
- Magnet Weight: 35 oz
- Magnet Material: Ferrite
- Bolt Type: Bolt-on

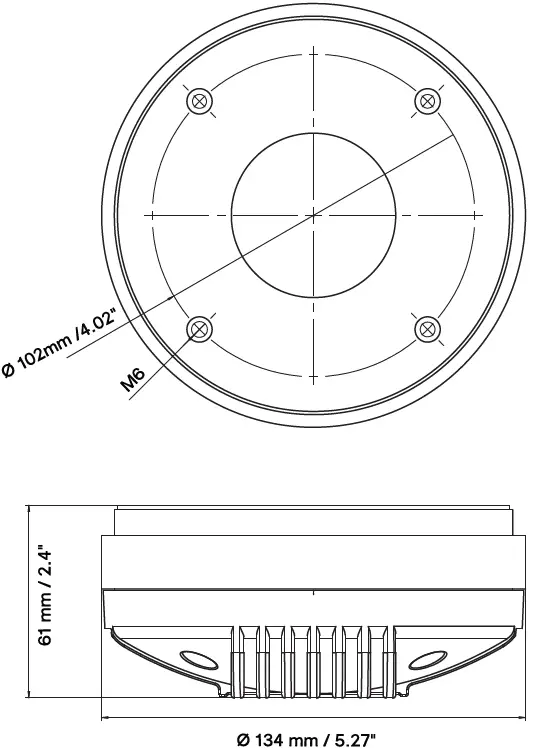

Dimension
Specifications
- Nominal Impedance. 8 ohms
- Throat Diameter 2″
- RMS Power Handling 150 Watts
- MAX Power Handling 450 Watts
- Sensitivity (1w/1m) 110dB
- Frequency Response 500Hz-18KHz
- Recommended Hi Pass Crossover 800Hz
- Voice Coil Diameter 2.03″
- Diaphragm Material PHENOLIC
- Magnet Material Ferrite
- Magnet Weight 35 oz
- Bolt Type Bolt-on
Measurements
- Overall Diameter 5.27″/ 134 mm
- Overall Depth 2.4″/ 61 mm
