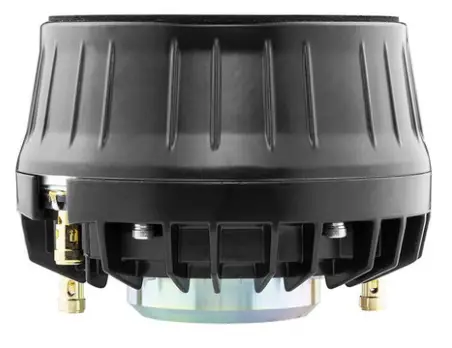

DS18 PRO-DRNCOAX Neodymium Polyester Mid-Driver Bullet Tweeter Coaxial Compression Driver

MEASUREMENTS

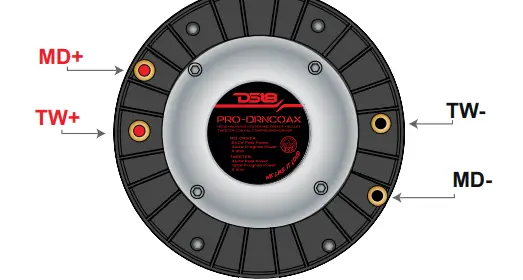

CONNECTORS

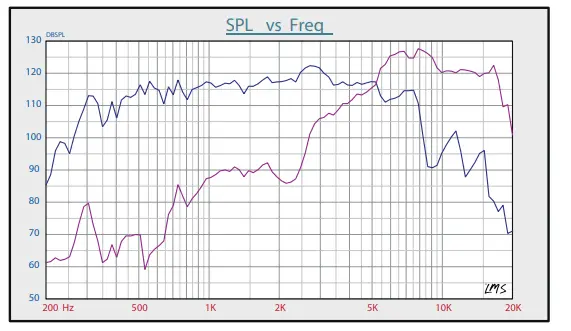

SPL VS FREQ GRAPHIC

GENERAL SPECIFICATIONS

• Throat Diameter ………………………………………………………………….2”/50.8mm
• Installation Type………………………………………………………………………….Bolt-on
• Sensitivity (1w/1m) ……………………………………………………………………… 118dB
• Frequency Response ……………………………………………………….315Hz-20KHz

MID-DRIVER SPECIFICATIONS

• Peak Power Handling …………………………………………………………………..640W
• Program Power Handling ……………………………………………………………..320W
• AES Power Handling ……………………………………………………………………160W
• Frequency Response ………………………………………………………315Hz – 20KHz
• Recommended Band-Pass Crossover…………………………………630Hz – 5KHz

TWEETER SPECIFICATIONS

• Peak Power Handling …………………………………………………………………..240W
• Program Power Handling ……………………………………………………………..120W
• AES Power Handling………………………………………………………………………60W
• Frequency Response ………………………………………………………. 4KHz – 20KHz
• Recommended Hi-Pass Crossover………………………………………………… 5KHz

MOTOR

• Tweeter Voice Coil Diameter……………………………………………..1.75””/44.4mm
• Mid-Drive Voice Coil Diameter ………………………………………………..3.5”/90mm
• Voice Coil Former Material ………………………………………………………….Kapton
• Winding Material ……………………………………………………………………….. CCAW
• Diaphragm Material ………………………………………………………………… Polyester
• Magnet Material…………………………………………………………………..Neodymium

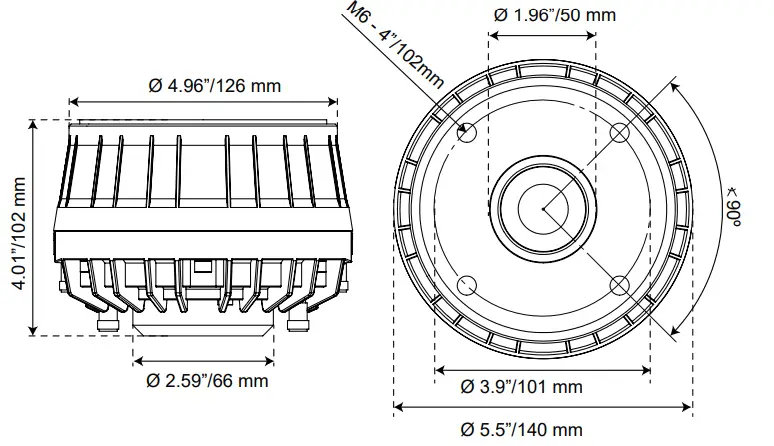

MEASUREMENTS

• Overall Diameter ………………………………………………………………..5.5”/140 mm
• Overall Depth …………………………………………………………………….3.9”/101 mm
• Bolt Pattern…………………………………………………………………….M6 – 4”/102mm
