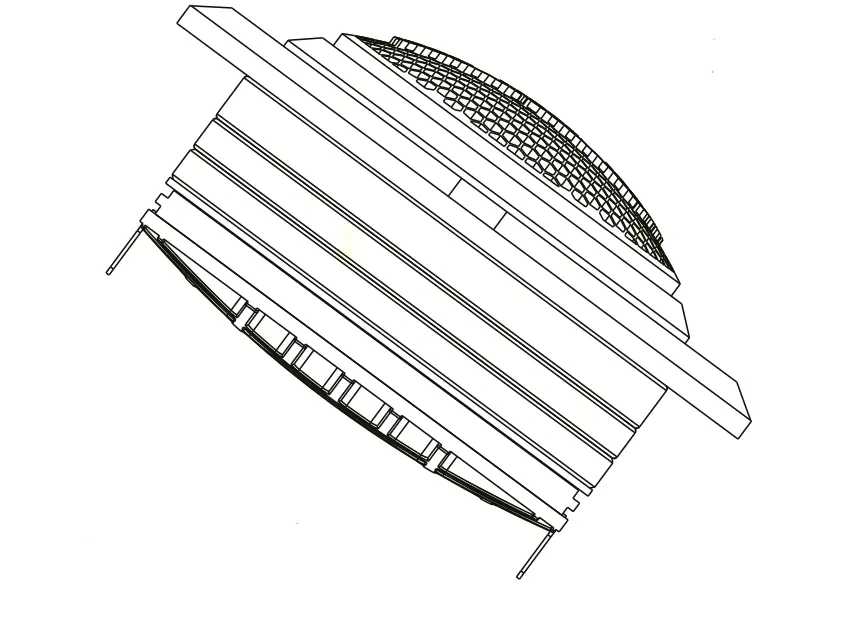

Ds18 Pro-twn5 3.6 Inch High Compression Hybrid Driver Tweeter Owner's Manual

DS18 PRO-TWN5 3.6 Inch High Compression Hybrid Driver TweeterPRO-TWN5SPECIFICATIONS

• Nominal Diameter;3.6″
• Nominal Impedance;4 OHMS
• Peak Power Handling;400W
• Program Power Handling;200W
• AES Power Handling;100W
• Sensitivity (1w/1m) ;107 dB

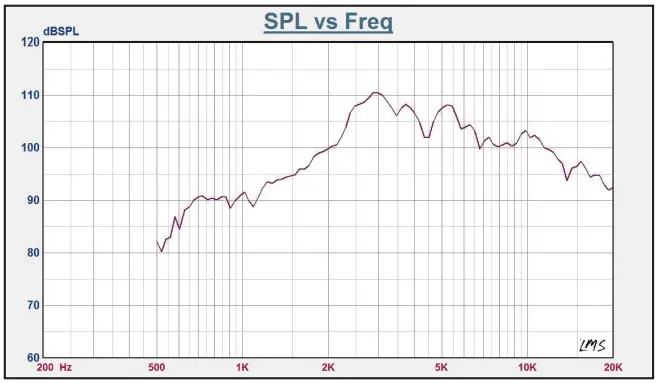

• Frequency Response ;1.5KHz – 20KHz
• Recommended Hi Pass Crossover;2 kHz

MOTOR

• Voice Coil Diameter;1.5″/37.8mm
• Voice Coil Former Material; KSV
• Winding Material; CCAR
• Diaphragm Material; PEN
• Magnet Material ;2.75″ X 0.2″
• Body Material; Aluminio
• Bullet Material; Aluminio CNC

MEASUREMENTS

• Overall Diameter;3.66″/93mm
• Overall Depth;2″/52.2mm
• Front Mount Baffle Cutout;2.75″/70mm
• Mounting Depth ;1.27″/32.3mm
