Ds18 Pro-twn4 3 Inch High Compression Hybrid Driver Tweeter Owner's Manual

PRO-TWN4
3” HIGH COMPRESSION HYBRID
DRIVER / TWEETER WITH 1” PEN
VOICE COIL AND NEODYMIUM MAGNET
OWNER’S MANUAL

PRO-TWN4 3 Inch High Compression Hybrid Driver Tweeter

SPECIFICATIONS

Nominal Diameter ………………………………………………………….3″
Nominal Impedance ………………………………………….4 OHMS
Peak Power Handling ……………………………..280W
Program Power Handling ………………140W
AES Power Handling …………………………………………70W
Sensitivity (1w/1m) ………………………………………..105 dB

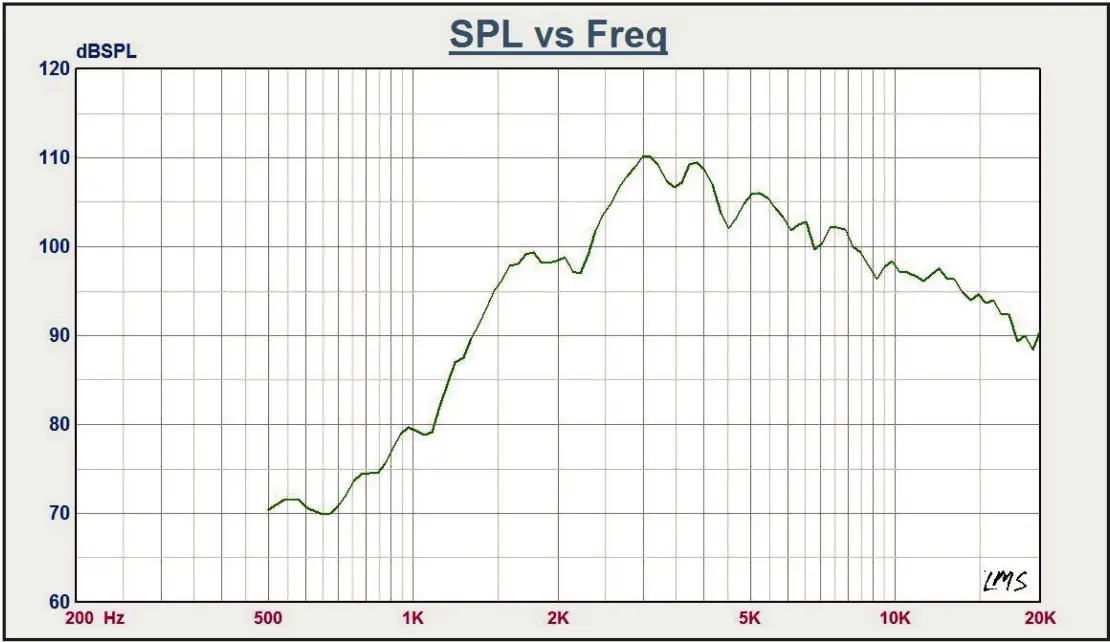

Frequency Response …………………1.5 KHz – 20 KHz
Recommended Hi Pass Crossover ..………2 KHz

MOTOR
Voice Coil Diameter ……………………..1″/25.4mm
Voice Coil Former Material ………………..KSV
Winding Material .……………………………………………..CCAR
Diaphragm Material …………………………………………..PEN
Magnet Material ………………………….Neodymium
Magnet Size …………………………………………………………..2″ X 0.2″
Body Material ………………………………..Aluminum
Bullet Material …………………CNC Aluminum

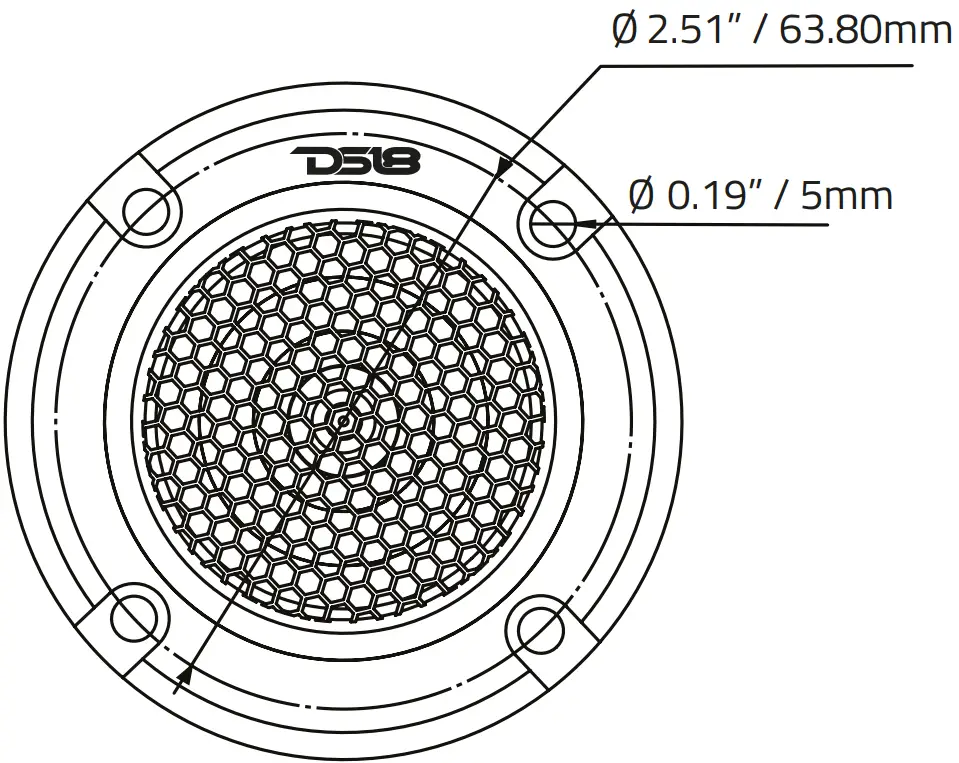

MEASUREMENTS
Overall Diameter ……………………………………………..2.95″/ 75mm
Overall Depth ………………………………………………1.81″/ 45.9mm
Mounting Depth ………………………………1.13″/ 28.7mm

WE LIKE IT LOUD
FOR MORE INFORMATION
PLEASE VISIT
DS18.COM
