Fisher Paykel LOGOWall Range Hood, 30″
QUICK REFERENCE GUIDE > ES-30_UB
Series 5 | Professional
Stainless Steel

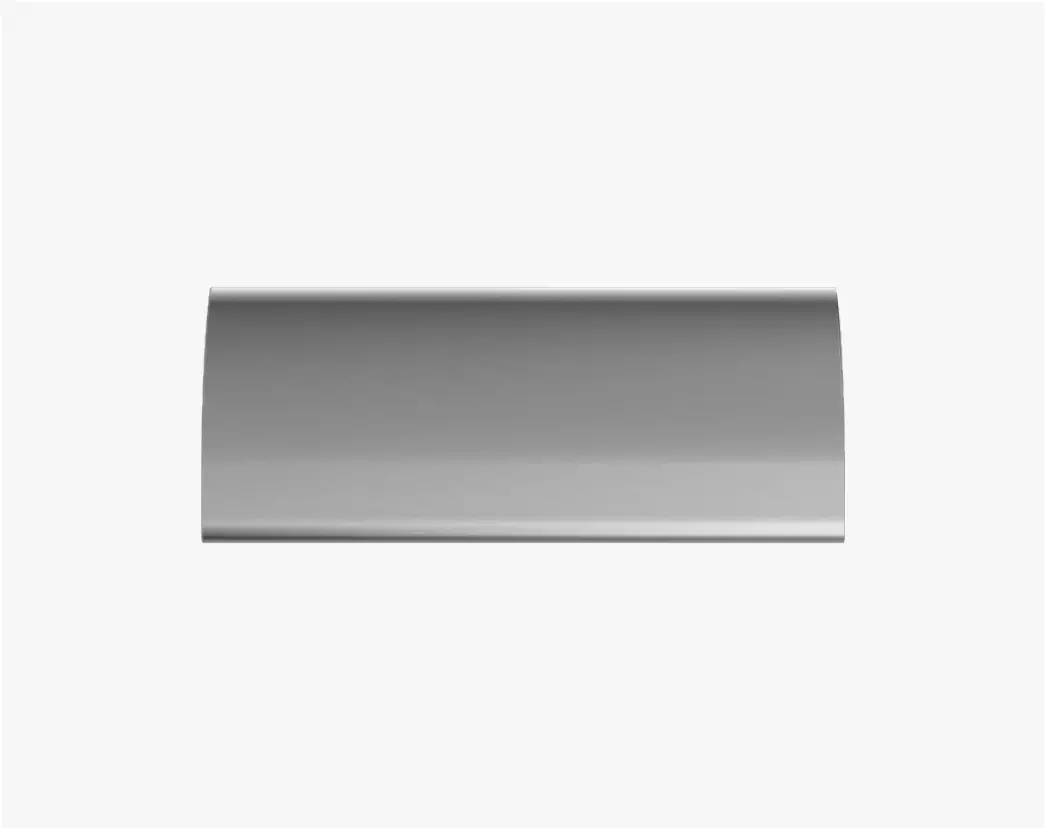

Fisher Paykel 30 Wall Range Hood Stainless Steel

A striking design that pairs well with any appliances in our Professional range. Fast, efficient extraction of steam and odors.

  • With four fan speeds, select the perfect extraction rate for your cooking
  • With dishwasher-safe stainless steel baffle filters
  • Powerful 600CFM maximum airflow

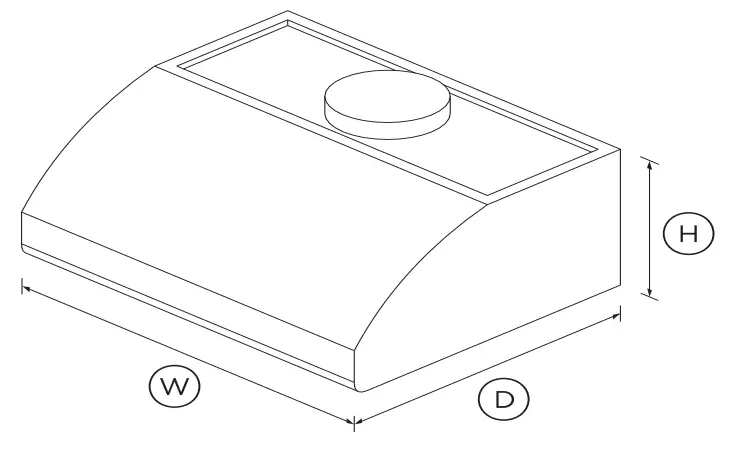

DIMENSIONS

Height ……………….12″
Width ………………..29 7/8″
Depth ………………..23″

Fisher Paykel 30 Wall Range Hood Stainless Steel - DIMENSIONS

FEATURES & BENEFITS

Design quality
The high-quality finish, premium grade stainless steel, and robust product design combine to deliver an efficient wall hood. This vent hood can also be installed within cabinetry.

Simple controls
A single on/off button makes the hood easy to use. Slider control lets you precisely adjust the fan speed up or down. Two-level halogen lighting effectively illuminates the cooking surface.
Easy cleaning
Filters effectively trap grease particles during extraction. They are easy to remove and dishwasher safe or can be cleaned by hand in hot soapy water.

Complimentary Design
The stainless steel finish is designed to match the rest of the Fisher & Paykel kitchen appliance family.

SPECIFICATIONS

Fan ratings
Maximum sound rating
71dBA
Performance
Extraction type
Fan speeds
Filter type
Surface
4
Stainless Steel Baffle
Power requirements
Rated current
Supply frequency
Supply voltage
15A
60Hz
120V
Product dimensions
Depth
Height
Width
23″
12″
29 7/8″
Product information
Control type
Rotary switch
Ventilation features
Light type
Halogen
Warranty
Parts and labor
Limited 2 years
SKU50145

The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020

Other product downloads available at fisherpaykel.com
Fisher Paykel 30 Wall Range Hood Stainless Steel - Download User Guide
Fisher Paykel 30 Wall Range Hood Stainless Steel - Download Service & Warranty
Fisher Paykel 30 Wall Range Hood Stainless Steel - Download Installation Guide

Fisher Paykel 30 Wall Range Hood Stainless Steel - 247A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W www.fisherpaykel.com
