QUICK REFERENCE GUIDE > HC30PHTX1 N
Wall Range Hood, 30″,
Pyramid Chimney
Series 7 | Contemporary
Stainless Steel
User Guide

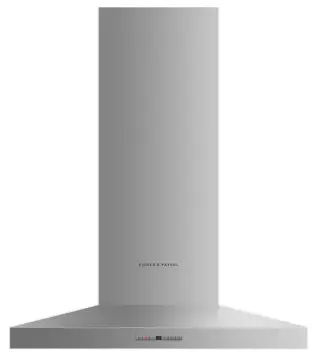

HC30PHTX1 N Wall Range Hood
The wall chimney range hood has a contemporary styling, extracting steam, grease and cooking odors quietly and efficiently.
- With four fan speeds, select the perfect extraction rate for your cooking
- Edge-to-edge extraction for increased performance
- Powerful 600CFM maximum airflow

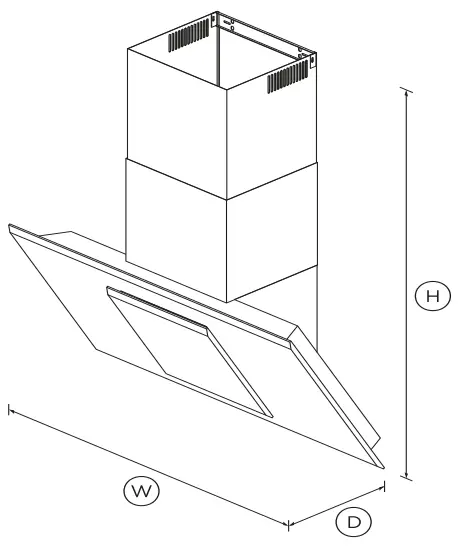

DIMENSIONS
| Height | 25 13/16 – 43 1/16″ |
| Width | 29 3/4″ |
| Depth | 19 11/16″ |
FEATURES & BENEFITS
QUIET AND EFFECTIVE
Odors can linger in the kitchen well after cooking is finished. This vent hood offers four fan speeds for powerful extraction to ensure steam and smells are quickly removed.
EASY INSTALLATION
This wall chimney vent hood is the perfect partner to your Fisher & Paykel cooktop. It can be either externally ducted or internally recirculated, making it perfect for apartments.
SIMPLE TO CLEAN
Three filters effectively trap grease particles during extraction.
They are easy to remove and dishwasher safe, or can be cleaned by hand in hot soapy water.
COMPLEMENTARY DESIGN
This wall chimney ventilation hood’s sleek stainless steel finish will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
| Accessories | |
| Ducting solution | • |
| Recirculation diverter | • |
| Fan ratings | |
| Maximum sound rating | 67dBA |
| Installation and cleaning | |
| Air outlet size | 6″ |
| Dishwasher safe filters | 2 |
| Stainless steel filter cover | • |
| Two piece height adjustable | • |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 4 |
| Filter type | Mesh |
| Power requirements | |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 19 11/16″ |
| Height | 25 13/16 – 43 1/16″ |
| Width | 29 3/4″ |
| Product information | |
| Control type | soft-touch button |
| Ventilation features | |
| Light type | LED |
| Timer function | • |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 50130 |
Other product downloads available at fisherpaykel.com
User GuideService & WarrantyInstallation GuideData Sheet Wall Range Hood
