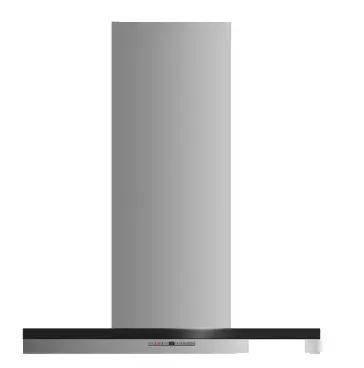

HC30DTXB2-N Wall Range Hood
User Guide
Stainless Steel and Glass
The wall chimney range hood has contemporary styling, extracting steam, grease and cooking odors quietly and efficiently.
- With four fan speeds, select the perfect extraction rate for your cooking.
- Energy-efficient LED lighting to illuminate your cooking surface
- with powerful 600CFM maximum airflow

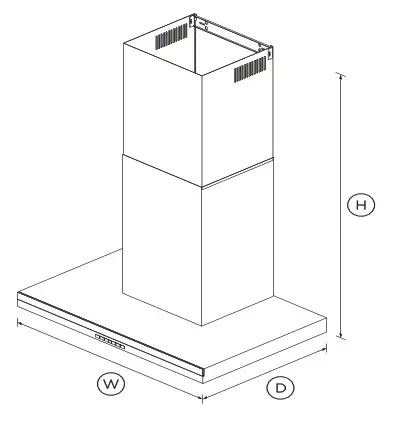

DIMENSIONS
| Height | 23 3/4 – 41 1/16″ |
| Width | 29 3/4″ |
| Depth | 19 11/16″ |
FEATURES & BENEFITS
Quiet and effective
This range hood features four fan speeds providing powerful extraction to quickly remove odors and steam. As odors can linger in the kitchen well after cooking is finished, the timer keeps the vent hood working for up to 15 minutes before automatically turning off.
Simple controls
This Fisher & Paykel chimney range hood features a sleek and easy-to-use soft-touch control panel. This range hood’s LED lights provide bright, warm, energy-efficient lighting ensuring the entire cooktop surface is illuminated.
Easy cleaning
The black glass and stainless steel finish is easily wiped clean. Multi-layered, dishwasher-safe filters trap grease effectively and can easily be removed for cleaning.
Complementary Design
This wall chimney vent hood’s sleek stainless steel finish will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
Accessories
| Chimney extension | 791774 |
| Light bulb | 792579 |
| Recirculation carbon filter | 791772 |
| Recirculation diverter | 792580 |
Fan ratings
| Maximum sound rating | 67dBA |
| Speed 3 sound rating | 63dBA |
Installation and cleaning
| Air outlet size | 6″ |
| Dishwasher safe filters | 2 |
| Ducted | Top extraction |
| Recirculation | Optional – top extraction |
| Stainless steel filter cover | • |
Performance
| Extraction type | Surface |
| Fan speeds | 4 |
| Filter type | Mesh |
| Number of filters | 2 |
Product dimensions
| Depth | 19 11/16″ |
| Height | 23 3/4 – 41 1/16″ |
| Width | 29 3/4″ |
Product information
| Control type | Soft-touch |
Ventilation features
| Light type | LED |
| Timer function | • |
Warranty
| Parts and labor | 2 years |
| SKU | 50083 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020.
