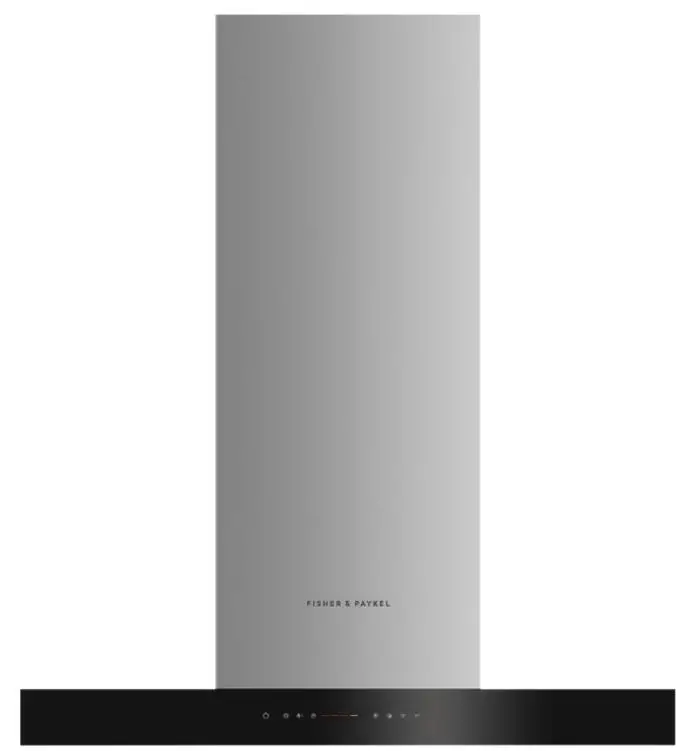

FISHER PAYKEL HC30DCXB4 Wall Range Hood
Product Information
The Fisher & Paykel HC30DCXB4 is a wall range hood with a contemporary design featuring a stainless steel and glass finish. It is equipped with perimeter extraction technology that helps to extract steam, grease, and cooking odors quietly and efficiently. The range hood has three fan speeds plus a boost function that allows you to select the perfect extraction rate for your cooking needs. It also features energy-efficient LED lighting to illuminate your cooking surface and has a powerful maximum air movement of 400CFM. The range hood is Wi-Fi enabled for notifications through the SmartHQTM app.
This Contemporary style range hood extracts steam, grease and cooking odors quietly and efficiently.
- With three fan speeds plus a boost function, select the perfect extraction rate for your cooking
- Energy-efficient LED lighting to illuminate your cooking surface
- Powerful maximum air movement of 400CFM
- Wi-Fi enabled for notifications through the SmartHQ™ app
Product Usage Instructions
Before using the Fisher & Paykel HC30DCXB4 range hood, ensure that it is properly installed according to the instructions provided in the user manual. You can either externally duct or internally recirculate the range hood, depending on your kitchen setup.
To use the range hood, follow these steps:
- Turn on the power supply to the range hood.
- Press the capacitive touch control panel to turn on the range hood.
- Select the desired fan speed and extraction rate using the touch panel or SmartHQTM app.
- Use the boost function for additional power when needed.
- Control the LED lighting using the touch panel or SmartHQTM app.
- After cooking, allow the range hood to run for up to 15 minutes to remove any lingering odors or steam.
- When it’s time to clean the filters, remove them from the range hood and wash them in the dishwasher. You can also wipe down the glass and stainless steel finish with a damp cloth.
Always refer to the user manual for specific instructions and safety guidelines when using the Fisher & Paykel HC30DCXB4 range hood.

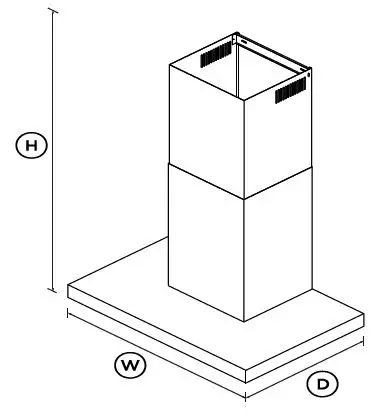

DIMENSIONS
- Height 23 3/4 – 41 1/16″
- Width 29 3/4″
- Depth 19 11/16″
FEATURES & BENEFITS
- QUIET AND EFFECTIVE
Featuring perimeter extraction, four fan speeds, and a boost function, this range hood provides powerful extraction to quickly remove odors and steam. Odors can linger in the kitchen well after cooking is finished so the timer keeps the hood working for up to 15 minutes before automatically turning off. - SIMPLE CONTROLS
The intuitive control panel responds to the touch of your finger. LED strip lighting illuminates the entire cooktop surface for the perfect sear or ideal reduction. Range hood settings, including temperature and fan speed, can be controlled via the SmartHQ™ app, with additional voice control options for fan speeds and lighting. - EASY CLEANING
Designed for simple removal, the filters are easy to clean and dishwasher safe, while the glass and stainless steel finish is easily wiped clean. The SmartHQ™ app will notify you when to clean the filter to ensure you get the best performance out of your range hood. - COMPLEMENTARY DESIGN
The stainless steel finish of this vent hood will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel kitchen appliance family. - EASY INSTALLATION
This range hood is the perfect partner to your Fisher & Paykel cooktop. It can be either externally ducted or internally recirculated, making it perfect for apartments.
SPECIFICATIONS
Accessories
| Chimney extension | 792492 |
| Recirculation carbon filter | 792481 |
| Recirculation diverter | 792560 |
Fan ratings
| Maximum air movement | 400CFM |
Installation and cleaning
| Air outlet size | 6″ |
| Dishwasher safe filters | 3 |
| Ducted | Top extraction |
| Recirculation | Optional – top extraction |
| Stainless steel filter cover | • |
Performance
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 3 |
Power requirements
| Rated current | 5.2A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
Product dimensions
| Depth | 19 11/16″ |
| Height | 23 3/4 – 41 1/16″ |
| Width | 29 3/4″ |
Product information
| Control type | Capacitive touch |
Ventilation features
| Auto-off/Run-on timer | • |
| Dimmable lights | • |
| Filter cleaning alert | • |
| Light type | LED |
| Timer function | • |
| Wi-Fi connectivity | • |
Warranty
| Parts and labor | 2 years |
| SKU | 50209 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020.
Other product downloads available at fisherpaykel.com.
