QUICK REFERENCE GUIDE > ES-30_UB
Wall Range Hood, 30″
Series 5 | Professional
Stainless Steel
Striking design that pairs well with any appliances in our Professional range. Fast, efficient extraction of steam and odors.
- With four fan speeds, select the perfect extraction rate for your cooking
- With dishwasher-safe stainless steel baffle filters
- Powerful 600CFM maximum airflow

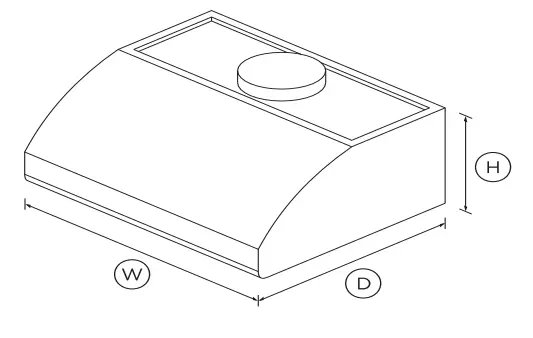

DIMENSIONS
| Height | 12″ |
| Width | 29 7/8″ |
| Depth | 23″ |
FEATURES & BENEFITS
Design quality
The high quality finish, premium grade stainless steel, and robust product design combine to deliver an efficient wall hood. This vent hood can also be installed within cabinetry.
Simple controls
A single on/off button makes the hood easy to use. A slider control lets you precisely adjust the fan speed up or down. Two level halogen lighting effectively illuminates the cooking surface.
Easy cleaning
Filters effectively trap grease particles during extraction. They are easy to remove and dishwasher safe, or can be cleaned by hand in hot soapy water.
Complementary Design
The stainless steel finish is designed to match the rest of the Fisher & Paykel kitchen appliance family.
SPECIFICATIONS
Fan ratings
| Maximum sound rating | 71dBA |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 4 |
| Filter type | Stainless Steel Baffle |
| Power requirements | |
| Rated current | 15A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 23″ |
| Height | 12″ |
| Width | 29 7/8″ |
| Product information | |
| Control type | Rotary switch |
Ventilation features
| Light type | Halogen |
Warranty
| Parts and labour | Limited 2 years |
| SKU | 50145 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
 | User Guide |
| Guide D’Utilisation |
| Service & Warranty |
| Installation Guide |
| Guide D’Installation |
