ROKK Wireless – Nest. (SC-CW-06F)

Installation Instructions

Use of the bracket with unapproved products, or overloading, invalidates any bracket warranty.

Contents hide

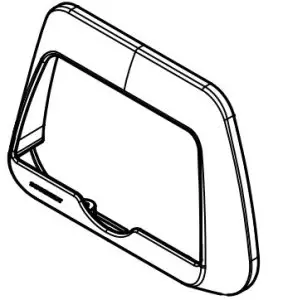

Charge/Storage pocket
Max phone size: 176mm (6.92”) x 92mm (3.62”)
(Including case)

Wireless charger SC-CW-01F

Input voltage range :
Input current max:
Output power:
Standby current draw:
Certifications:

10-30V DC (12/24V system)
2A
10W (9V, 1.1A)
< 0.2W
Qi, CE, UKCA, FCC, ROHS, UNECE R10 E24, RCM, IC, PSE

Waterproof rating: IPX6 front and back

Pocket x1	No6 (3.5mm) x 3/4” (19mm) self-tapping CSK Philips screw or mast sections outside the abo x4
Front bezel x1	3 x 10mm Pan head Philips Thread forming screw x5
SC-CW-01E-005 Wireless Charger x1	Drain Pipe 8mm (5/16”) internal diameter (Optional, not included) x1

READ THE IMPORTANT SAFETY INFORMATION LEAFLET BEFORE INSTALLING

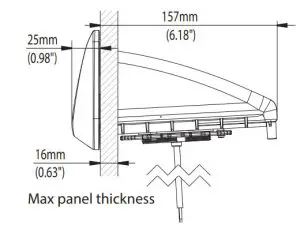

	1. Choose mounting location ensuring it is adequate space behind the mounting surface.

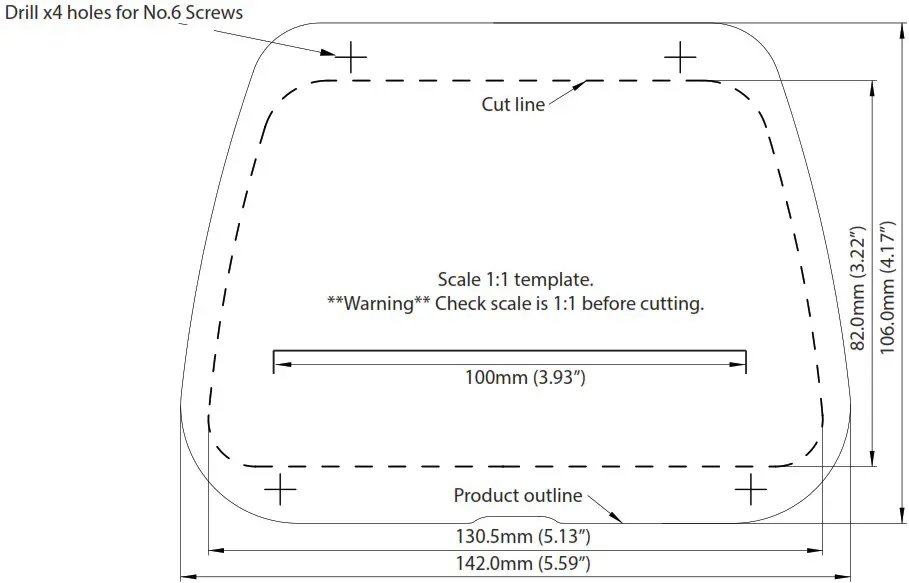

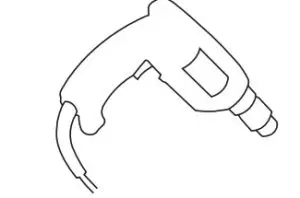

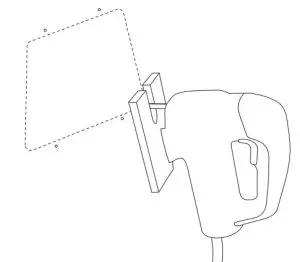

	2. Cut out holes and drill pilot holes using a paper template.

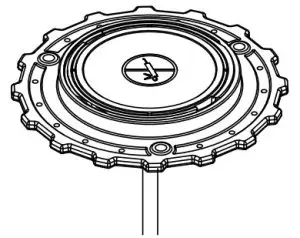

	3. Install wireless charger SC-CW-01E using x3 3mm x 10mm pan head Philips thread forming screws provided.

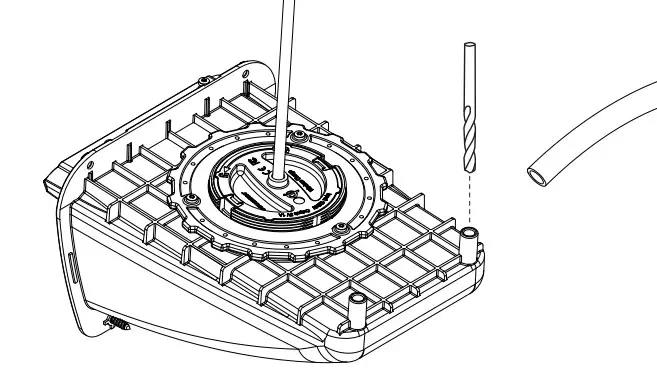

	4. Optional Drain Pipe: Carefully drill drain holes using 5mm (3/16”) drill bit. Attach drain pipe 8mm (5/16”) ID pipe, not included.

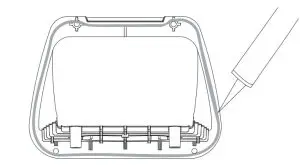

	5. Apply silicone sealant generously around the flange, ensuring good coverage around the perimeter.

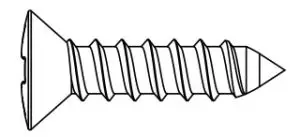

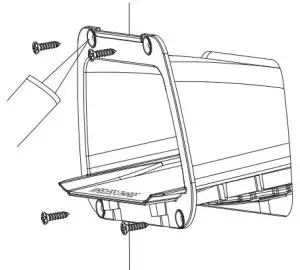

	6. Secure with x4 No6. (3.5mm) x 3/4” (19mm) Self-tapping CSK Philips screws provided. Add silicone sealant to screw holes.

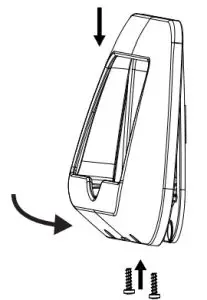

	7. Attach front bezel using x2 remaining 3 x 10mm Pan head Philips thread forming screws provided.

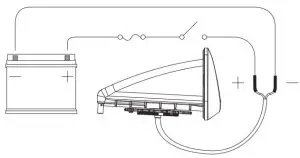

	8. Connect wires to 12/24V supply, ensuring a waterproof connection. Fuse according to input voltage and current.
