ROKK WIRELESS CHARGE HIDDEN 10W
(SC-CW-01F)

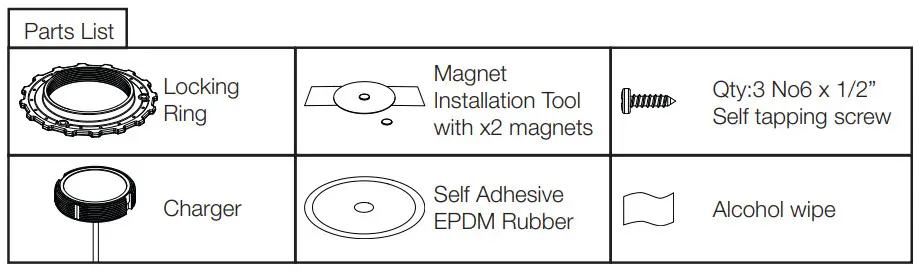

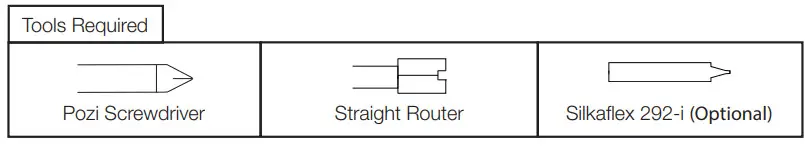

Installation Instructions
- If the mounting surface is thinner than 3mm go to step

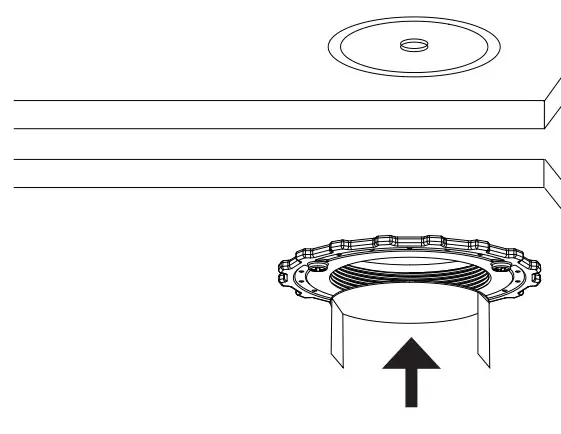

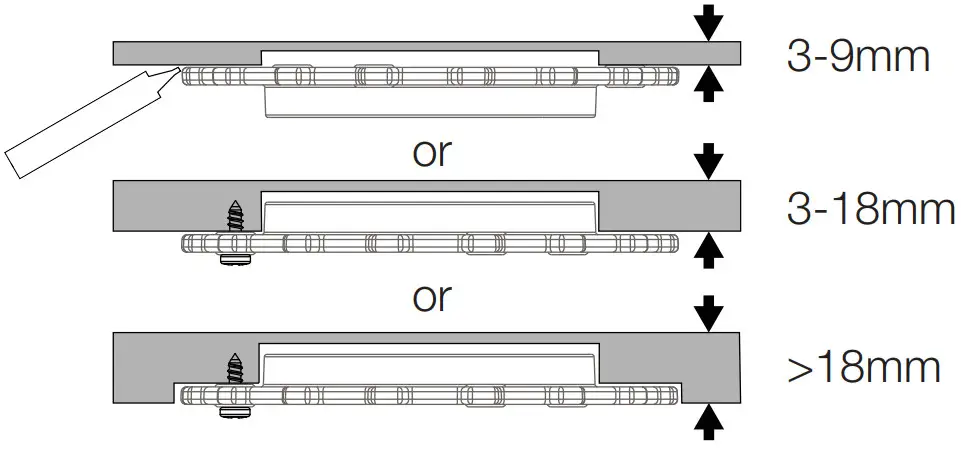

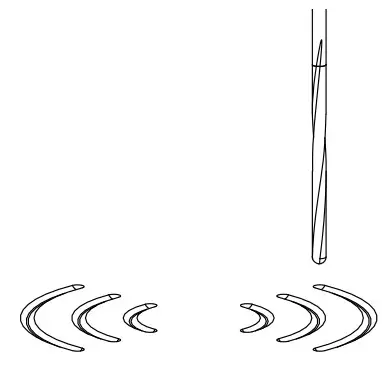

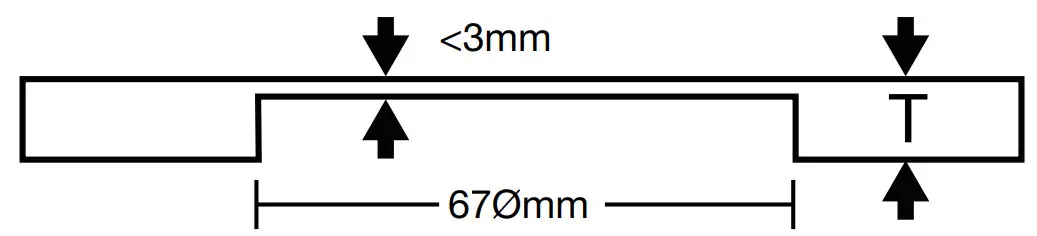

- If greater than 3mm, rout a pocket 67mm (2.6”) diameter till 3mm thickness is achieved. 2 Screw or bond locking ring in the correct orientation to the underside of the surface according to the measured material thickness (Sikaflex 292-i recommended).
- a Option 1 – CNC etches the logo onto the top surface. Do not exceed 0.5mm.
3b Option 2 – Use adhesive EPDM rubber and align with magnet tool provided. Use an Alcohol wipe to ensure the surface is free from dirt or grease

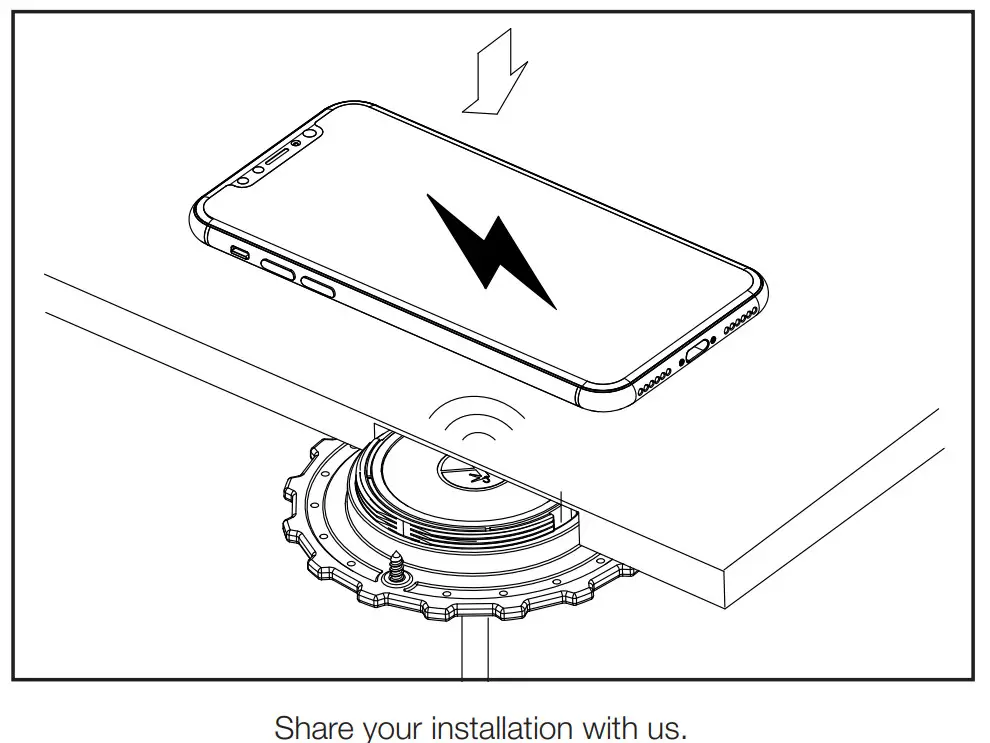

- Screw in the charger until firm, do not over-tighten. Do not use tools.

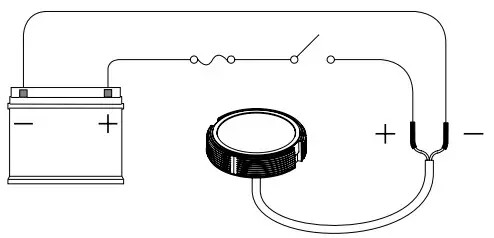

- Connect wires to 12/24V supply, ensuring a waterproof connection. Fuse according to the input voltage and current.
3b Option 2 – Use adhesive EPDM rubber and align with magnet tool provided. Use an Alcohol wipe to ensure the surface is free from dirt or grease
Technical Information
| Input voltage range | (1102MVDsCystem) |
| Input current max | 2A |
| Output power | lOW (9V, 1.1A) |
| Standby current draw | < 0.1W |
| Waterproof rating | IPX6 front and back |
| Certifications | Qi, CE, UKCA, FCC, ROHS, UNECE R10 E24, RCM |
READ THE IMPORTANT SAFETY INFORMATION LEAFLET BEFORE INSTALLING
UK & International
+44 (0)1392531280
[email protected]
For further installation and warranty information please visit: www.scanstrut.com
