Inbay Power 10w, 15w Wireless Charging Module Installation Guide

WIRELESS CHARGING
Wireless Charging Module
Power: 10W 241320-59-1
Power: 15W 241320-59-2
VW Polo (AW1) 09/2017>
VW Taigo (CS) 2021>

INSTALLATION GUIDE

Attention! A mounting frame (VW original part) has be ordered separately:
VW OEM part-no.: 2G1 864 981 A

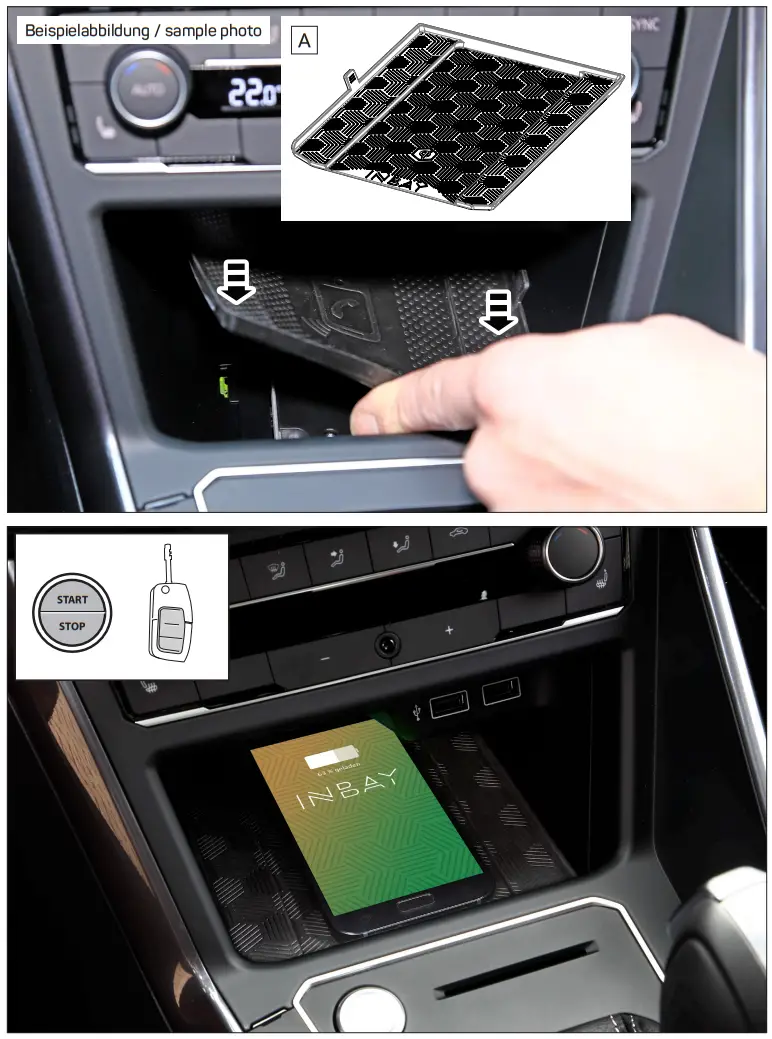

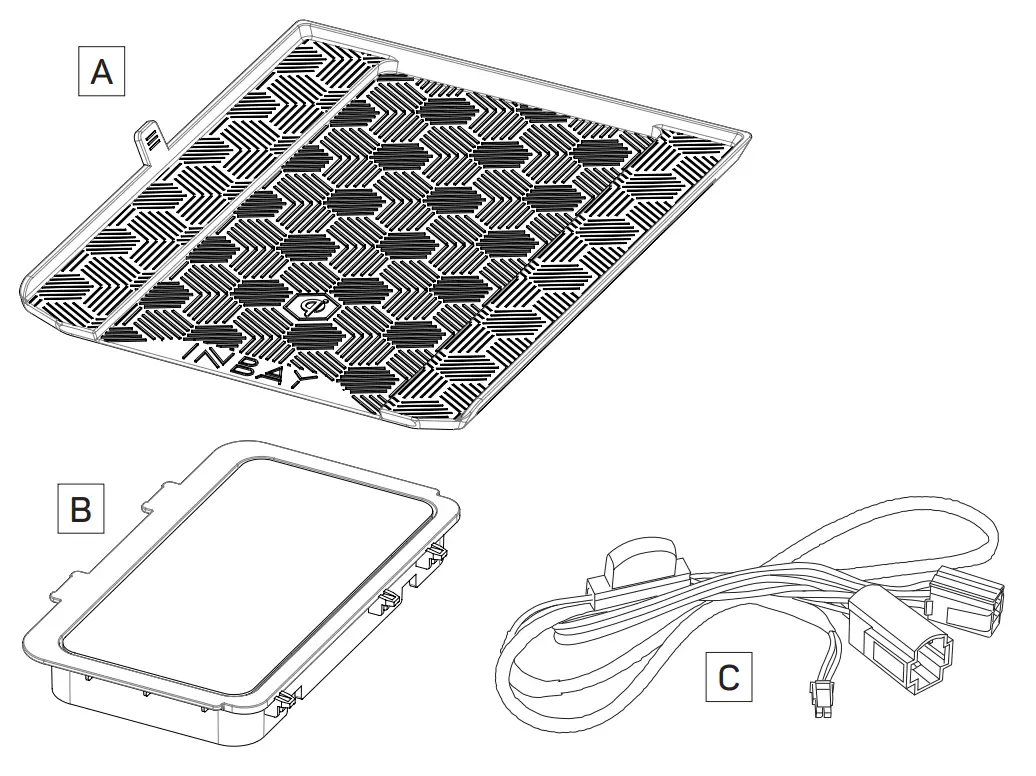

A anti-skid mat
B wireless charging subsystem 10W

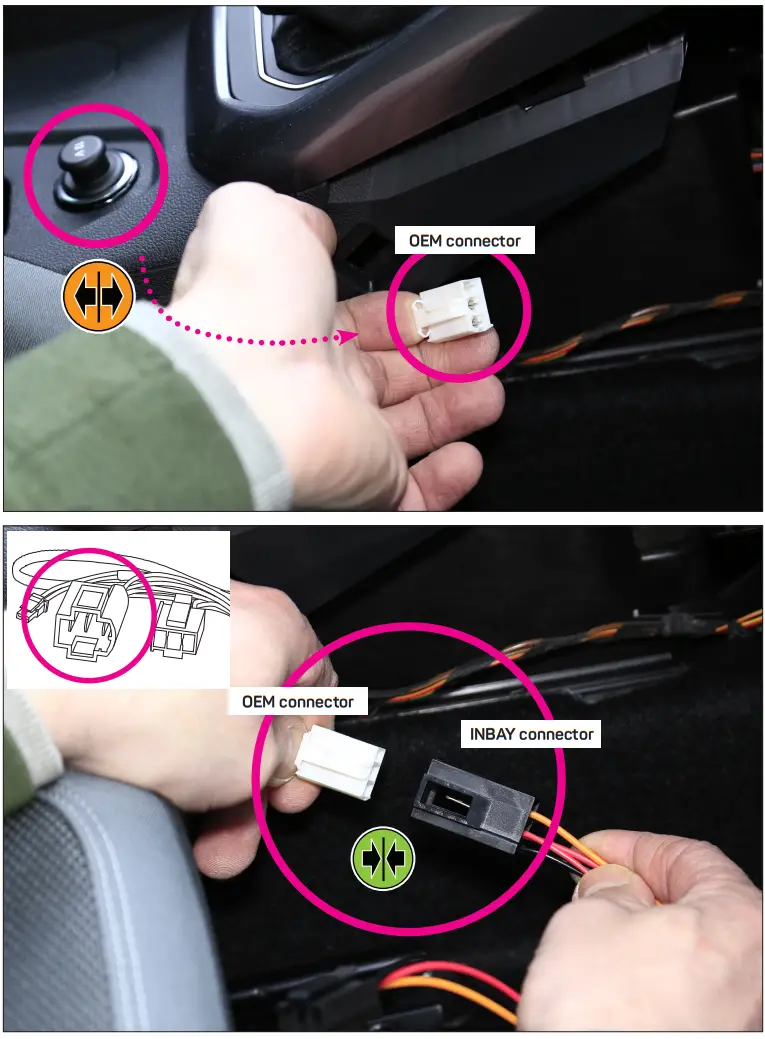

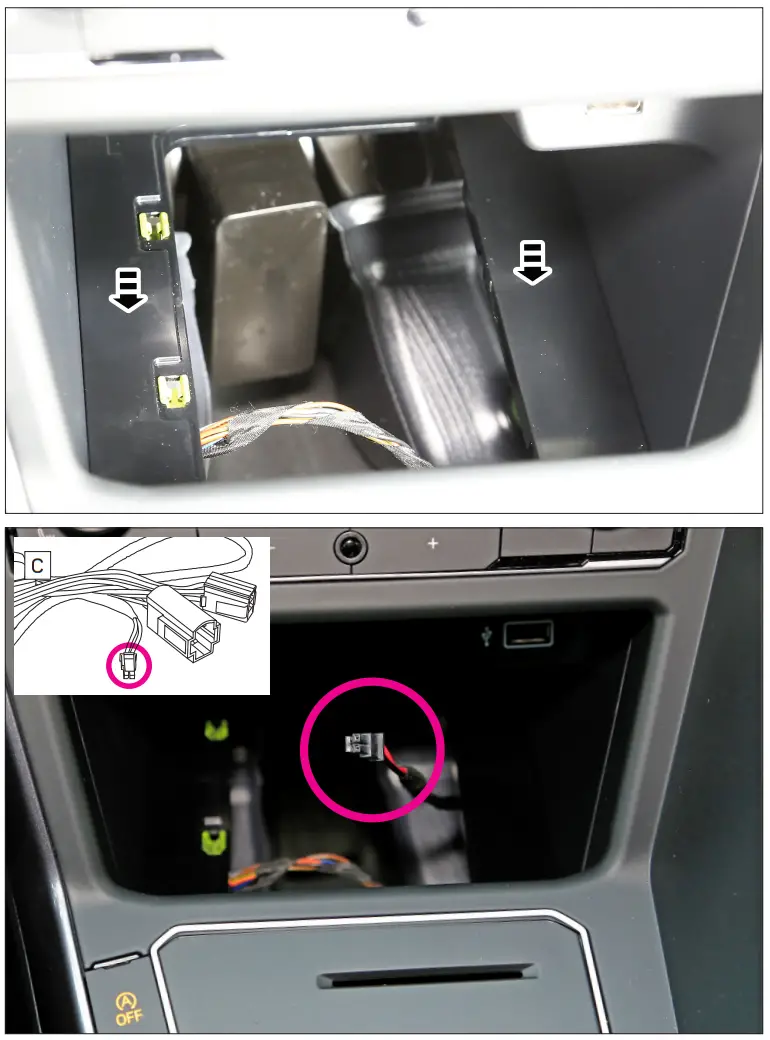

C Y-cable (connects to +12V socket)

An appropriate installation in observance of these operating instructions is necessary. Please make sure the wiring is arranged so it is not bended or crimped due to the risk of cable break. Make sure that all connections are correct. Route the cable away from moving parts, do not allow the cable to be entangled, pinched or damaged in any way.
We will not be liable for damage due to improper installation or utilization.
Use the specified accessory parts to prevent product failure.
Subject to technical modifications; no responsibility is accepted for the accuracy of this information.
The “Qi” symbol is a trademark of the “Wireless Power Consortium”

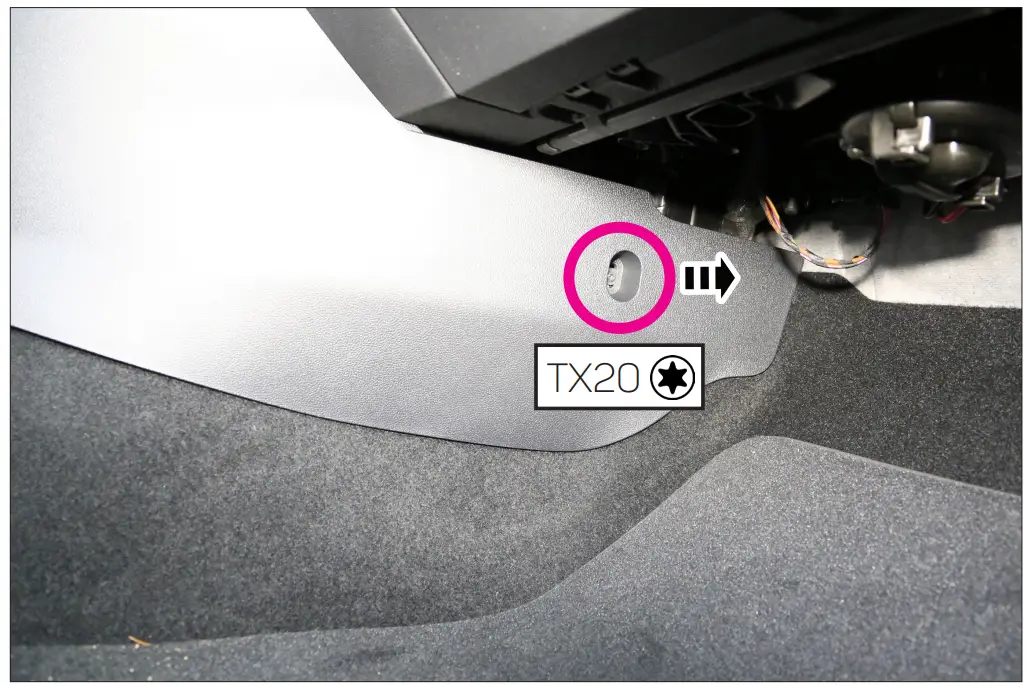

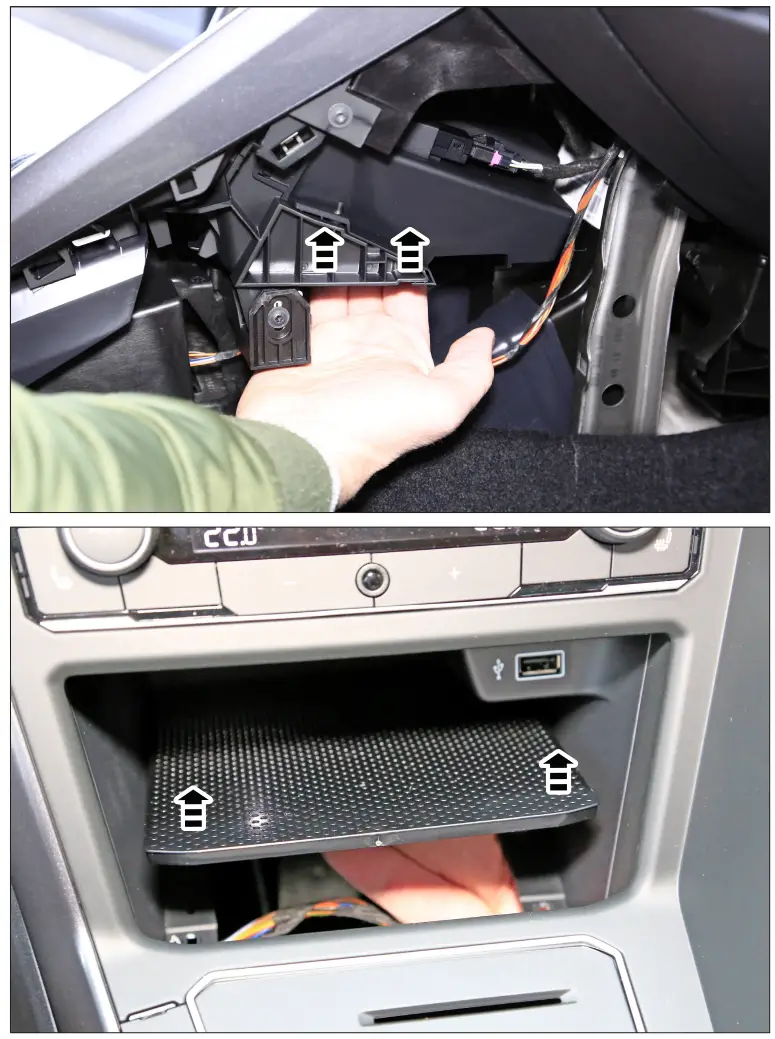

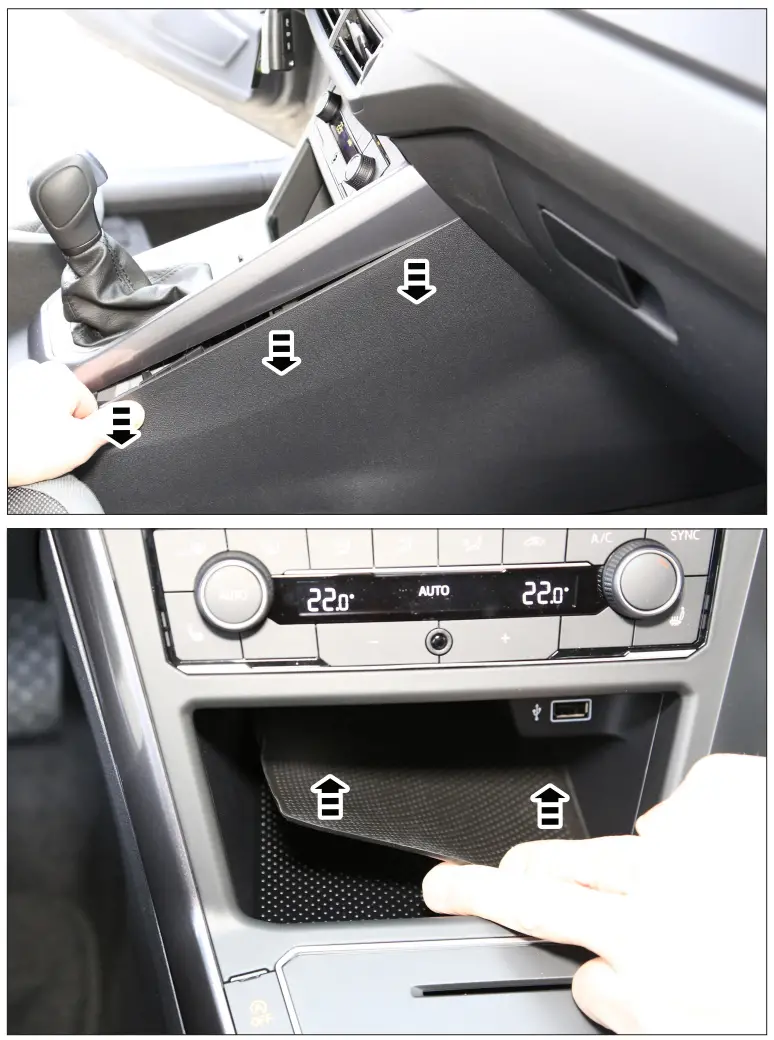

Install Manual

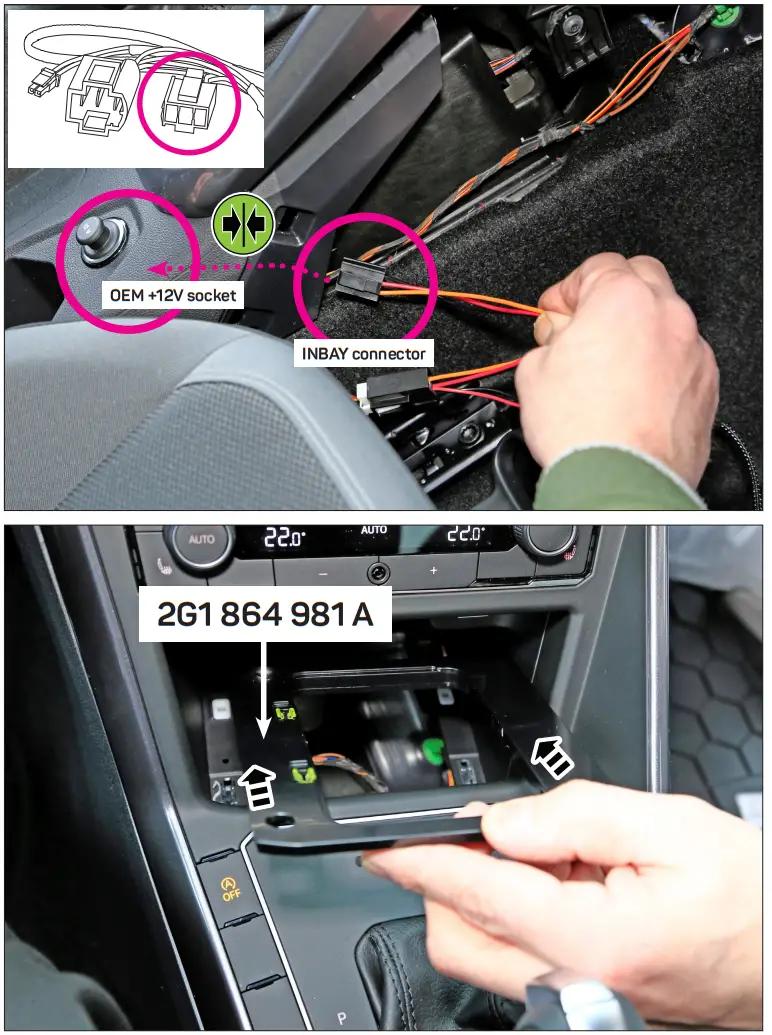

Attention! A mounting frame (VW original part) has be ordered separately:
VW OEM part-no.: 2G1 864 981 A

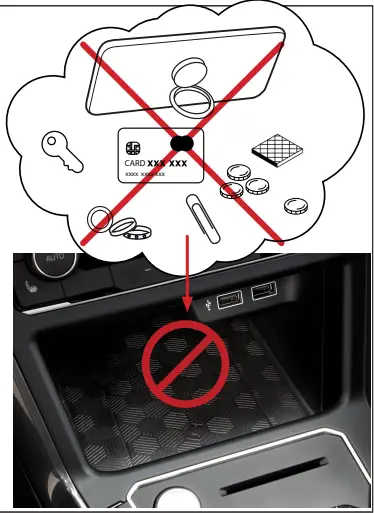

INTEGRATED FOREIGN OBJECT DETECTION (FOD)

IMPORTANT INFORMATION:
Please don‘t place any other objects such as coins, credit cards etc. onto the INBAY surface. Especially smartphones with attached ring stand holder must not be used! – otherwise the integrated Foreign Object Detection (FOD) will interrupt wireless charging for safetey reasons.

ATTENTION! After installation, devices/consumers with more than 5A / 60W shall not be operated on the +12V socket. Otherwise a risk of overvoltage can occur!

241320-59-1

241320-59-2

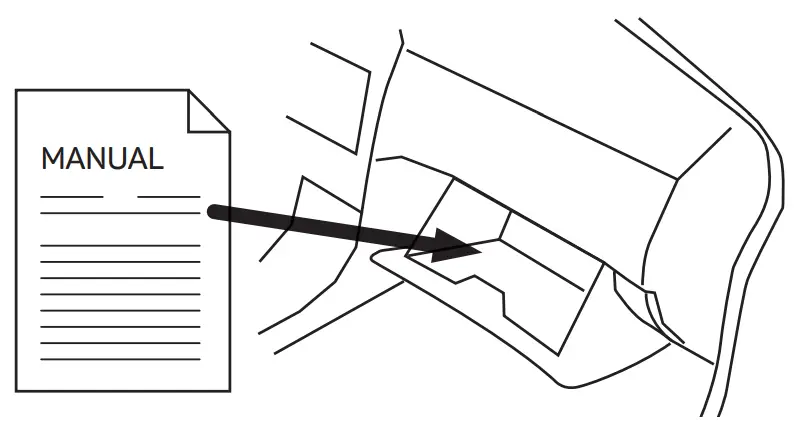

IMPORTANT! AFTER INSTALLATION THE MANUAL HAS TO BE PLACED INTO THE DASH BOARD OF THE CUSTOMER‘S CAR.

            © 2018 · acv GmbH · Straßburger Allee 10-12 · 41812 Erkelenz
www.inbay.systems
2021-06-22
