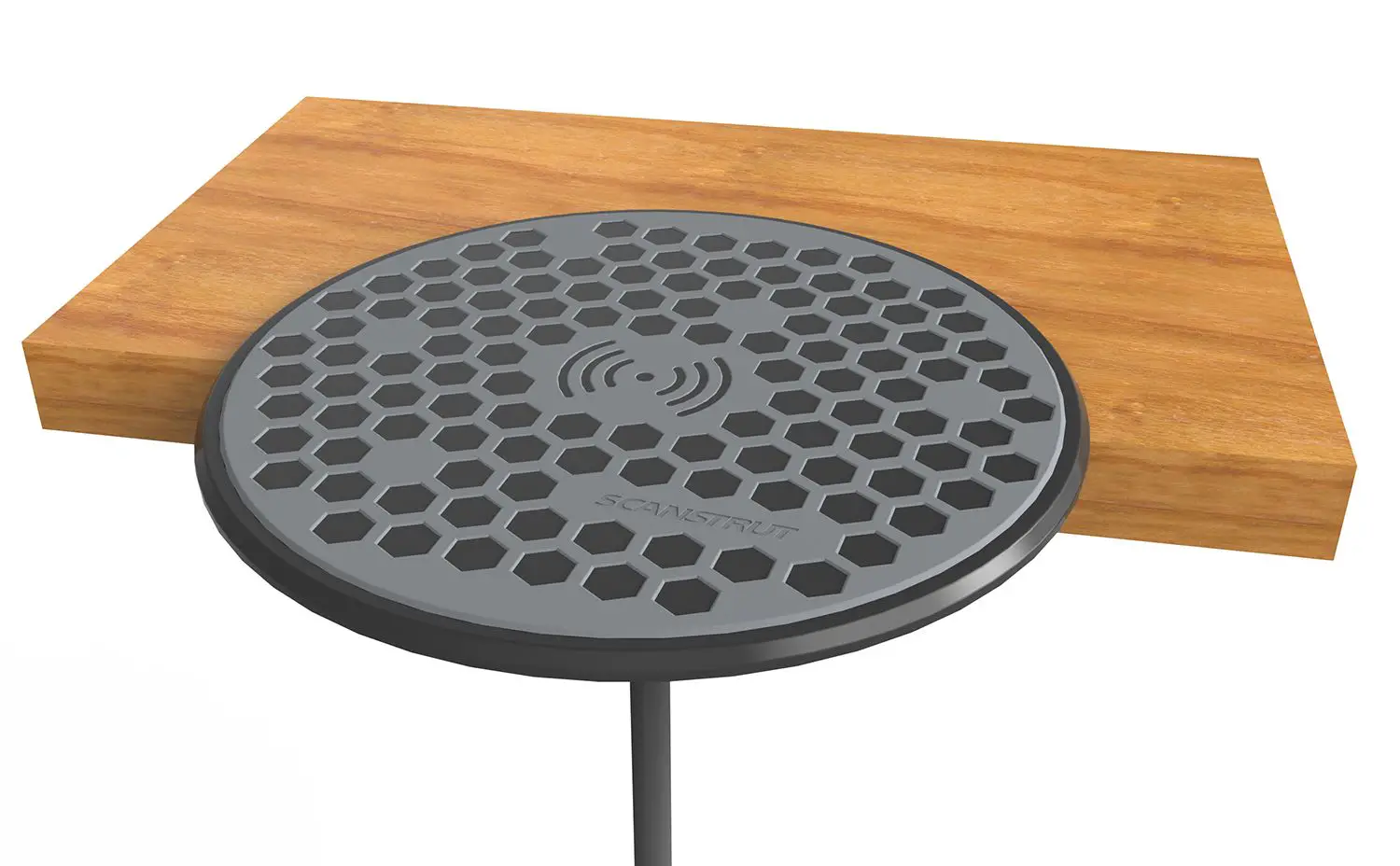

SCANSTRUT SC-CW-02F Rokk Wireless Charge Surface 10w
Parts List
- Charger
- Alcohol wipe
Tools Required
- 65mm (2.5”) Hole Saw
- Power drill
Technical Information
| Input voltage range | 10-30V DC (12 /24V system) |
| Input current max | 2A |
| Output power | 10W (9V, 1.1A) |
| Standby power draw | < 0.2W |
| Waterproof rating | IPX6 front and back |
| Certifications | Qi, CE, UKCA, FCC, ROHS, UNECE R10 E24, RCM, IC, PSE |
Installation Instructions
READ THE IMPORTANT SAFETY INFORMATION LEAFLET BEFORE INSTALLING

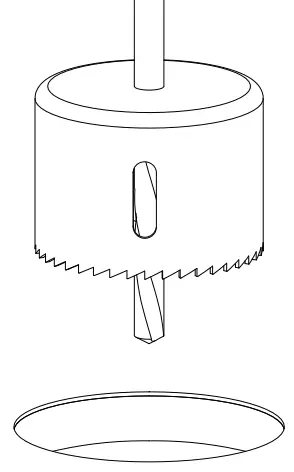

- Drill hole 64/65mm (2.5”)

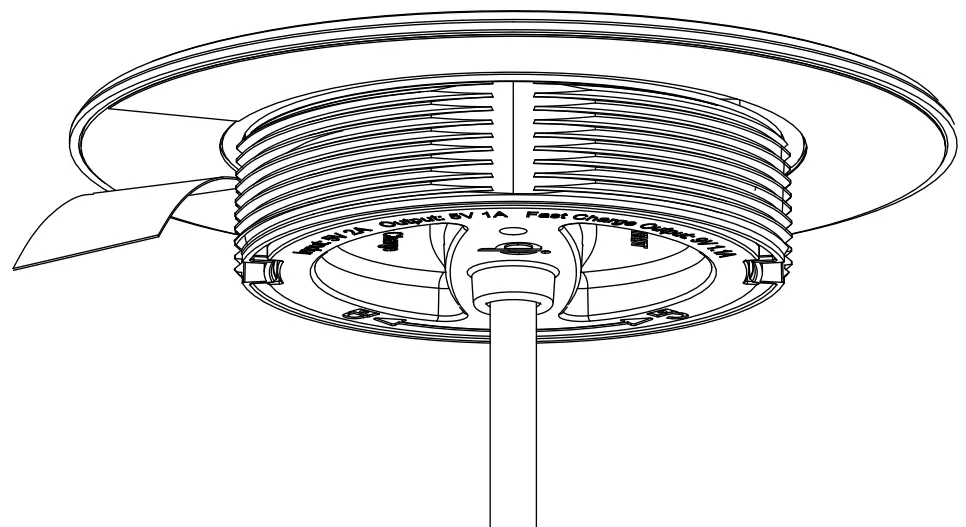

Panel thickness > 3mm (0.1”) - Remove self-adhesive backing

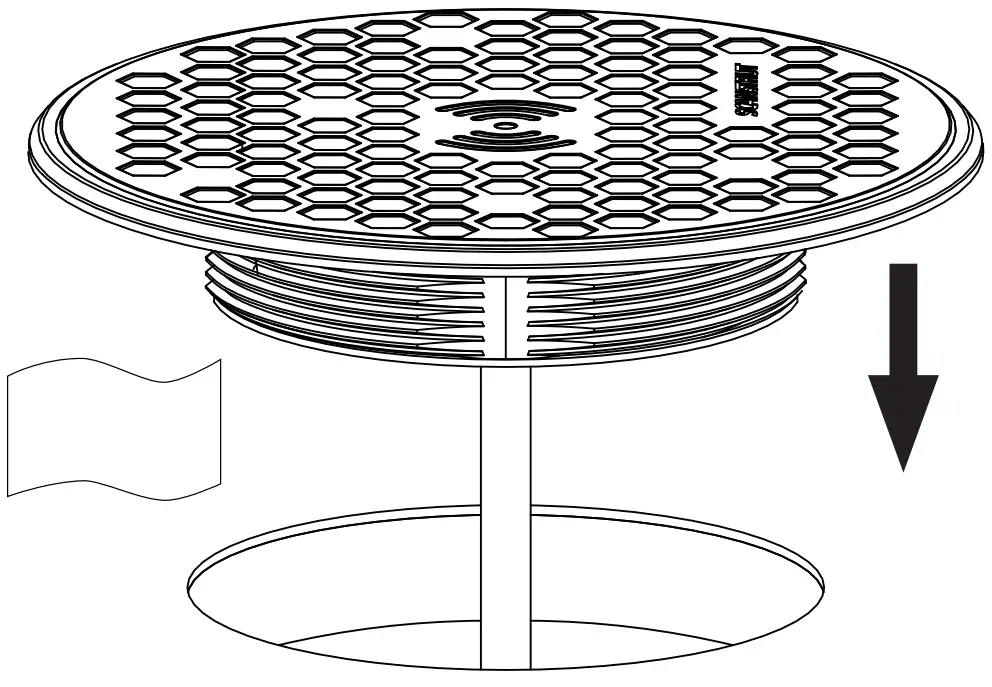

- Use alcohol wipe to ensure surface is free from dirt or grease and insert into hole.

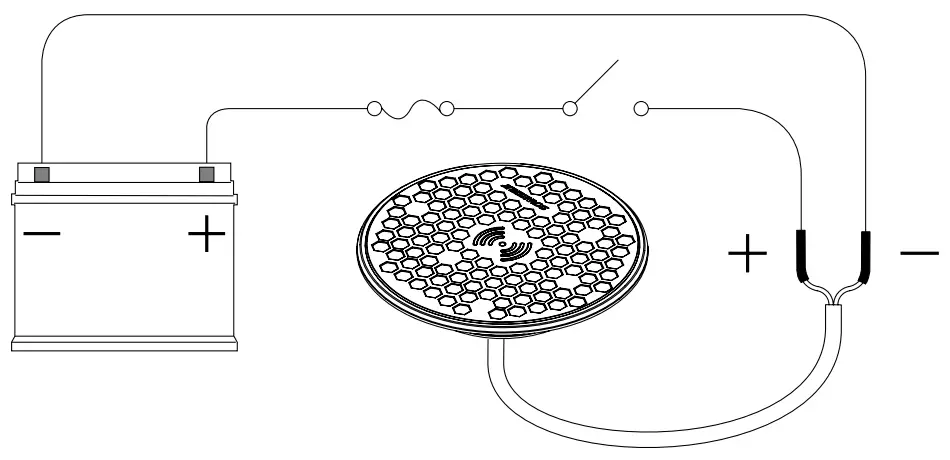

- Connect wires to 12/24V supply, ensuring a waterproof connection. Fuse appropriately according to input voltage and current.
